ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

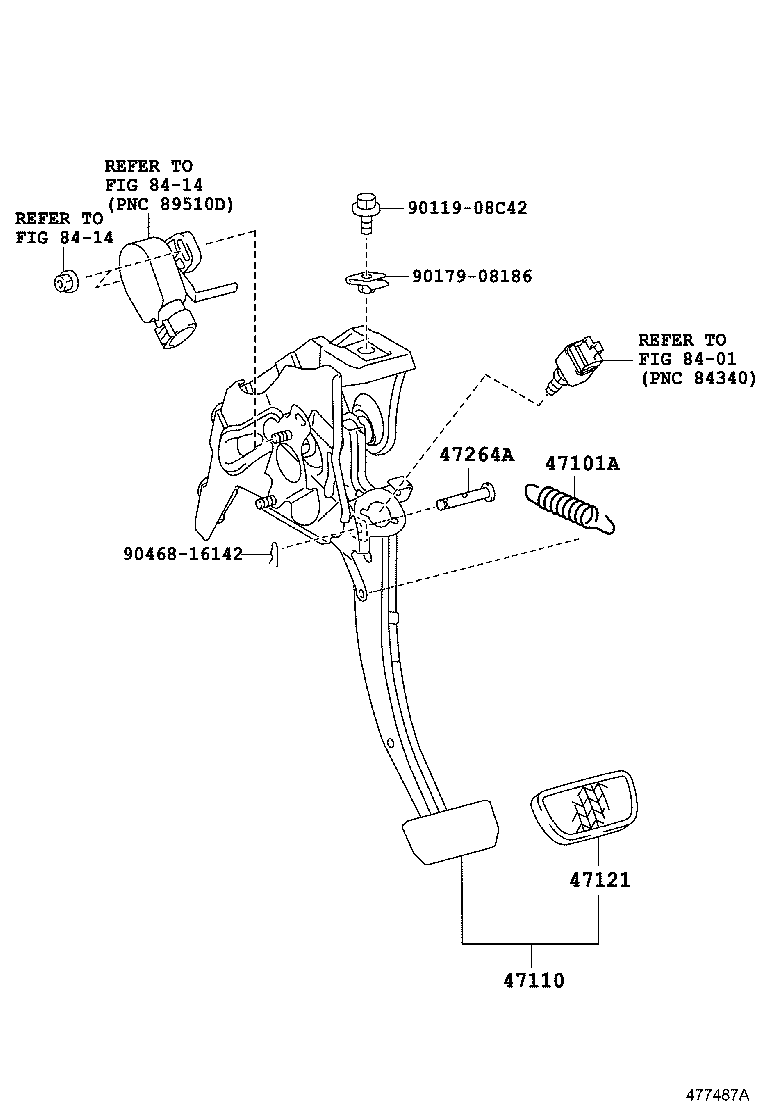

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14050 |
ZVW41 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-47090 |
ZVW41 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42010 |
ZVW41 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-47020 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-08186 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||
