ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

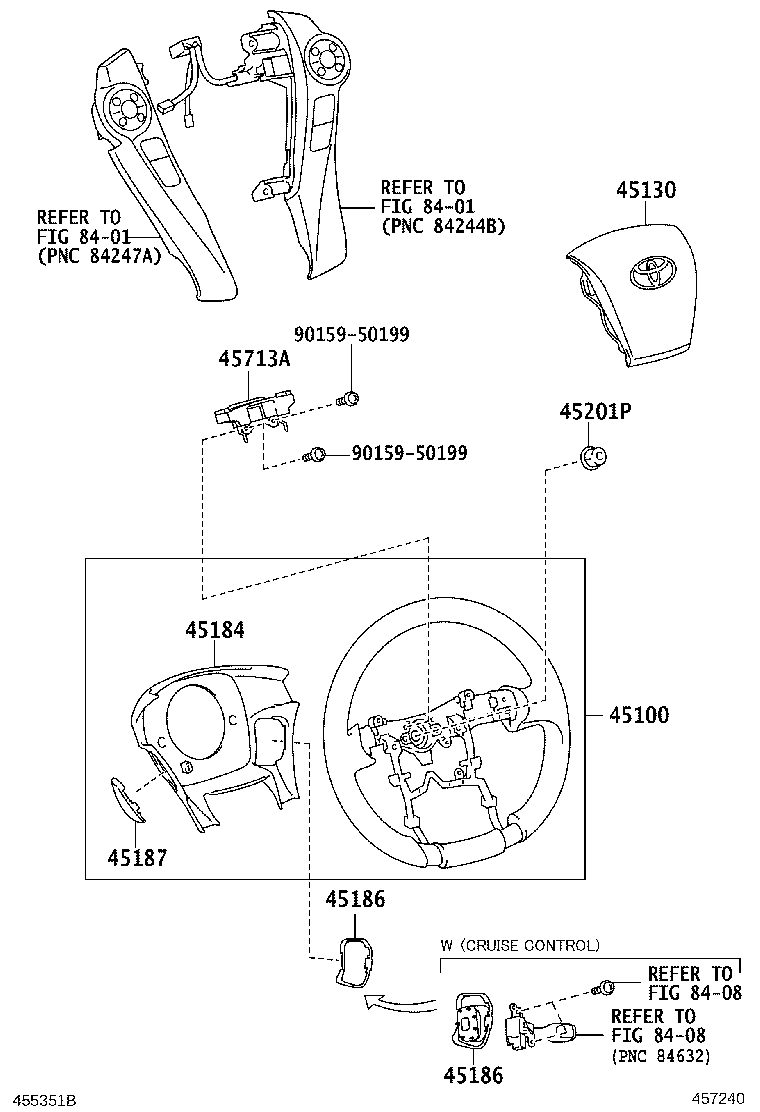

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45184 45186 45186 45187 45201P 45713A 8401 8401 8408 8408 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-47120C0

ZVW41

4-SPOKE,URETHANE,BLACK,TRIM1#,4#,6#

 1
45100-47150C0

ZVW41

4-SPOKE,LEATHER,STEERING WHEEL-4-SPOKE,SYNTHETIC LEATHER,BLACK,TRIM1#,4#,6#

 1
45100-47130C0

ZVW41

4-SPOKE,LEATHER,STEERING WHEEL-4-SPOKE,LEATHER,BLACK,TRIM1#,4#,6#

 1
45130 - BUTTON ASSY, HORN
45130-47110C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-47010C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-47030C0

ZVW41

CRUISE CONTROL-WITH,BLACK,TRIM1#,4#,6#

 1
45186-47020C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
45186-47030C0

ZVW41

CRUISE CONTROL-WITH(MICRO WAVE TYPE),BLACK,TRIM1#,4#,6#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-47030C0

ZVW41

CRUISE CONTROL-WITH,BLACK,TRIM1#,4#,6#

 1
45186-47020C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
45186-47030C0

ZVW41

CRUISE CONTROL-WITH(MICRO WAVE TYPE),BLACK,TRIM1#,4#,6#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-47010C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ZVW41

 1
45713A - DAMPER, STEERING SHAKE
45713-47030

ZVW41

 1
Common parts
90159-50199
Linked diagrams
8401
8408
