ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

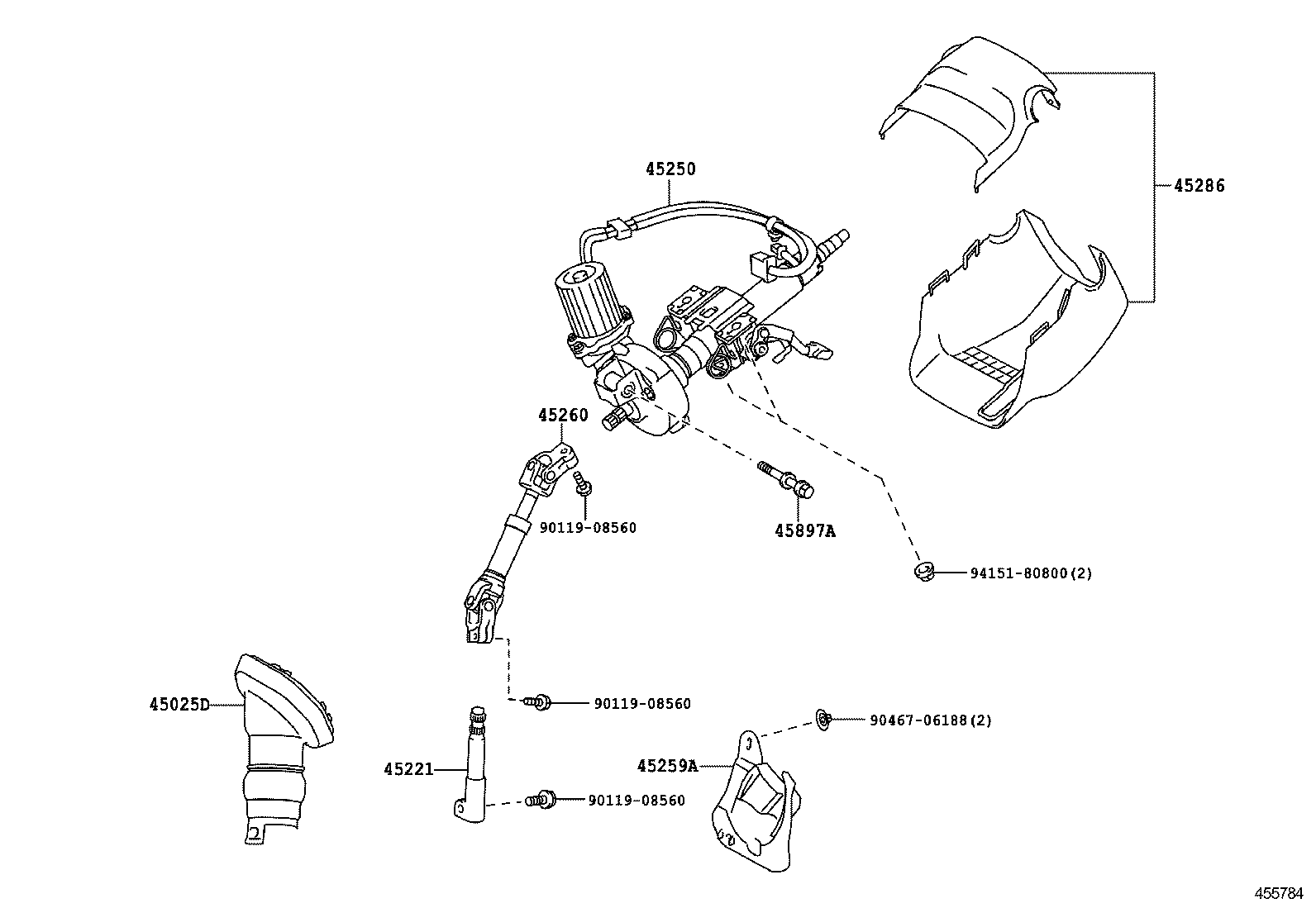

Click highlighted areas on diagram

diagram 45025D 45221 45250 45259A 45260 45286 45897A 9011908560 9011908560 9011908560 9046706188 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12300

ZVW41

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12330

ZVW41

 1
45250 - COLUMN ASSY, STEERING
45250-47300

ZVW41

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-47030

ZVW41

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12760

ZVW41

 1
45260-47080

ZVW41

 1
45286 - COVER, STEERING COLUMN
45286-12993C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

ZVW41

 1
45897-42010

ZVW41

 1
Common parts
90119-08560
90467-06188
94151-80800
