ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

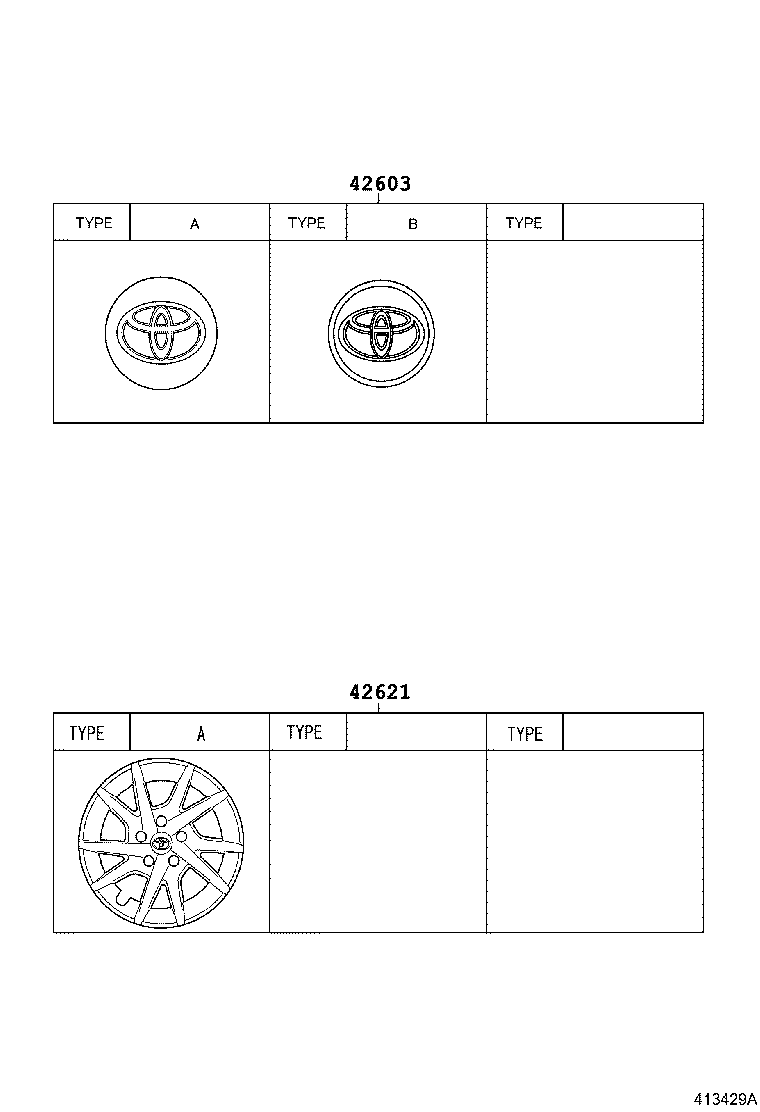

ILLUST NO. 2 OF 2(1109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12730 |
ZVW41 LX-TOURING PACKAGE&TIRE & DISC WHEEL-215/50R17 7J ALUMINUM,TYPE A:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-47090 |
ZVW41 TYPE A:REFER ILLUST. |
4 | ||

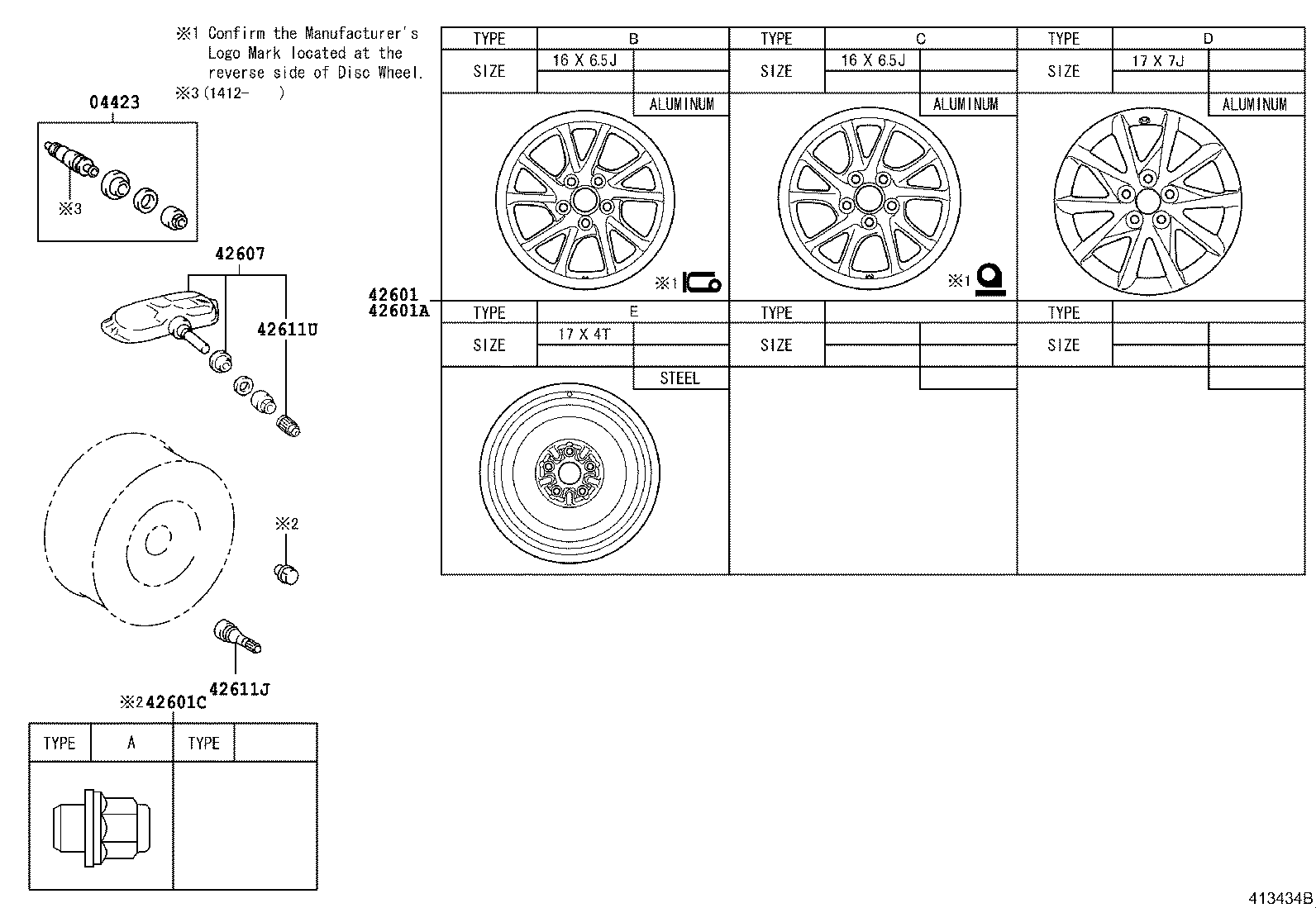

ILLUST NO. 1 OF 2(1109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33030 |
ZVW41 |
1 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-47230 |
ZVW41 16X6.5J, #,TYPE B:REFER ILLUST. |
4 | ||
| 42611-47250 |
ZVW41 17X7J, #,LX-TOURING PACKAGE,TYPE D:REFER ILLUST. |
4 | ||
| 42611-47240 |
ZVW41 16X6.5J, #,TYPE C:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-75100 |
ZVW41 17X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
ZVW41 TYPE A:REFER ILLUST. |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-33011 |
ZVW41 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ZVW41 |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05039 |
ZVW41 |
4 | ||
