ZVW41L-AXXEBA (2011)
Toyota Prius V
(1201- )

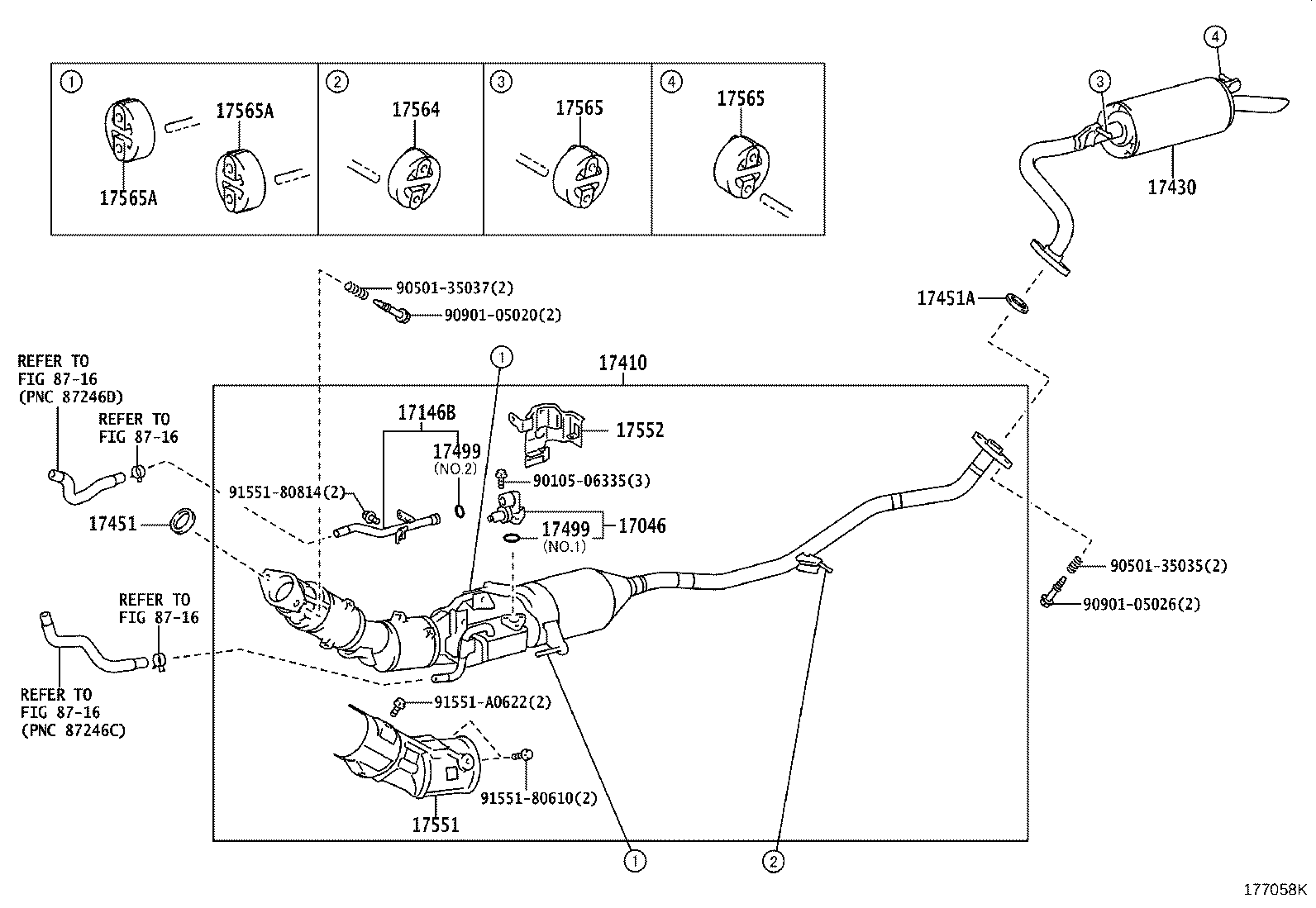

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-37030 |
2ZRFXE..ZVW41 |
1 | ||
| 17046-37091 |
2ZRFXE..ZVW41 |
1 | ||
| 17046-37092 |
2ZRFXE..ZVW41 |
1 | ||
| 17046-37090 |
2ZRFXE..ZVW41 |
1 | ||
| 17146B - PIPE, EXHAUST BY-PASS | ||||
| 17146-37030 |
2ZRFXE..ZVW41 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-37550 |
2ZRFXE..ZVW41 *114=TOYOTA/GP1TD6/Y |
1 | ||
| 17410-37553 |
2ZRFXE..ZVW41 *114=*408 |
1 | ||
| 17410-37551 |
2ZRFXE..ZVW41 *114=TOYOTA/GP1TD6/Y |
1 | ||
| 17410-37552 |
2ZRFXE..ZVW41 *114=*408 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-37480 |
2ZRFXE..ZVW41 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-28040 |
2ZRFXE..ZVW41 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-23042 |
2ZRFXE..ZVW41 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZVW41 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZVW41 NO.2 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZVW41 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZVW41 NO.2 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17055-37010 |
2ZRFXE..ZVW41 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17551-21030 |
2ZRFXE..ZVW41 |
1 | ||
| 17552-37020 |
2ZRFXE..ZVW41 |
1 | ||
| 17564 - SUPPORT,EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFXE..ZVW41 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZVW41 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZVW41 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2ZRFXE..ZVW41 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2ZRFXE..ZVW41 |
2 | ||
| Common parts | ||||
| 90105-06335 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-A0622 | ||||
| Linked diagrams | ||||
| 8716 | ||||
(1109-1201)

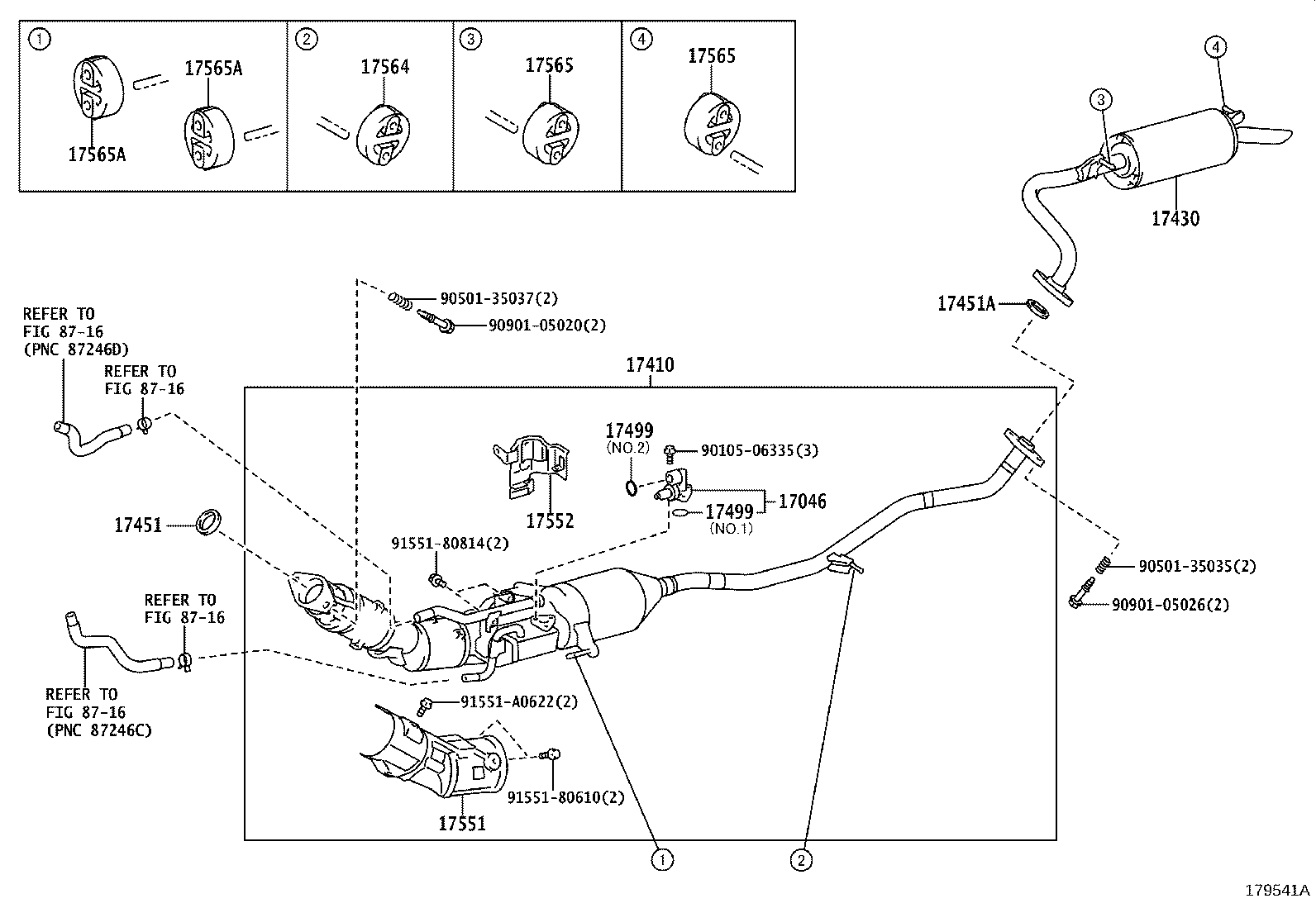

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-37030 |
2ZRFXE..ZVW41 |
1 | ||
| 17046-37091 |
2ZRFXE..ZVW41 |
1 | ||
| 17046-37092 |
2ZRFXE..ZVW41 |
1 | ||
| 17046-37090 |
2ZRFXE..ZVW41 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-37550 |
2ZRFXE..ZVW41 *114=TOYOTA/GP1TD6/Y |
1 | ||
| 17410-37553 |
2ZRFXE..ZVW41 *114=*408 |
1 | ||
| 17410-37551 |
2ZRFXE..ZVW41 *114=TOYOTA/GP1TD6/Y |
1 | ||
| 17410-37552 |
2ZRFXE..ZVW41 *114=*408 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-37480 |
2ZRFXE..ZVW41 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-28040 |
2ZRFXE..ZVW41 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-23042 |
2ZRFXE..ZVW41 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZVW41 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZVW41 NO.2 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZVW41 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZVW41 NO.2 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17055-37010 |
2ZRFXE..ZVW41 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17551-21030 |
2ZRFXE..ZVW41 |
1 | ||
| 17552-37020 |
2ZRFXE..ZVW41 |
1 | ||
| 17564 - SUPPORT,EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFXE..ZVW41 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZVW41 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZVW41 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2ZRFXE..ZVW41 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-28010 |
2ZRFXE..ZVW41 |
2 | ||
| Common parts | ||||
| 90105-06335 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-A0622 | ||||
| Linked diagrams | ||||
| 8716 | ||||
