ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

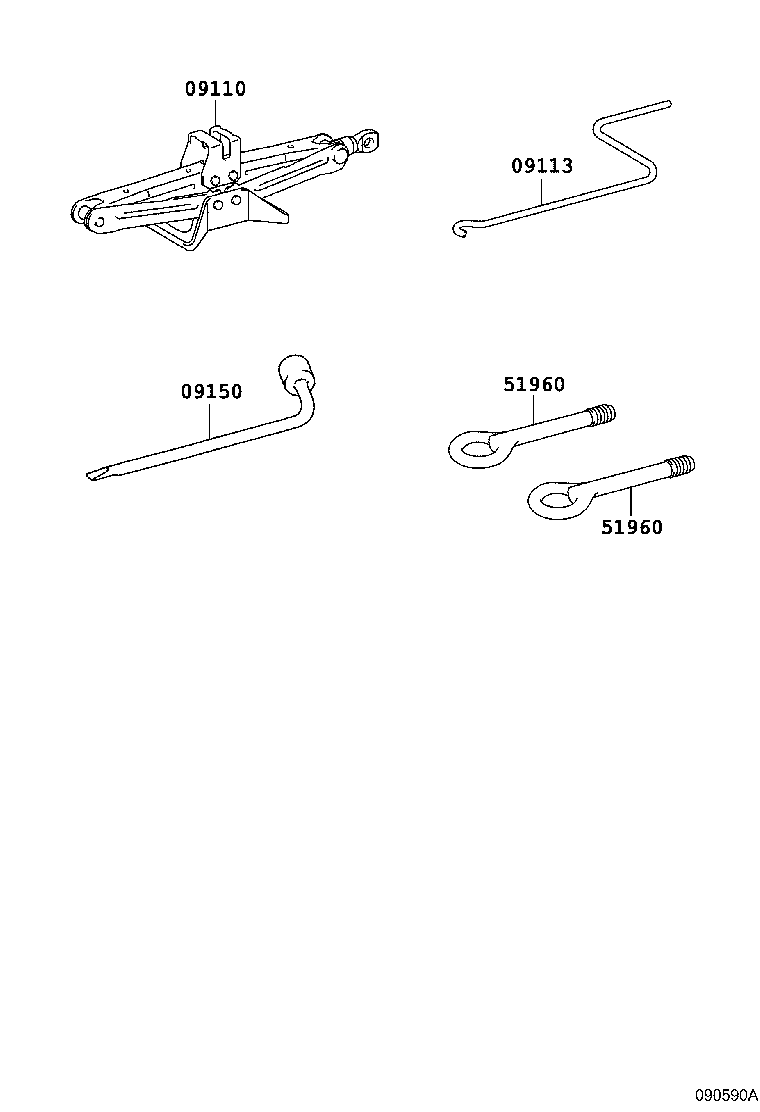

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-50080 |
ZVW41 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-52030 |
ZVW41 |
1 | ||
| 09113-52031 |
ZVW41 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
ZVW41 |
1 | ||
| 09150-35070 |
ZVW41 |
1 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51961-47020 |
ZVW41 |
2 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51961-47020 |
ZVW41 |
2 | ||
