NHP10L-AHXVBA (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

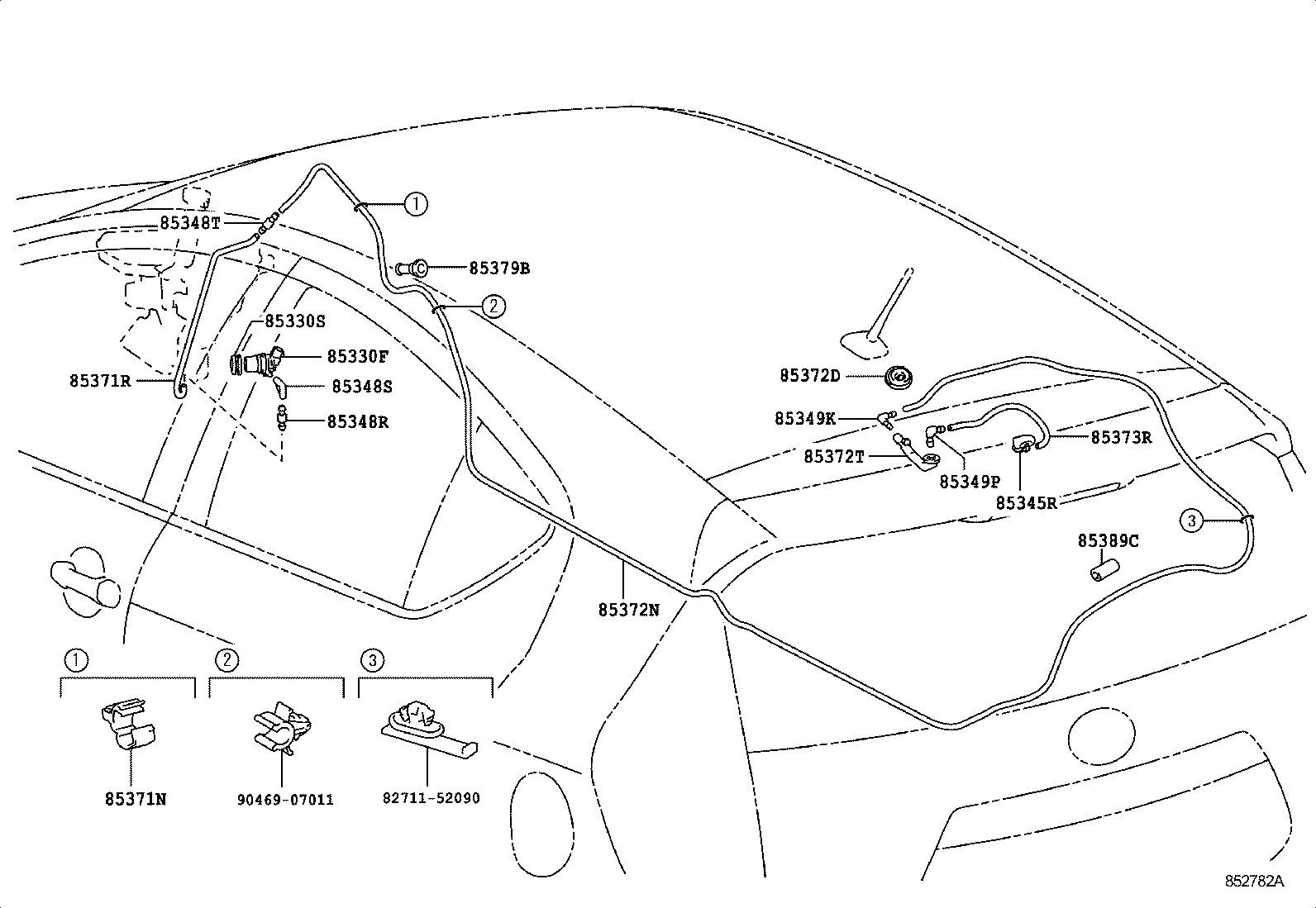

Click highlighted areas on diagram

diagram 8271152090 85330F 85330S 85345R 85348R 85348S 85348T 85349K 85349P 85371N 85371R 85372D 85372N 85372T 85373R 85379B 85389C 9046907011
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

NHP10..G,V

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

NHP10..G,V

 1
85345R - NOZZLE, REAR WASHER
85391-52170

NHP10..G,V

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

NHP10..G,V

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230

NHP10..G,V

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

NHP10..G,V

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

NHP10..G,V

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

NHP10..G,V

 1
85371N - CLAMP, REAR WASHER HOSE
82711-1E370

NHP10..G,V

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

NHP10..G,V

*H,L=470

 1
85372D - GROMMET, REAR WASHER HOSE
85372-20020

NHP10..G,V

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33595

NHP10..G,V

*H,L=4750

 1
85372T - GROMMET, WASHER
85372-20040

NHP10..G,V

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

NHP10..G,V

*H,L=210

 1
85379B - GROMMET, WASHER, A
85379-52530

NHP10..G,V

 1
85389C - PROTECTOR, WASHER
85389-26120

NHP10..G,V

 1
Common parts
82711-52090
90469-07011
