NHP10L-AHXVBA (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1412)

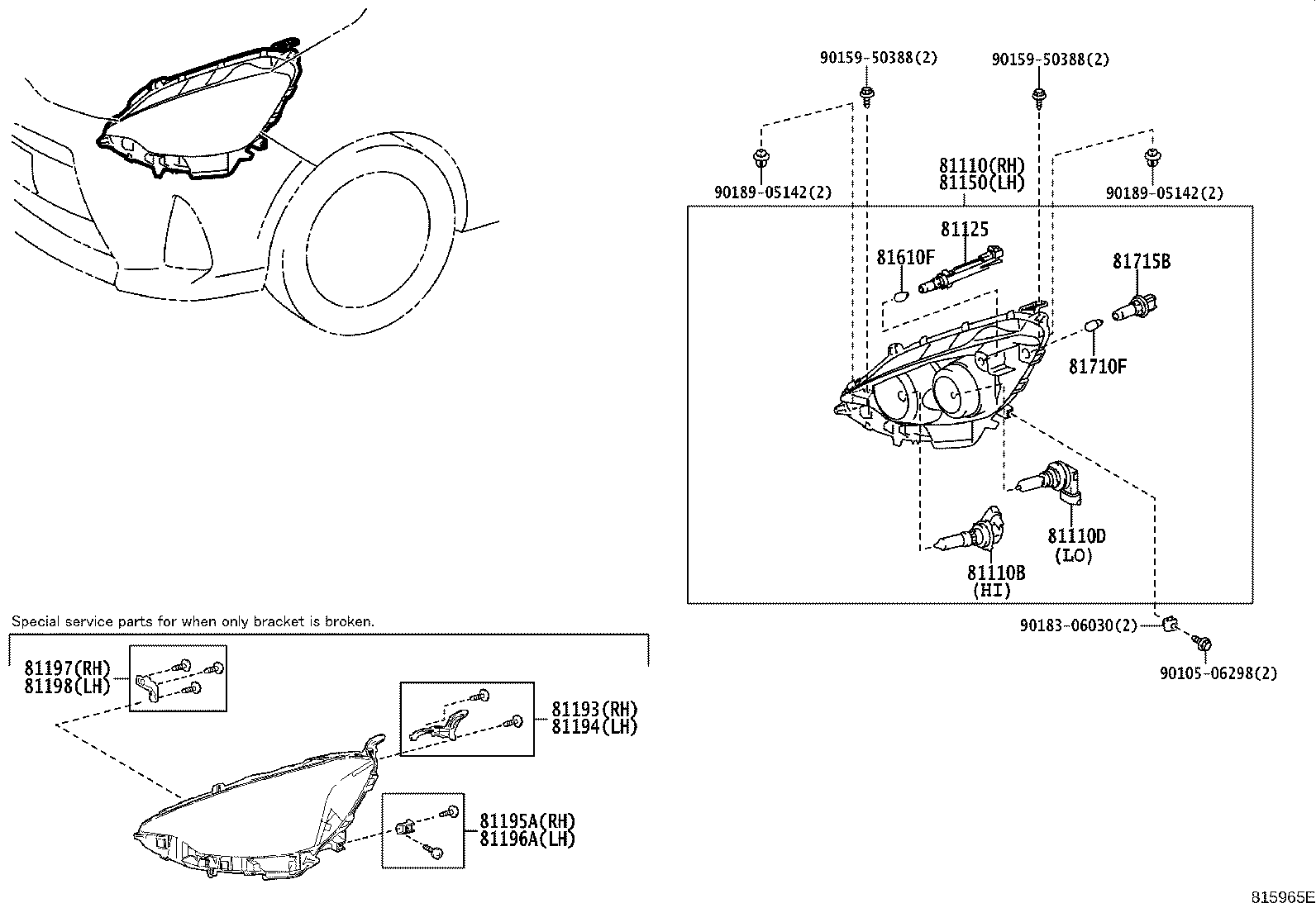

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-52E81 |
NHP10 |
1 | ||
| 81110-52E80 |
NHP10 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NHP10 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
NHP10 12V 55W,HALOGEN |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-52E60 |
NHP10 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-52E81 |
NHP10 |
1 | ||
| 81150-52E80 |
NHP10 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52150 |
NHP10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52150 |
NHP10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52130 |
NHP10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52130 |
NHP10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52040 |
NHP10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52040 |
NHP10 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NHP10 12V 5W |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
NHP10 |
2 | ||
| 81715B - SOCKET & WIRE, FRONT SIDE MARKER LAMP | ||||
| 90075-60077 |
NHP10 |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
