NHP10L-AHXVBA (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )
Click highlighted areas on diagram

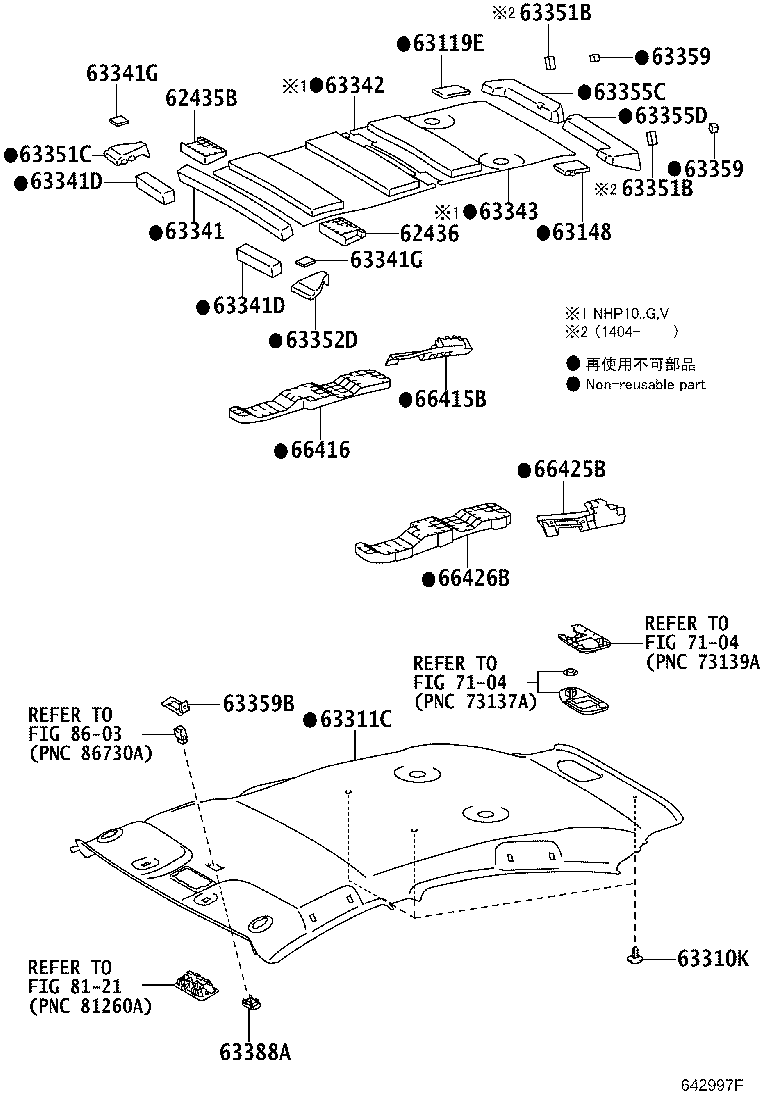

W/O(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62435B - PAD, ROOF SIDE RAIL, FRONT RH | ||||
| 62435-52010 |
NHP10 |
1 | ||
| 62436 - PAD, ROOF SIDE RAIL, FRONT LH | ||||
| 62436-52010 |
NHP10 |
1 | ||
| 63119E - PAD, ROOF PANEL, NO.1 | ||||
| 63119-52050 |
NHP10 |
1 | ||
| 63148 - PAD, ROOF PANEL | ||||
| 63129-52010 |
NHP10 |
1 | ||
| 63310K - CLIP | ||||
| 90467-05164B0 |
NHP10 LT.GRAY,TRIM2# |
3 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-52120B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 63311-52170B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52310 |
NHP10 |
1 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63345-52020 |
NHP10 |
2 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63345-52020 |
NHP10 |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52340 |
NHP10 |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52340 |
NHP10 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-52180 |
NHP10..G,V |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-52100 |
NHP10..G,V |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63387-52010 |
NHP10 |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63387-52010 |
NHP10 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-52090 |
NHP10 |
1 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-52060 |
NHP10 |
1 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-52090 |
NHP10 |
1 | ||
| 63355D - PAD, ROOF HEADLINING, LH | ||||
| 63356-52090 |
NHP10 |
1 | ||
| 63359 - PAD, ROOF HEADLINING END | ||||
| 63387-52020 |
NHP10 |
2 | ||
| 63359 - PAD, ROOF HEADLINING END | ||||
| 63387-52020 |
NHP10 |
2 | ||
| 63359B - COVER, ROOF HEADLINING RETAINER | ||||
| 63359-52040 |
NHP10 |
1 | ||
| 63388A - COVER, ROOF HEADLINING HOLDER | ||||
| 63388-52020B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-52100 |
NHP10 |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-52060 |
NHP10 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-52100 |
NHP10 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-52050 |
NHP10 |
1 | ||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
| 8603 | ||||
(1112- )
Click highlighted areas on diagram

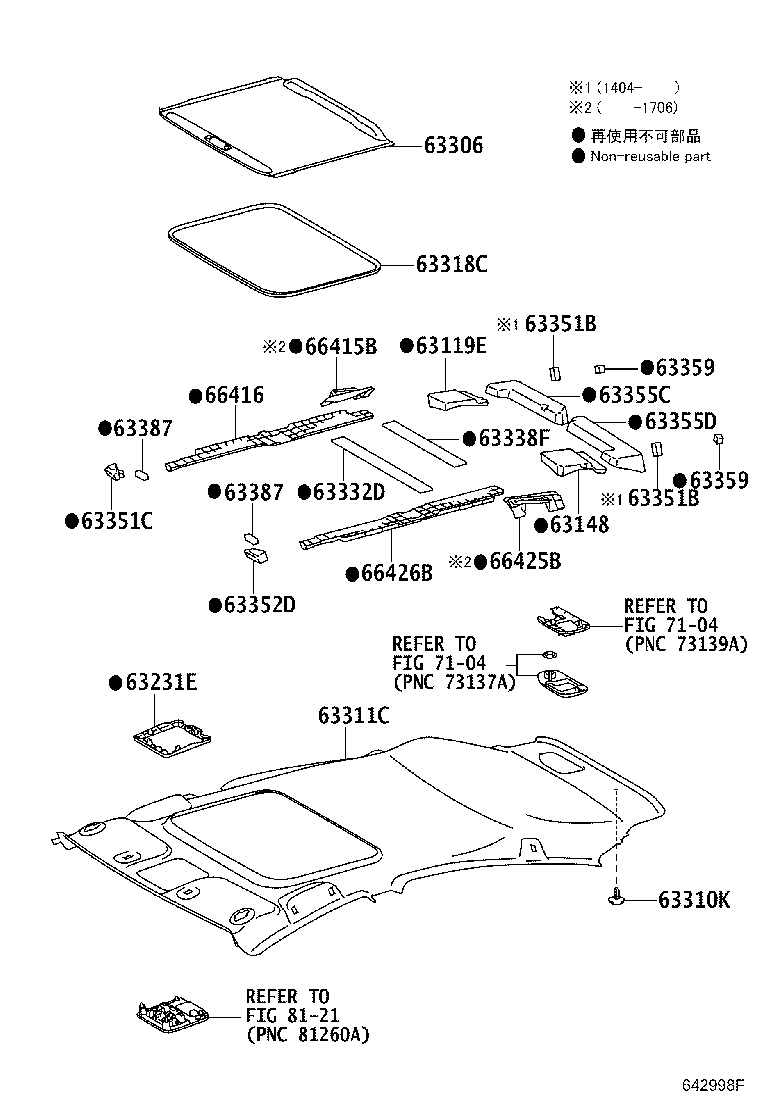

W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63119E - PAD, ROOF PANEL, NO.1 | ||||
| 63119-52050 |
NHP10 |
1 | ||
| 63148 - PAD, ROOF PANEL | ||||
| 63129-52010 |
NHP10 |
1 | ||
| 63310K - CLIP | ||||
| 90467-05164B0 |
NHP10 LT.GRAY,TRIM2# |
3 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-52120B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 63311-52170B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63387-52010 |
NHP10 |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63387-52010 |
NHP10 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-52090 |
NHP10 |
1 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-52060 |
NHP10 |
1 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-52090 |
NHP10 |
1 | ||
| 63355D - PAD, ROOF HEADLINING, LH | ||||
| 63356-52090 |
NHP10 |
1 | ||
| 63359 - PAD, ROOF HEADLINING END | ||||
| 63387-52020 |
NHP10 |
2 | ||
| 63359 - PAD, ROOF HEADLINING END | ||||
| 63387-52020 |
NHP10 |
2 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-52100 |
NHP10 |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 66416-52060 |
NHP10 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-52100 |
NHP10 |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 66426-52050 |
NHP10 |
1 | ||
| Linked diagrams | ||||
| 7104 | ||||
| 8121 | ||||
