NHP10L-AHXRBA (2017)
Toyota Prius C
Production
Jun 2017
-
Sep 9999
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1706- )

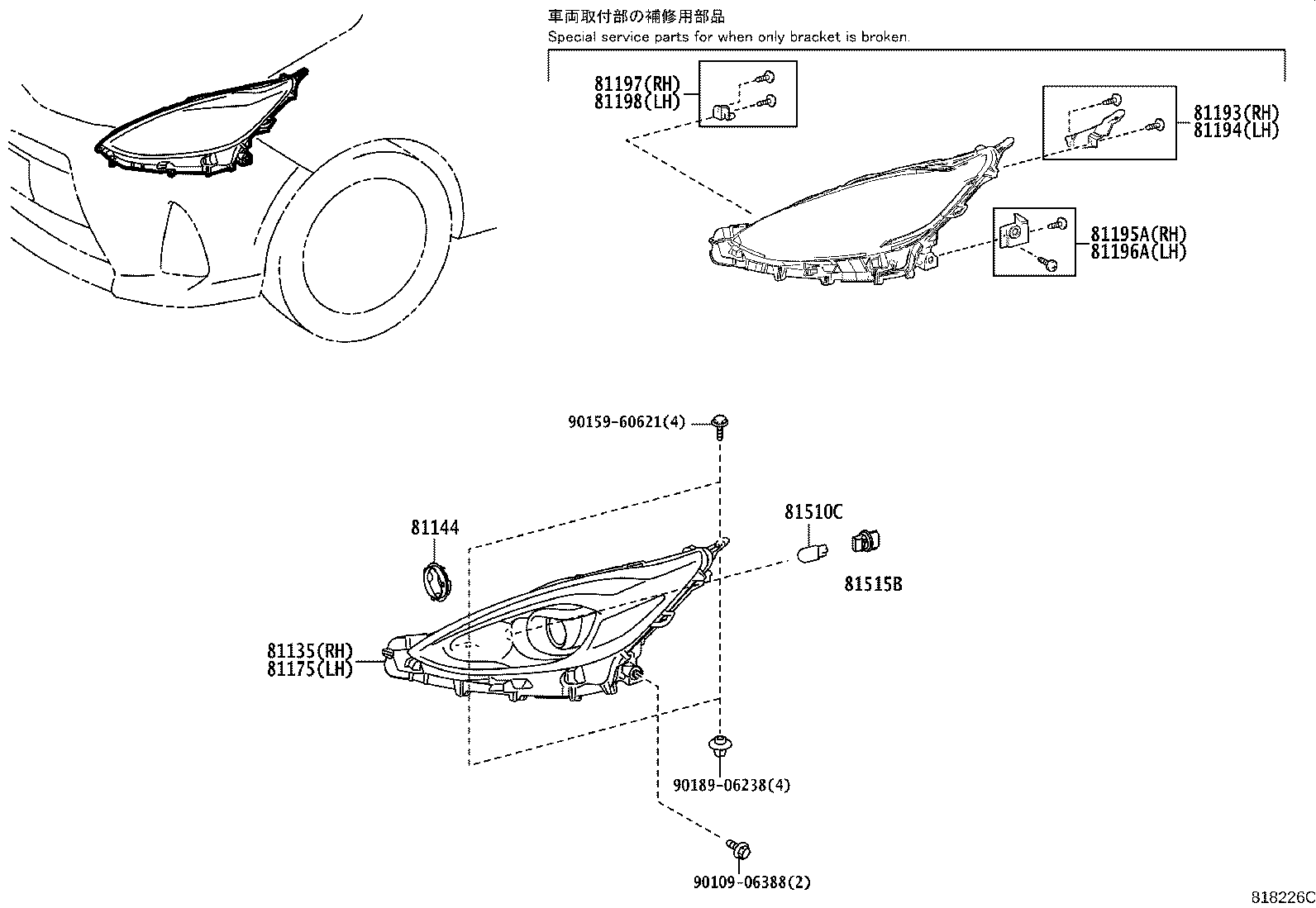

Click highlighted areas on diagram
LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-52M30 |
NHP10..R,V |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-66016 |
NHP10..R,V |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-52M30 |
NHP10..R,V |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52320 |
NHP10..R,V |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52320 |
NHP10..R,V |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52240 |
NHP10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-52240 |
NHP10 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-52100 |
NHP10 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-52100 |
NHP10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15024 |
NHP10..R,V 12V 28/8W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60083 |
NHP10..R,V |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
