NHP10L-AHXRBA (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

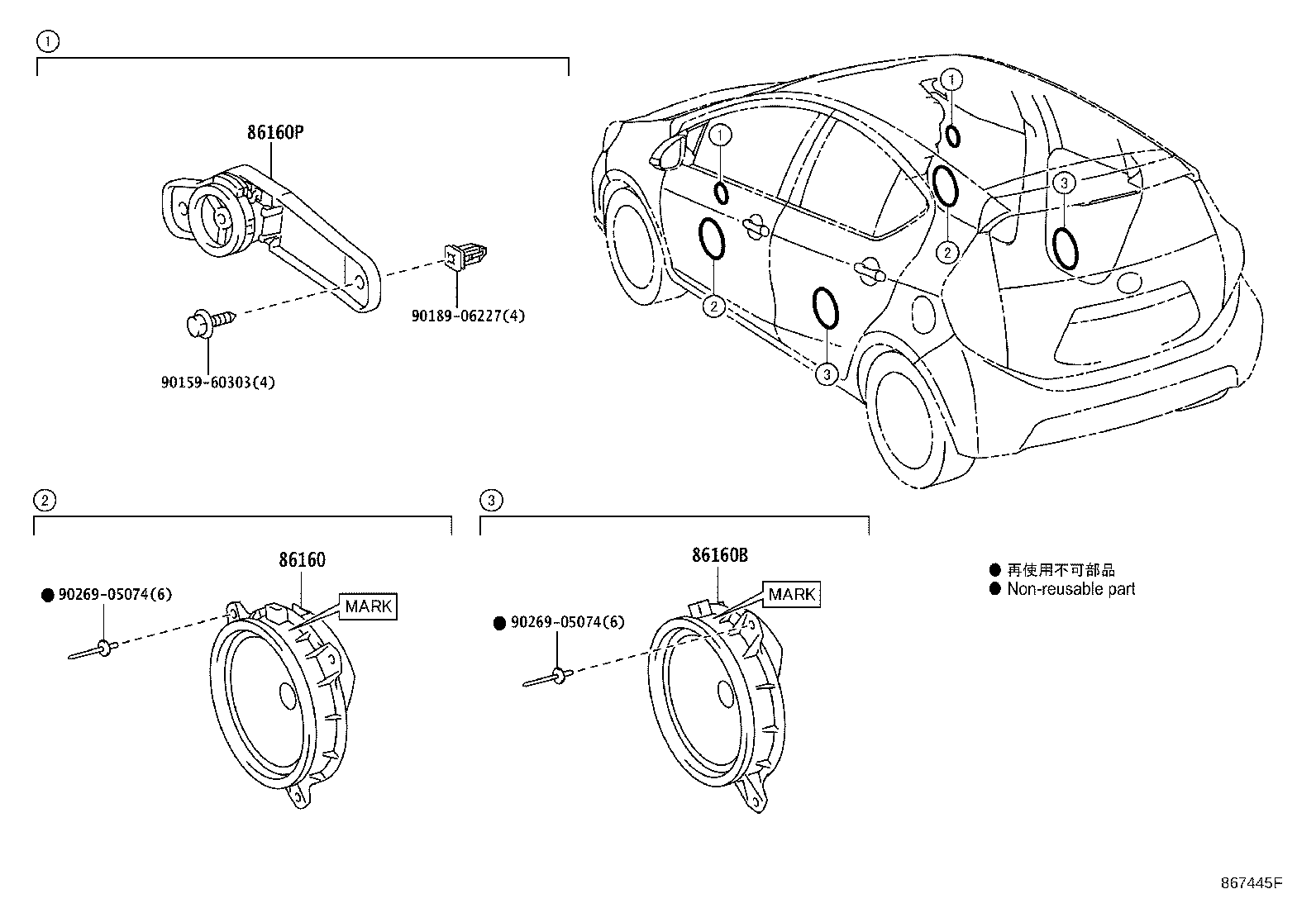

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9015960303 9018906227 9026905074 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-52300

NHP10

 2
86160B - SPEAKER ASSY, REAR
86160-52300

NHP10..G,V

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-52020

NHP10

LH

 1
86150-52010

NHP10

RH

 1
Common parts
90159-60303
90189-06227
90269-05074
