NHP10L-AHXRBA (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

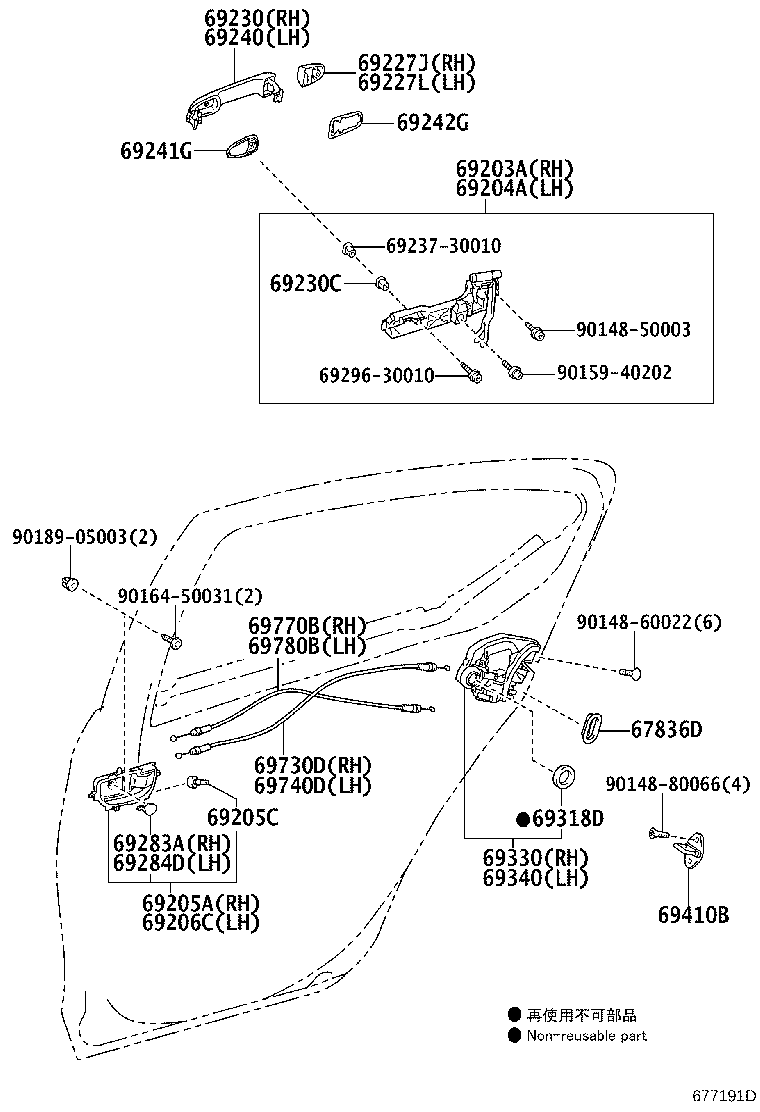

Click highlighted areas on diagram

diagram 67836D 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69230C 6923730010 69240 69241G 69242G 69283A 69284D 6929630010 69318D 69330 69340 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880066 9015940202 9016450031 9018905003
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

NHP10

 2
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-52080

NHP10

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-52100

NHP10

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-52180C0

NHP10..V

NORTH AMERICA 1 OPT,BLACK,TRIM2#

 1
69205-52170C0

NHP10..G,V

BLACK,TRIM2#

 1
69205-52180C0

NHP10..R

BLACK,TRIM2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

NHP10

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-52170C0

NHP10..G,V

BLACK,TRIM2#

 1
69206-52180C0

NHP10..V

NORTH AMERICA 1 OPT,BLACK,TRIM2#

 1
69206-52180C0

NHP10..R

BLACK,TRIM2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-52030A0

NHP10

SUPER WHITE 2,040

 1
69227-52030H1

NHP10

AQUA M.M.,774

 1
69227-52030E7

NHP10

MANDARIN ORANGE M.M.,4V7

 1
69227-52030A2

NHP10

LIME WHITE PEARL CS.,082

 1
69227-52030J5

NHP10

BLUE ME.,8T7

 1
69227-52030B0

NHP10

SILVER ME.,1F7

 1
69227-52030F0

NHP10

YELLOW,5A3

 1
69227-52030B1

NHP10

GRAY ME.,1G3

 1
69227-52030D0

NHP10

SUPER RED 5,3P0

 1
69227-52030C0

NHP10

BLACK MC.,209

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-52030H1

NHP10

AQUA M.M.,774

 1
69227-52030A0

NHP10

SUPER WHITE 2,040

 1
69227-52030F0

NHP10

YELLOW,5A3

 1
69227-52030B1

NHP10

GRAY ME.,1G3

 1
69227-52030D0

NHP10

SUPER RED 5,3P0

 1
69227-52030J5

NHP10

BLUE ME.,8T7

 1
69227-52030A2

NHP10

LIME WHITE PEARL CS.,082

 1
69227-52030E7

NHP10

MANDARIN ORANGE M.M.,4V7

 1
69227-52030B0

NHP10

SILVER ME.,1F7

 1
69227-52030C0

NHP10

BLACK MC.,209

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-52100A0

NHP10

SUPER WHITE 2,040

 1
69211-52100C0

NHP10

BLACK MC.,209

 1
69211-52100B1

NHP10

GRAY ME.,1G3

 1
69211-52100F0

NHP10

YELLOW,5A3

 1
69211-52100J5

NHP10

BLUE ME.,8T7

 1
69211-52100E7

NHP10

MANDARIN ORANGE M.M.,4V7

 1
69211-52100B0

NHP10

SILVER ME.,1F7

 1
69211-52100D0

NHP10

SUPER RED 5,3P0

 1
69211-52100H1

NHP10

AQUA M.M.,774

 1
69211-52100A2

NHP10

LIME WHITE PEARL CS.,082

 1
69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE)
69239-30010

NHP10

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-52100B0

NHP10

SILVER ME.,1F7

 1
69211-52100A2

NHP10

LIME WHITE PEARL CS.,082

 1
69211-52100A0

NHP10

SUPER WHITE 2,040

 1
69211-52100H1

NHP10

AQUA M.M.,774

 1
69211-52100C0

NHP10

BLACK MC.,209

 1
69211-52100E7

NHP10

MANDARIN ORANGE M.M.,4V7

 1
69211-52100B1

NHP10

GRAY ME.,1G3

 1
69211-52100J5

NHP10

BLUE ME.,8T7

 1
69211-52100D0

NHP10

SUPER RED 5,3P0

 1
69211-52100F0

NHP10

YELLOW,5A3

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-52020

NHP10

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-52030

NHP10

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-52010C0

NHP10

BLACK,TRIM2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69283-52010C0

NHP10

BLACK,TRIM2#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NHP10

 2
69330 - LOCK ASSY, REAR DOOR, RH
69050-42021

NHP10..R,V

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-42021

NHP10..R,V

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-47010

NHP10

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-52180

NHP10

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-52180

NHP10

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-52100

NHP10

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-52100

NHP10

 1
Common parts
69237-30010
69296-30010
90148-50003
90148-60022
90148-80066
90159-40202
90164-50031
90189-05003
