NHP10L-AHXRBA (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1505)

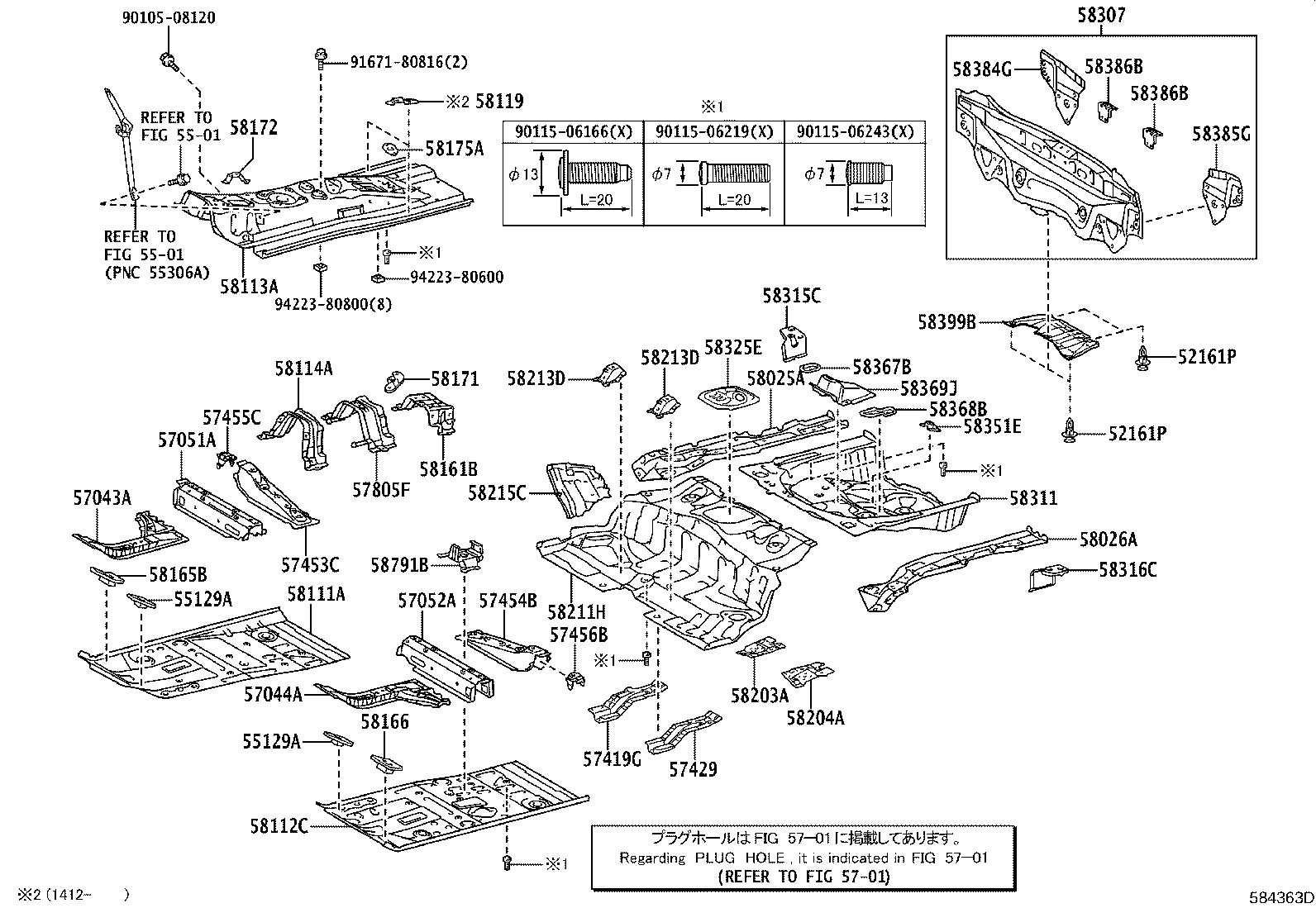

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
5 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
5 | ||
| 55129A - COVER, FRONT FLOOR HOLE | ||||
| 55129-52051 |
NHP10 RH |
1 | ||
| 55139-52021 |
NHP10 LH |
1 | ||
| 55129A - COVER, FRONT FLOOR HOLE | ||||
| 55129-52051 |
NHP10 RH |
1 | ||
| 55139-52021 |
NHP10 LH |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-52023 |
NHP10 |
1 | ||
| 57043-52021 |
NHP10 |
1 | ||
| 57043-52022 |
NHP10 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-52042 |
NHP10 |
1 | ||
| 57044-52041 |
NHP10 |
1 | ||
| 57044-52043 |
NHP10 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52010 |
NHP10 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52010 |
NHP10 |
1 | ||
| 57419G - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-52100 |
NHP10 |
1 | ||
| 57429 - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57429-52110 |
NHP10 |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-52021 |
NHP10 |
1 | ||
| 57453-52022 |
NHP10 |
1 | ||
| 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH | ||||
| 57454-52011 |
NHP10 |
1 | ||
| 57454-52012 |
NHP10 |
1 | ||
| 57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 57455-52040 |
NHP10 |
1 | ||
| 57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 57456-52040 |
NHP10 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52131 |
NHP10 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52010 |
NHP10 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-52010 |
NHP10 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52280 |
NHP10 |
1 | ||
| 58111-52170 |
NHP10 |
1 | ||
| 58111-52281 |
NHP10 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52913 |
NHP10 |
1 | ||
| 58112-52917 |
NHP10 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52915 |
NHP10 |
1 | ||
| 58113-52924 |
NHP10 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52071 |
NHP10 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52070 |
NHP10 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52011 |
NHP10 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NHP10 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52090 |
NHP10 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52020 |
NHP10 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NHP10 |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 57801-52150 |
NHP10 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 57802-52150 |
NHP10 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-52909 |
NHP10 |
1 | ||
| 58211-52908 |
NHP10 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 57551-52010 |
NHP10 |
2 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 57551-52010 |
NHP10 |
2 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-52100 |
NHP10 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52600 |
NHP10 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52140 |
NHP10 |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-52160 |
NHP10 |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-52180 |
NHP10 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52080 |
NHP10 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
NHP10 |
1 | ||
| 58367B - BRACKET, FUEL TUBE | ||||
| 58367-52040 |
NHP10 |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-52021 |
NHP10 |
1 | ||
| 58369J - BRACKET, REAR FLOOR BRACE | ||||
| 58369-52010 |
NHP10 |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-52160 |
NHP10 |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-52120 |
NHP10 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
NHP10 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
NHP10 |
2 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-52010 |
NHP10 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52060 |
NHP10 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 91671-80816 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 5701 | ||||
