NHP10L-AHXGBA (2017)

Toyota Prius C

Production Jun 2017 - Sep 9999
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

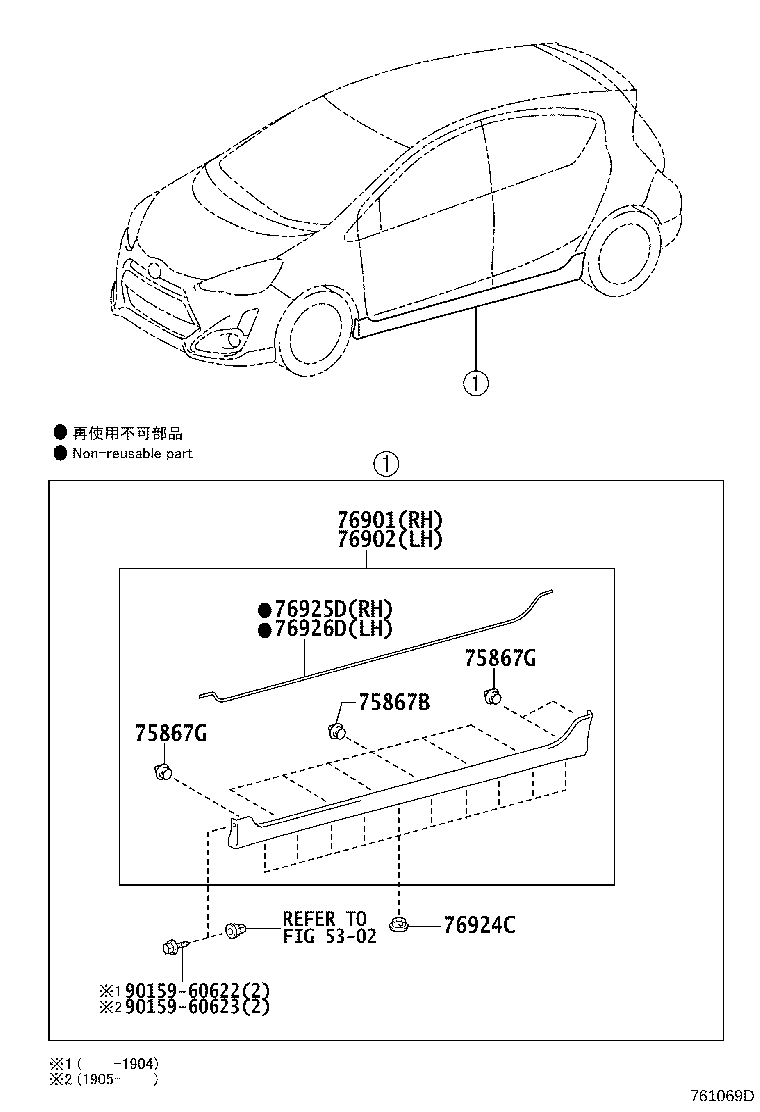

ILLUST NO. 2 OF 3(1707- )G,V

Click highlighted areas on diagram

SIDE

diagram 5302 75867B 75867G 75867G 76901 76902 76924C 76925D 76926D 9015960622 9015960623
Part # Description Qty Price
75867B - CLIP, ROCKER PANEL MOULDING
75867-52020

NHP10..G

 12
75867-52020

NHP10..G,V

WITHOUT(PACKAGE OPTION 2)

 18
75867-52020

NHP10..G,V

 18
75867-52020

NHP10..V

 12
75867G - CLIP, ROCKER PANEL MOULDING NO.2
75867-68010

NHP10..V

 6
75867-68010

NHP10..G

 6
75867-68010

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 6
75867-68010

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 6
75867G - CLIP, ROCKER PANEL MOULDING NO.2
75867-68010

NHP10..V

 6
75867-68010

NHP10..G

 6
75867-68010

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 6
75867-68010

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 6
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76901-52180

NHP10..G

 1
76901-52180

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 1
76901-52180

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 1
76901-52180

NHP10..V

 1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76902-52200

NHP10..G

 1
76902-52200

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 1
76902-52200

NHP10..V

 1
76902-52200

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 1
76924C - RETAINER, SIDE MUDGUARD, NO.2
76924-12040

NHP10..G

 20
76924-12040

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 20
76924-12040

NHP10..V

 20
76924-12040

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 20
76925D - PROTECTOR, SIDE MUDGUARD, RH
76925-52270

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 1
76925-52270

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 1
76925-52270

NHP10..G

 1
76925-52270

NHP10..V

 1
76926D - PROTECTOR, SIDE MUDGUARD, LH
76925-52270

NHP10..G

 1
76925-52270

NHP10..V

WITHOUT(PACKAGE OPTION 2)

 1
76925-52270

NHP10..G

WITHOUT(PACKAGE OPTION 2)

 1
76925-52270

NHP10..V

 1
Common parts
90159-60622
90159-60623
Linked diagrams
5302
