NHP10L-AHXGBA (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1112- )

Click highlighted areas on diagram

DISC WHEEL

diagram 04423 42601 42601A 42601C 42607 42611J 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33030

NHP10

 4
42601 - WHEEL, DISC
42611-52A00

NHP10..G,V

15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM,TYPE B:REFER ILLUST.

 4
42611-52A20

NHP10..G

16X6J, #,TIRE & DISC WHEEL-195/50R16 6J ALL SEASON TIRE ALUMINUM,TYPE D:REFER ILLUST.

 4
42611-52770

NHP10

15X5J, #,TYPE A:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-52400

NHP10

16X4T,TYPE F:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

NHP10..G,V

TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM,TYPE B:REFER ILLUST.

 16
90942-01033

NHP10..G

TIRE & DISC WHEEL-195/50R16 6J ALL SEASON TIRE ALUMINUM,TYPE B:REFER ILLUST.

 16
90942-01007

NHP10

TYPE A:REFER ILLUST.

 16
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-52020

NHP10

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

NHP10

 1
42611U - CAP, TIRE VALVE
90942-05039

NHP10

 4

ILLUST NO. 2 OF 2(1112- )

Click highlighted areas on diagram

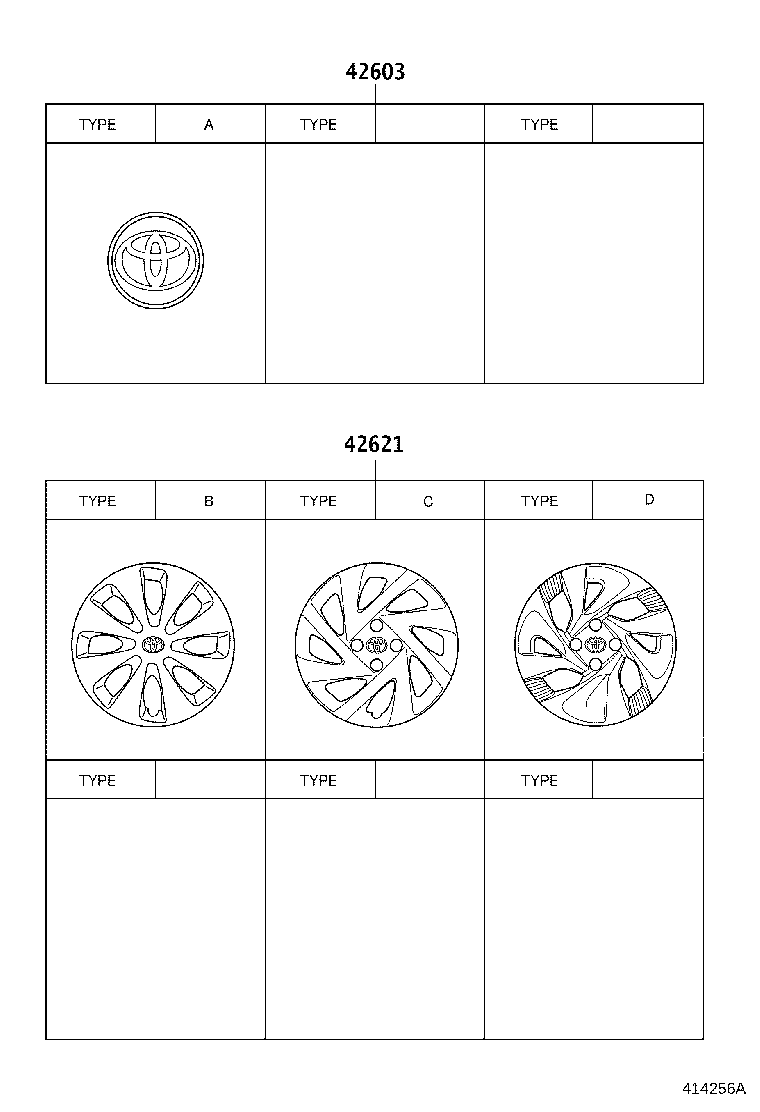

WHELL HUB ORNAMENT & WHEEL CAP

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52150

NHP10..G,V

*ALU,TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM,TYPE A:REFER ILLUST.

 4
42603-52150

NHP10..G

*ALU,TIRE & DISC WHEEL-195/50R16 6J ALL SEASON TIRE ALUMINUM,TYPE A:REFER ILLUST.

 4
42621 - CAP, WHEEL
42602-52540

NHP10

TYPE B:REFER ILLUST.

 4
