NHP10L-AHXGBA (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

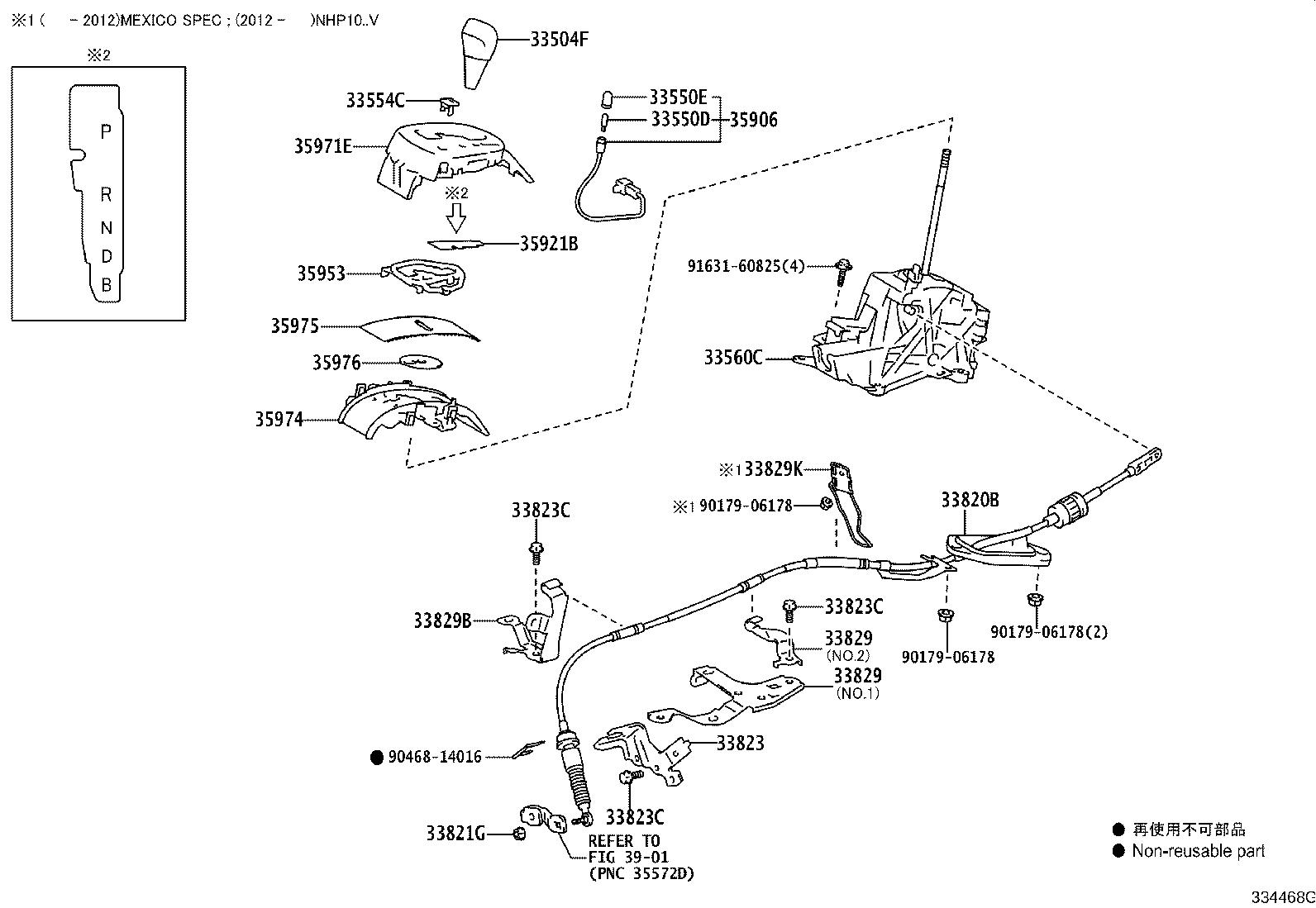

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-52340C0 |
NHP10..G,V BLACK,TRIM2# |
1 | ||
| 33504-52310C0 |
NHP10..V NORTH AMERICA 1 OPT,BLACK,TRIM2# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-74010 |
NHP10 12V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52020 |
NHP10 |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-52070 |
NHP10 |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-52570 |
NHP10 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-52800 |
NHP10 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
NHP10 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-52140 |
NHP10 |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP10 |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP10 |
6 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80816 |
NHP10 |
6 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52200 |
NHP10 NO.2 |
1 | ||
| 33829-52190 |
NHP10 NO.1 |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-52200 |
NHP10 NO.2 |
1 | ||
| 33829-52190 |
NHP10 NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-52180 |
NHP10 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-52210 |
NHP10 |
1 | ||
| 35921B - PLATE, CONTROL POSITION INDICATOR NO,2 | ||||
| 35921-52230 |
NHP10 |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-52130 |
NHP10 |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-52570 |
NHP10 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-52120 |
NHP10 |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52140 |
NHP10 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-52140 |
NHP10 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91631-60825 | ||||
| Linked diagrams | ||||
| 3901 | ||||
