ZVW50L-AHXEBA (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

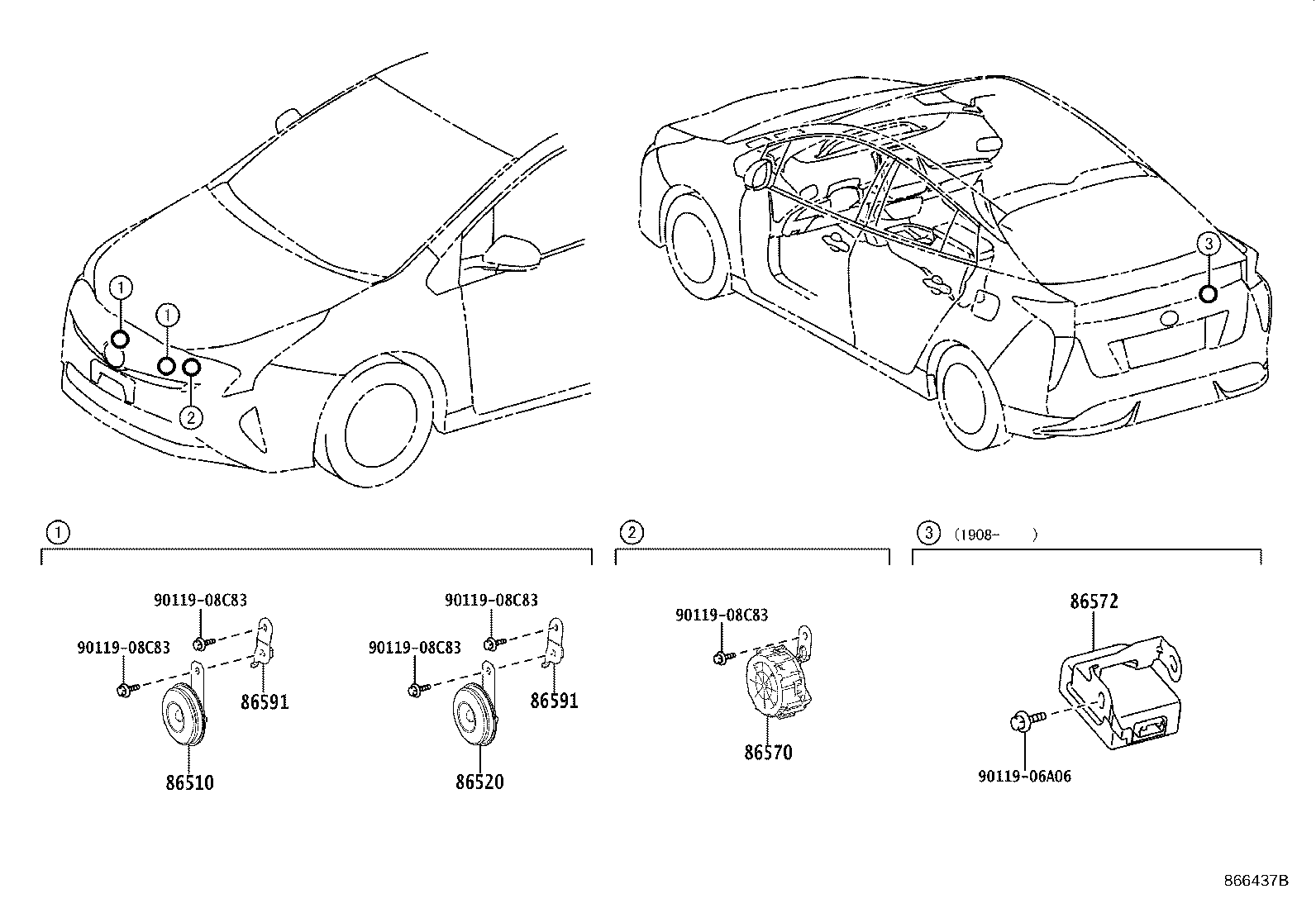

Click highlighted areas on diagram

diagram 86510 86520 86570 86572 86591 86591 9011906A06 9011908C83 9011908C83 9011908C83 9011908C83 9011908C83
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-47060

ZVW5#

DENSO

 1
86510-47050

ZVW5#

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-47030

ZVW5#

MARUKO

 1
86520-47040

ZVW5#

DENSO

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-47050

ZVW50

KOREA SPEC

 1
86570-47050

ZVW5#

 1
86591 - BRACKET, HORN
86591-47010

ZVW5#

 2
86591 - BRACKET, HORN
86591-47010

ZVW5#

 2
Common parts
90119-06A06
90119-08C83
