ZVW50L-AHXEBA (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

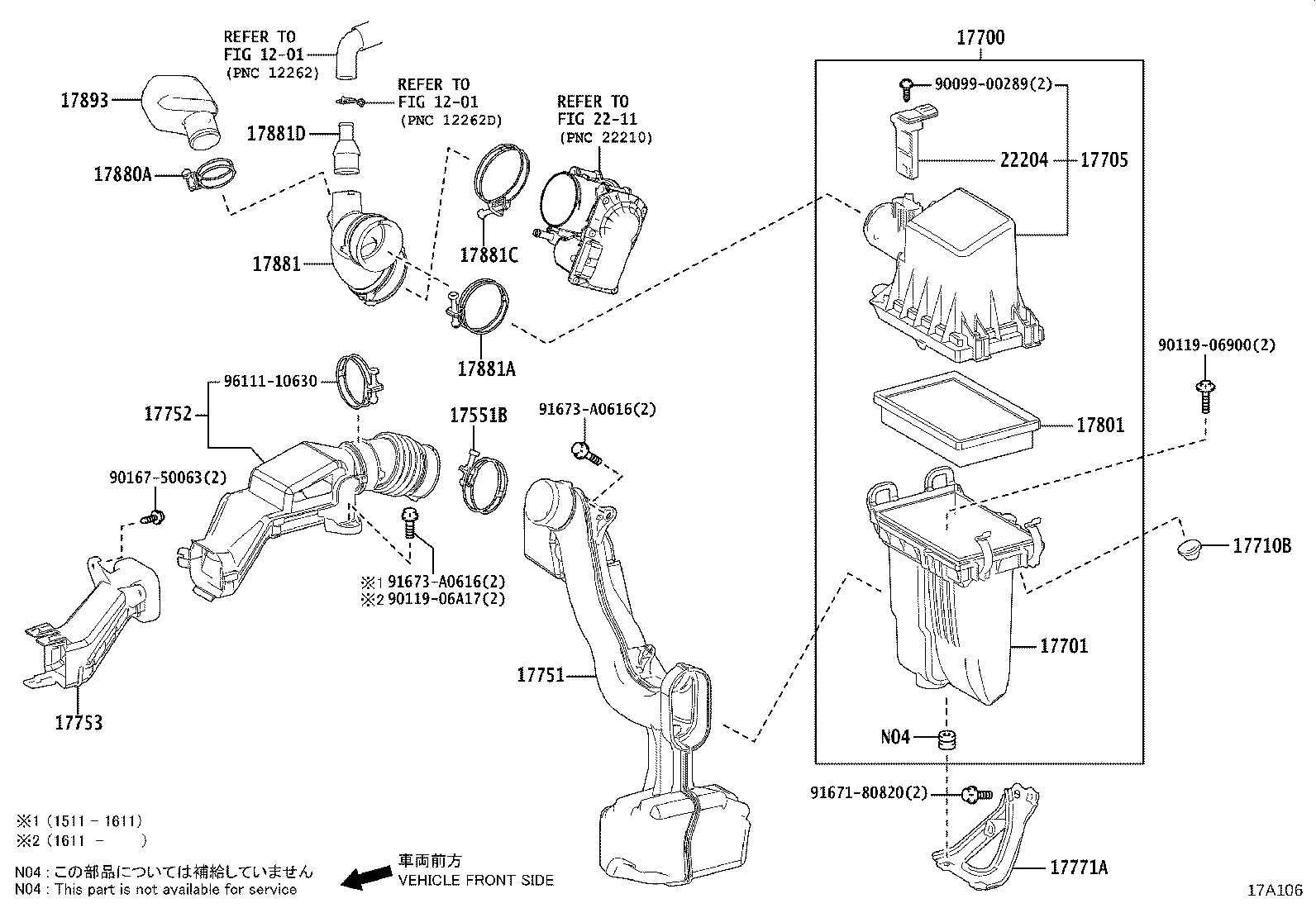

Click highlighted areas on diagram

diagram 1201 1201 17551B 17700 17701 17705 17710B 17751 17752 17753 17771A 17801 17880A 17881 17881A 17881C 17881D 17893 2211 22204 9009900289 9011906900 9011906A17 9016750063 9167180820 91673A0616 91673A0616 9611110630
Part # Description Qty Price
17551B - CLAMP(FOR AIR CLEANER INLET, NO.1)
96111-10650

2ZRFXE..ZVW5#

 1
17700 - CLEANER ASSY, AIR
17700-37340

2ZRFXE..ZVW5#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-37230

2ZRFXE..ZVW5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37200

2ZRFXE..ZVW5#

 1
17710B - GROMMET
90480-18006

2ZRFXE..ZVW5#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37110

2ZRFXE..ZVW5#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-37120

2ZRFXE..ZVW5#

 1
17752-37121

2ZRFXE..ZVW5#

 1
17753 - INLET, AIR CLEANER, NO.3
17753-37010

2ZRFXE..ZVW5#

 1
17771A - BRACKET, AIR CLEANER
17771-37020

2ZRFXE..ZVW5#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21060

2ZRFXE..ZVW5#

 1
17880A - CLAMP, HOSE
96111-10430

2ZRFXE..ZVW5#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37330

2ZRFXE..ZVW5#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2ZRFXE..ZVW5#

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2ZRFXE..ZVW5#

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

2ZRFXE..ZVW5#

 1
17893 - RESONATOR, INTAKE AIR
17893-37130

2ZRFXE..ZVW5#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

2ZRFXE..ZVW5#

 1
Common parts
90099-00289
90119-06900
90119-06A17
90167-50063
91671-80820
91673-A0616
96111-10630
Linked diagrams
1201
2211
