ZVW30L-AHXGBA (2011)
Toyota Prius

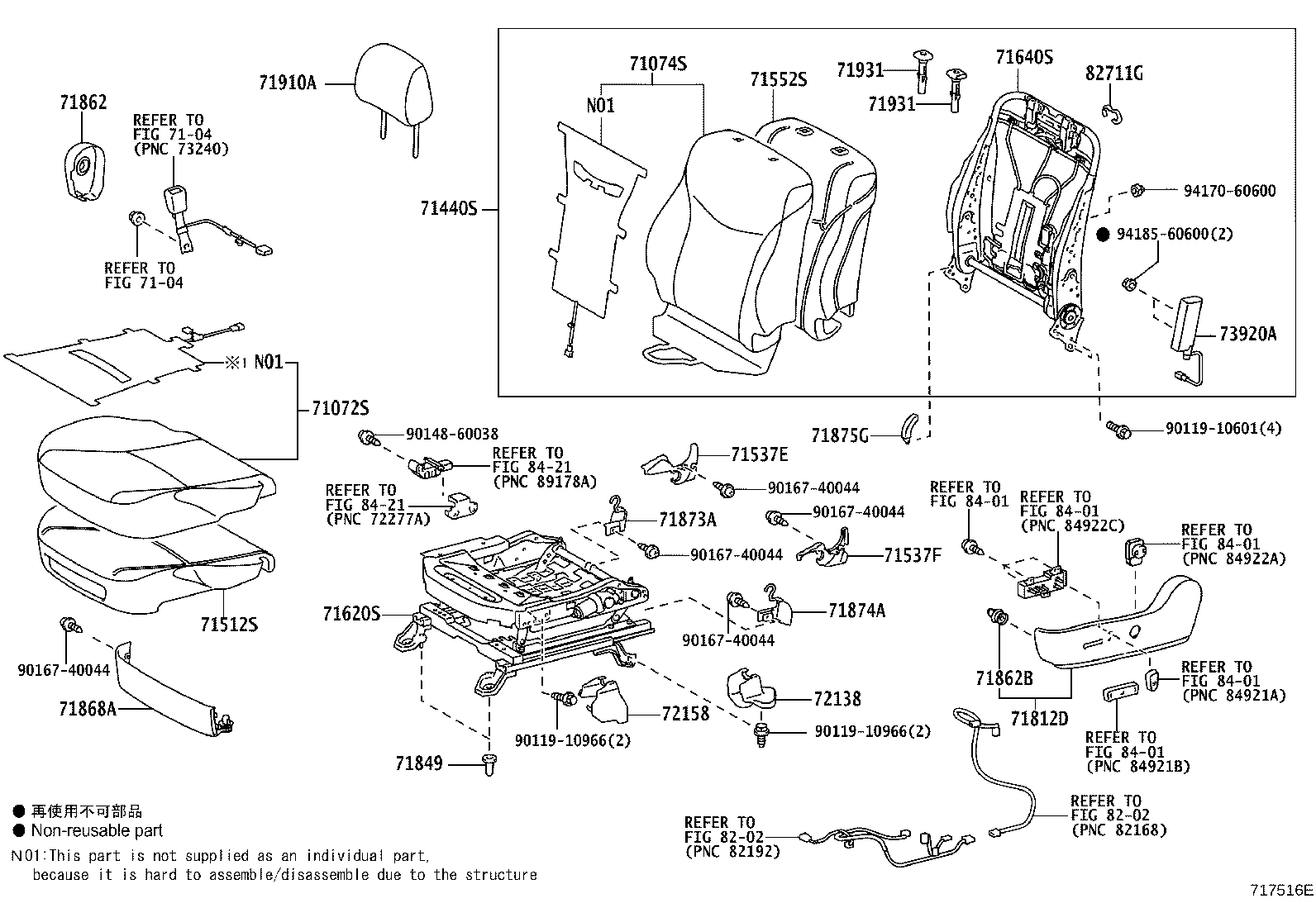

ILLUST NO. 1 OF 2(1112- )
LH SEAT,W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47190G1 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71072-47230B1 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71072-47230E1 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47230G1 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47190E1 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71072-47230G1 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71072-47230E1 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71072-47230G1 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47230E1 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47640C2 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-47640C1 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-47193E4 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71072-47390G4 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71072-47193B4 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71072-47390E4 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71072-47390E5 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71072-47390B4 |
ZVW30..G GRAY,TRIM1# |
1 | ||
| 71072-47390B5 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71072-47193G4 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71072-47390G5 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71072-47190B1 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71072-47230B1 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71072-47230B1 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47130E0 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71074-47130B0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71074-47100G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71074-47130E0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47130E0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47130G0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47130B0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71074-47130G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71074-47100B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074-47130G0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47130B0 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71074-47100E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71074-47250B3 |
ZVW30..G GRAY,TRIM1# |
1 | ||
| 71074-47360G3 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71074-47250B5 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71074-47360B4 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074-47250E3 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71074-47360E1 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71074-47360E4 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71074-47250E5 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71074-47360B1 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074-47251B5 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71074-47250G3 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71074-47360G1 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71074-47461C3 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-47251G5 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47252B6 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71074-47460C1 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-47252E6 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71074-47252G6 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47361B5 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71074-47251E5 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71074-47250G5 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71074-47361E5 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71074-47361G4 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-47080E1 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-47080G1 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47080G1 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71440-47080B1 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71440-47080B1 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71440-47080E1 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71440-47140B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71440-47080E1 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71440-47140E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71440-47140G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71440-47080B1 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71440-47080G1 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71440-47320E3 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71440-47320G3 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71440-47320B4 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71440-47320E5 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71440-47610G1 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71440-47320B6 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71440-47610B3 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71440-47610B1 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71440-47610E1 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71440-47610E3 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71440-47710C1 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-47321G0 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47321B0 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71440-47322E0 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71440-47611E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71440-47322B0 |
ZVW30..G GRAY/GRAY/LT.GRAY,TRIM1# |
1 | ||
| 71440-47610G3 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71440-47611B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71440-47611G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71440-47322G0 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47320G5 |
ZVW30..G AQUA/AQUA/ECRU,TRIM6# |
1 | ||
| 71440-47321E0 |
ZVW30..G GREGE/GREGE/IVORY,TRIM4# |
1 | ||
| 71440-47711C1 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47190 |
ZVW30..G |
1 | ||
| 71512-47070 |
ZVW30 |
1 | ||
| 71512-47070 |
ZVW30..L,S |
1 | ||
| 71512-47110 |
ZVW30..G |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47010G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 71537-47010E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 71537-47010C0 |
ZVW30..S BLACK,TRIM2# |
1 | ||
| 71537-47010E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 71537-47010C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71537-47010B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 71537-47010G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 71537-47010B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47010B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 71538-47010G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71538-47010E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 71538-47010B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71538-47010E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71538-52050E0 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71538-47010G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 71538-52050G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71538-47010C0 |
ZVW30..S BLACK,TRIM2# |
1 | ||
| 71538-47010C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71538-52050B0 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47160 |
ZVW30..L,S |
1 | ||
| 71552-47140 |
ZVW30..G |
1 | ||
| 71552-47090 |
ZVW30 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47010 |
ZVW30..L,S |
1 | ||
| 71620-47060 |
ZVW30..G |
1 | ||
| 71620-47060 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71620-47160 |
ZVW30..L,S |
1 | ||
| 71620-47060 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71620-47130 |
ZVW30..G |
1 | ||
| 71620-47161 |
ZVW30..L,S |
1 | ||
| 71620-47131 |
ZVW30..G |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47110 |
ZVW30..G |
1 | ||
| 71640-47020 |
ZVW30..L,S |
1 | ||
| 71640-47030 |
ZVW30..G |
1 | ||
| 71640-47030 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71640-47030 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71640-47020 |
ZVW30..L,S |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47070B0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71812-47070E0 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71812-47070G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71812-47100E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71812-47070G0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71812-47100B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71812-47070E0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71812-47100B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71812-47120E0 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71812-47070B0 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71812-47070E0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71812-47100G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71812-47120G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71812-47100C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-47100C0 |
ZVW30..S BLACK,TRIM2# |
1 | ||
| 71812-47100E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71812-47070G0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 71812-47100G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71812-47070B0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71812-47120B0 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW30 |
2 | ||
| 71848-47010 |
ZVW30 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47040E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 71862-47040G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 71862-47040B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
1 | ||
| 71862-47040B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 71862-47040C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
1 | ||
| 71862-47040G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71862-47040E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71862-47040C0 |
ZVW30..S BLACK,TRIM2# |
1 | ||
| 71862-76010B0 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71862-76010G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71862-76010E0 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
ZVW30 |
1 | ||
| 62217-12050 |
ZVW30 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60050G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71868-60050E7 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71868-60050B1 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-47040 |
ZVW30 |
1 | ||
| 71873-47040 |
ZVW30..L,S |
1 | ||
| 71873-60030 |
ZVW30..G |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW30 |
1 | ||
| 71874-60110 |
ZVW30..G |
1 | ||
| 71874-47040 |
ZVW30..L,S |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030B0 |
ZVW30..L;ZVW30..CND MD.GRAY,TRIM1# |
1 | ||
| 71875-47030B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 71875-47030B0 |
ZVW30..S..USA MD.GRAY,TRIM10 |
1 | ||
| 71875-47030G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 71875-47030C0 |
ZVW30..S..USA BLACK,TRIM10,2# |
1 | ||
| 71875-47030C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71875-60210E4 |
ZVW30..G GREGE,TRIM4# |
1 | ||
| 71875-47030B0 |
ZVW30..S..USA MD.GRAY,TRIM1# |
1 | ||
| 71875-47030B0 |
ZVW30..S..USA MD.GRAY,TRIM1# |
1 | ||
| 71875-60210G0 |
ZVW30..G AQUA,TRIM6# |
1 | ||
| 71875-47030C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 71875-47030E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 71875-47030G0 |
ZVW30..S AQUA,TRIM6# |
1 | ||
| 71875-60210B1 |
ZVW30..G MD.GRAY,TRIM1# |
1 | ||
| 71875-47030E0 |
ZVW30..S GREGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47110G0 |
ZVW30..S AQUA,TRIM6# |
2 | ||
| 71910-47130G0 |
ZVW30..G AQUA,TRIM6# |
2 | ||
| 71910-47130G0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47130B0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47130E0 |
ZVW30..G GREGE,TRIM4# |
2 | ||
| 71910-47110B0 |
ZVW30..L,S MD.GRAY,TRIM1# |
2 | ||
| 71910-47130B0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47130E0 |
ZVW30..S..USA MEXICO UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47130E0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47110E0 |
ZVW30..S GREGE,TRIM4# |
2 | ||
| 71910-47130B0 |
ZVW30..G MD.GRAY,TRIM1# |
2 | ||
| 71910-47130G0 |
ZVW30..S..USA KOREA UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47180E6 |
ZVW30..G GREGE,TRIM4# |
2 | ||
| 71910-47110B1 |
ZVW30..L,S MD.GRAY,TRIM1# |
2 | ||
| 71910-47280C0 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-47280C1 |
ZVW30..S..USA USA SPECIAL PACKAGE,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-47110E1 |
ZVW30..S GREGE,TRIM4# |
2 | ||
| 71910-47180G6 |
ZVW30..G AQUA,TRIM6# |
2 | ||
| 71910-47110G2 |
ZVW30..S AQUA,TRIM6# |
2 | ||
| 71910-47180B4 |
ZVW30..G GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E0 |
ZVW30..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW30..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020B0 |
ZVW30 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW30..S..USA W(LOCK),MD.GRAY,TRIM10 |
2 | ||
| 71930-47020C0 |
ZVW30..S..USA W(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71931-47020E0 |
ZVW30..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020C0 |
ZVW30..S..USA W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47020B0 |
ZVW30 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW30..CND;ZVW30..G,L W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020C0 |
ZVW30..S..USA W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47020G0 |
ZVW30..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..CND;ZVW30..G,L W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020B0 |
ZVW30..S..USA W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020C0 |
ZVW30..S..USA W(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71930-47020E0 |
ZVW30..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020C0 |
ZVW30..S..USA W/O(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71930-47020G0 |
ZVW30..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW30..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..S..USA W/O(LOCK),MD.GRAY,TRIM10 |
2 | ||
| 71930-47020B0 |
ZVW30..S..USA W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW30..S..USA W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020B0 |
ZVW30..S..USA W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW30..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020C0 |
ZVW30..S..USA W/O(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020E0 |
ZVW30..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW30..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020B0 |
ZVW30 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW30..S..USA W(LOCK),MD.GRAY,TRIM10 |
2 | ||
| 71930-47020C0 |
ZVW30..S..USA W(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71931-47020E0 |
ZVW30..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020C0 |
ZVW30..S..USA W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47020B0 |
ZVW30 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW30..CND;ZVW30..G,L W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020C0 |
ZVW30..S..USA W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47020G0 |
ZVW30..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..CND;ZVW30..G,L W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020B0 |
ZVW30..S..USA W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020C0 |
ZVW30..S..USA W(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71930-47020E0 |
ZVW30..G,S W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020C0 |
ZVW30..S..USA W/O(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 71930-47020G0 |
ZVW30..G,S W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW30..G,S W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020B0 |
ZVW30..S..USA W/O(LOCK),MD.GRAY,TRIM10 |
2 | ||
| 71930-47020B0 |
ZVW30..S..USA W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW30..S..USA W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020B0 |
ZVW30..S..USA W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW30..G,S W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47020C0 |
ZVW30..S..USA W/O(LOCK),USA SPECIAL PACKAGE,BLACK,TRIM1#,2# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-47040G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 72138-47040B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 72138-47040C0 |
ZVW30..L BLACK,TRIM2# |
1 | ||
| 72138-47040C0 |
ZVW30..(G,S)..USA BLACK,TRIM10,2#,4#,6# |
1 | ||
| 72138-47040B0 |
ZVW30..L;ZVW30..CND MD.GRAY,TRIM1# |
1 | ||
| 72138-47040E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 72138-47040B0 |
ZVW30..(G,S)..USA MD.GRAY,TRIM10 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47040G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 72158-47040E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 72158-47040B0 |
ZVW30..(G,S)..USA MD.GRAY,TRIM10 |
1 | ||
| 72158-47040B0 |
ZVW30..L;ZVW30..CND MD.GRAY,TRIM1# |
1 | ||
| 72158-47040C0 |
ZVW30..L BLACK,TRIM2# |
1 | ||
| 72158-47040B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 72158-47040C0 |
ZVW30..(G,S)..USA BLACK,TRIM10,2#,4#,6# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47040 |
ZVW30 |
1 | ||
| 73920-47040 |
ZVW30 |
1 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
ZVW30..L,S |
1 | ||
| 82711-12120 |
ZVW30..G |
1 | ||
| 82711-12120 |
ZVW30 |
1 | ||
| 82711-12120 |
ZVW30..G |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
