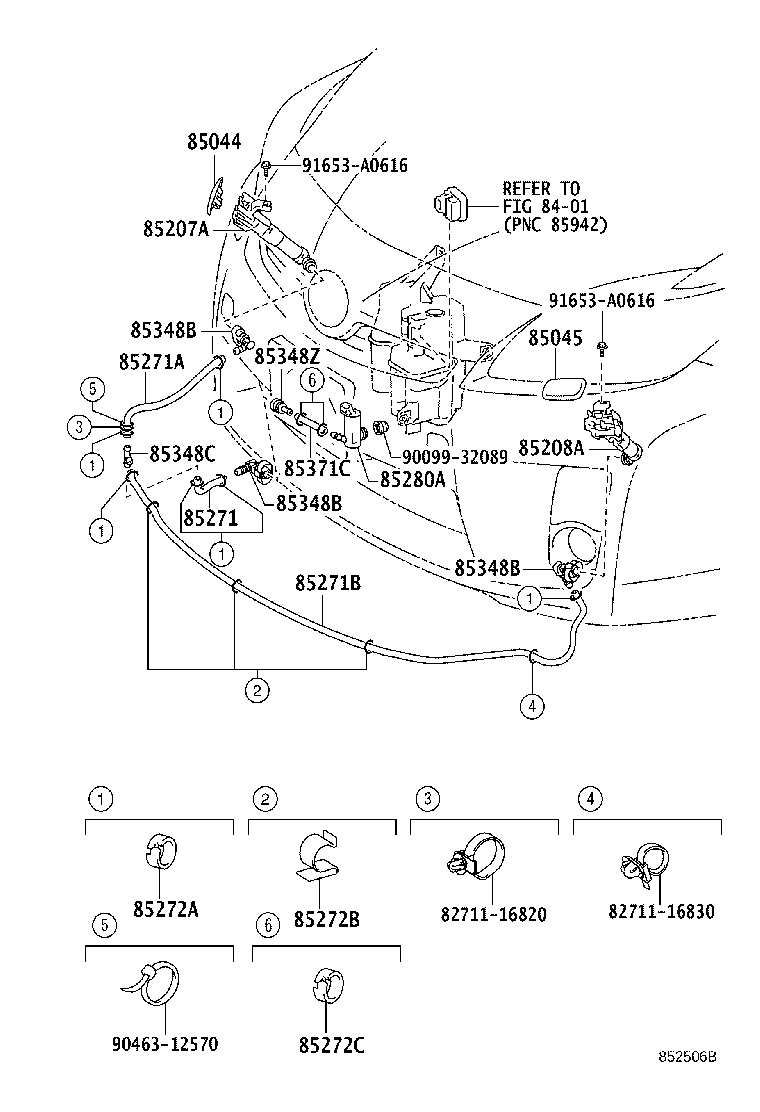

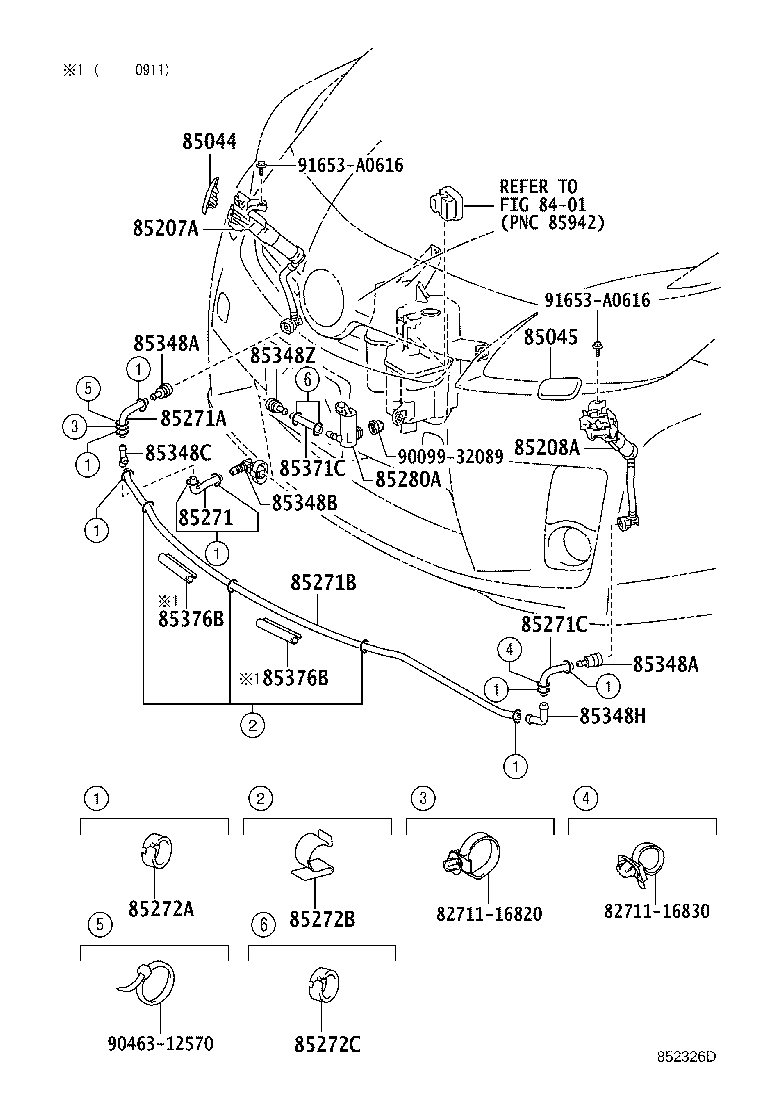

ZVW30L-AHXEBA (2009)
Toyota Prius
(0904-1004)G,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-47010A1 |
ZVW30..G,S HEADLAMP-LED,WHITE PEARL CS.,070 |
1 | ||
| 85044-47010C0 |
ZVW30..G,S HEADLAMP-LED,BLACK,202 |
1 | ||
| 85044-47010A0 |
ZVW30..(G,S)..USA HEADLAMP-LED,SUPER WHITE 2,040 |
1 | ||
| 85044-47010J0 |
ZVW30..G,S HEADLAMP-LED,DK.BLUE MC.,8T5 |
1 | ||
| 85044-47010D0 |
ZVW30..G,S HEADLAMP-LED,RED M.M.,3R3 |
1 | ||
| 85044-47010B0 |
ZVW30..G,S HEADLAMP-LED,SILVER ME.,1F7 |
1 | ||
| 85044-47010J1 |
ZVW30..G,S HEADLAMP-LED,ABYSS GRAY ME.,8V1 |
1 | ||
| 85044-47010E0 |
ZVW30..G,S HEADLAMP-LED,BEIGE ME.,4T8 |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-47010D0 |
ZVW30..G,S HEADLAMP-LED,RED M.M.,3R3 |
1 | ||
| 85045-47010A0 |
ZVW30..(G,S)..USA HEADLAMP-LED,SUPER WHITE 2,040 |
1 | ||
| 85045-47010E0 |
ZVW30..G,S HEADLAMP-LED,BEIGE ME.,4T8 |
1 | ||
| 85045-47010J1 |
ZVW30..G,S HEADLAMP-LED,ABYSS GRAY ME.,8V1 |
1 | ||
| 85045-47010B0 |
ZVW30..G,S HEADLAMP-LED,SILVER ME.,1F7 |
1 | ||
| 85045-47010C0 |
ZVW30..G,S HEADLAMP-LED,BLACK,202 |
1 | ||
| 85045-47010A1 |
ZVW30..G,S HEADLAMP-LED,WHITE PEARL CS.,070 |
1 | ||
| 85045-47010J0 |
ZVW30..G,S HEADLAMP-LED,DK.BLUE MC.,8T5 |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-47011 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85207-47010 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-47011 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85208-47010 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15054 |
ZVW30..G,S L=120,HEADLAMP-LED |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15062 |
ZVW30..G,S L=240,HEADLAMP-LED |
1 | ||
| 90075-15055 |
ZVW30..G,S L=100,HEADLAMP-LED |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15052 |
ZVW30..G,S L=1330,HEADLAMP-LED |
1 | ||
| 90075-15080 |
ZVW30..G,S L=1600,HEADLAMP-LED |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15055 |
ZVW30..G,S L=100,HEADLAMP-LED |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 90075-91002 |
ZVW30..G,S HEADLAMP-LED |
6 | ||
| 90075-91002 |
ZVW30..G,S HEADLAMP-LED |
8 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 90075-90512 |
ZVW30..G,S HEADLAMP-LED |
3 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 90075-91002 |
ZVW30..G,S HEADLAMP-LED |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17002 |
ZVW30..G,S HEADLAMP-LED |
2 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17002 |
ZVW30..G,S HEADLAMP-LED |
2 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
3 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17003 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 90075-17004 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 90075-17002 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15053 |
ZVW30..G,S L=35,HEADLAMP-LED |
1 | ||
| 85376B - PROTECTOR, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85276-53060 |
ZVW30..G,S HEADLAMP-LED |
2 | ||
| 85376B - PROTECTOR, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85276-53060 |
ZVW30..G,S HEADLAMP-LED |
2 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 90099-32089 | ||||
| 90463-12570 | ||||
| 91653-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1004-1112)G,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-47010A1 |
ZVW30..G,S HEADLAMP-LED,WHITE PEARL CS.,070 |
1 | ||
| 85044-47010C0 |
ZVW30..G,S HEADLAMP-LED,BLACK,202 |
1 | ||
| 85044-47010A0 |
ZVW30..(G,S)..USA HEADLAMP-LED,SUPER WHITE 2,040 |
1 | ||
| 85044-47010J0 |
ZVW30..G,S HEADLAMP-LED,DK.BLUE MC.,8T5 |
1 | ||
| 85044-47010D0 |
ZVW30..G,S HEADLAMP-LED,RED M.M.,3R3 |
1 | ||
| 85044-47010B0 |
ZVW30..G,S HEADLAMP-LED,SILVER ME.,1F7 |
1 | ||
| 85044-47010J1 |
ZVW30..G,S HEADLAMP-LED,ABYSS GRAY ME.,8V1 |
1 | ||
| 85044-47010E0 |
ZVW30..G,S HEADLAMP-LED,BEIGE ME.,4T8 |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-47010D0 |
ZVW30..G,S HEADLAMP-LED,RED M.M.,3R3 |
1 | ||
| 85045-47010A0 |
ZVW30..(G,S)..USA HEADLAMP-LED,SUPER WHITE 2,040 |
1 | ||
| 85045-47010E0 |
ZVW30..G,S HEADLAMP-LED,BEIGE ME.,4T8 |
1 | ||
| 85045-47010J1 |
ZVW30..G,S HEADLAMP-LED,ABYSS GRAY ME.,8V1 |
1 | ||
| 85045-47010B0 |
ZVW30..G,S HEADLAMP-LED,SILVER ME.,1F7 |
1 | ||
| 85045-47010C0 |
ZVW30..G,S HEADLAMP-LED,BLACK,202 |
1 | ||
| 85045-47010A1 |
ZVW30..G,S HEADLAMP-LED,WHITE PEARL CS.,070 |
1 | ||
| 85045-47010J0 |
ZVW30..G,S HEADLAMP-LED,DK.BLUE MC.,8T5 |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-47011 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85207-47010 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-47011 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85208-47010 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15054 |
ZVW30..G,S L=120,HEADLAMP-LED |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15062 |
ZVW30..G,S L=240,HEADLAMP-LED |
1 | ||
| 90075-15055 |
ZVW30..G,S L=100,HEADLAMP-LED |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15052 |
ZVW30..G,S L=1330,HEADLAMP-LED |
1 | ||
| 90075-15080 |
ZVW30..G,S L=1600,HEADLAMP-LED |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 90075-91002 |
ZVW30..G,S HEADLAMP-LED |
6 | ||
| 90075-91002 |
ZVW30..G,S HEADLAMP-LED |
8 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 90075-90512 |
ZVW30..G,S HEADLAMP-LED |
3 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 90075-91002 |
ZVW30..G,S HEADLAMP-LED |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
3 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
3 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 90075-17001 |
ZVW30..G,S HEADLAMP-LED |
3 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17003 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 90075-17002 |
ZVW30..G,S HEADLAMP-LED |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15053 |
ZVW30..G,S L=35,HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 90099-32089 | ||||
| 90463-12570 | ||||
| 91653-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
