ZVW30L-AHXEBA (2009)
Toyota Prius
ILLUST NO. 1 OF 2(0904- )

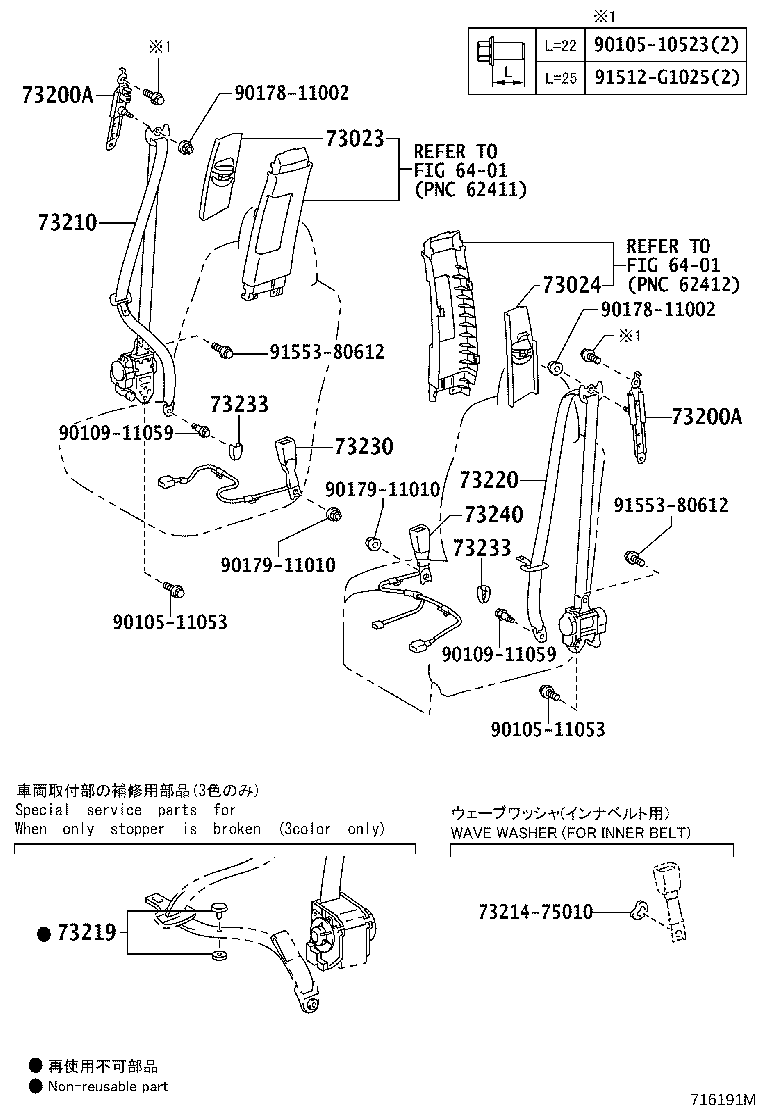

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53020B0 |
ZVW30..G,S LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 73023-53020B0 |
ZVW30..L LT.GRAY,TRIM1# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53020B0 |
ZVW30..L LT.GRAY,TRIM1# |
1 | ||
| 73024-53020B0 |
ZVW30..G,S LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZVW30 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZVW30 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-47120B2 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73210-47120B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73210-47120B3 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73210-47121B3 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73210-47121B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73210-47121B2 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
ZVW30 GRAY |
1 | ||
| 73219-02030 |
ZVW30 BEIGE |
1 | ||
| 73219-02010 |
ZVW30 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-47090B2 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73220-47090B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73220-47090B3 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73220-47091B3 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73220-47091B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73220-47091B2 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73240-47080G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73240-47080B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73240-47080E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020B0 |
ZVW30..G,S MD.GRAY,TRIM1#,6# |
2 | ||
| 73233-60020B0 |
ZVW30..L MD.GRAY,TRIM1# |
2 | ||
| 73233-60020E1 |
ZVW30..G,S GREGE,TRIM4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020B0 |
ZVW30..G,S MD.GRAY,TRIM1#,6# |
2 | ||
| 73233-60020B0 |
ZVW30..L MD.GRAY,TRIM1# |
2 | ||
| 73233-60020E1 |
ZVW30..G,S GREGE,TRIM4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-47140G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73230-47140B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73230-47140E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91512-G1025 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 6401 | ||||
ILLUST NO. 2 OF 2(0904- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-47030 |
ZVW30 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-47020 |
ZVW30 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12060E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73178-12060B3 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73178-12060G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
ZVW30 GRAY |
1 | ||
| 73219-02030 |
ZVW30 BEIGE |
1 | ||
| 73219-02010 |
ZVW30 BLACK |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-47010E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73343-47010G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73343-47010B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-47010G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73344-47010E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73344-47010B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-47030B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73350-47030E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73350-47030G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-47060G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73360-47060B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73360-47060E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-47060G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73360-47060E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73360-47060B0 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-12020E0 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73373-12020G0 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73373-12020B3 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-47020B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 73380-47020E1 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73380-47020G1 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-47050G1 |
ZVW30..G,S AQUA,TRIM6# |
1 | ||
| 73480-47050E1 |
ZVW30..G,S GREGE,TRIM4# |
1 | ||
| 73480-47050B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90178-11002 | ||||
| 93560-54014 | ||||
