ZVW30L-AHXEBA (2009)
Toyota Prius
Production
Apr 2009
-
Dec 2011
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

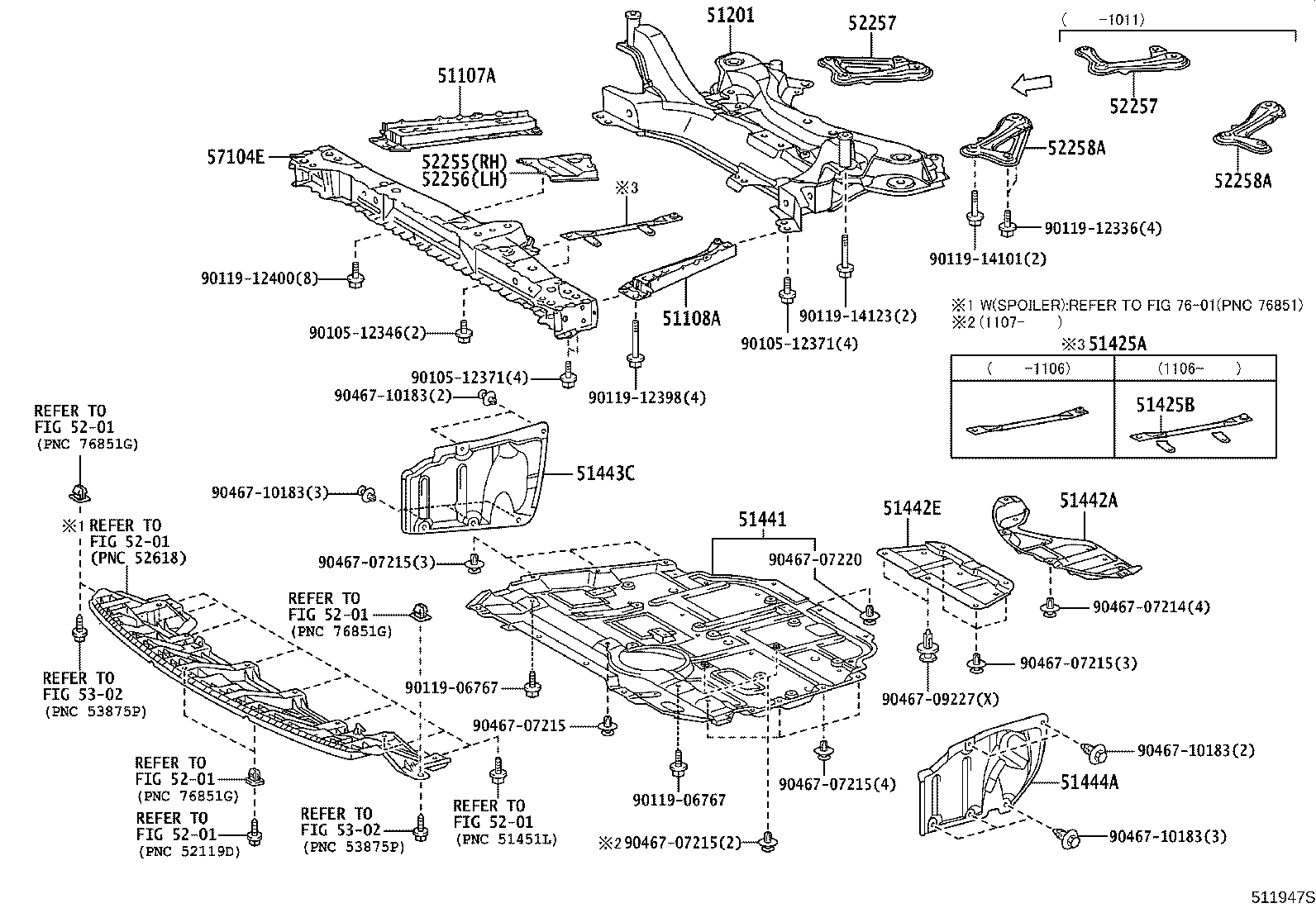

ILLUST NO. 1 OF 2(0904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-12010 |
ZVW30 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-12010 |
ZVW30 |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
ZVW30 |
1 | ||
| 51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER | ||||
| 51408-47020 |
ZVW30 |
1 | ||
| 51425-12060 |
ZVW30 |
1 | ||
| 51425B - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER | ||||
| 51425-12060 |
ZVW30 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-12102 |
ZVW30 |
1 | ||
| 51410-12101 |
ZVW30 |
1 | ||
| 51410-12103 |
ZVW30 |
1 | ||
| 51410-12100 |
ZVW30 |
1 | ||
| 51410-12104 |
ZVW30 |
1 | ||
| 51442A - COVER, ENGINE UNDER, FRONT NO.3 | ||||
| 51442-12210 |
ZVW30 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
ZVW30 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
ZVW30 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-12050 |
ZVW30 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-12010 |
ZVW30 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-12010 |
ZVW30 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-21040 |
ZVW30 |
1 | ||
| 52257-12011 |
ZVW30 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-21040 |
ZVW30 |
1 | ||
| 52257-12011 |
ZVW30 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12011 |
ZVW30 |
1 | ||
| 52258-21040 |
ZVW30 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12011 |
ZVW30 |
1 | ||
| 52258-21040 |
ZVW30 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-47020 |
ZVW30 |
1 | ||
| Common parts | ||||
| 90105-12346 | ||||
| 90105-12371 | ||||
| 90119-06767 | ||||
| 90119-12336 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90467-07214 | ||||
| 90467-07215 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||

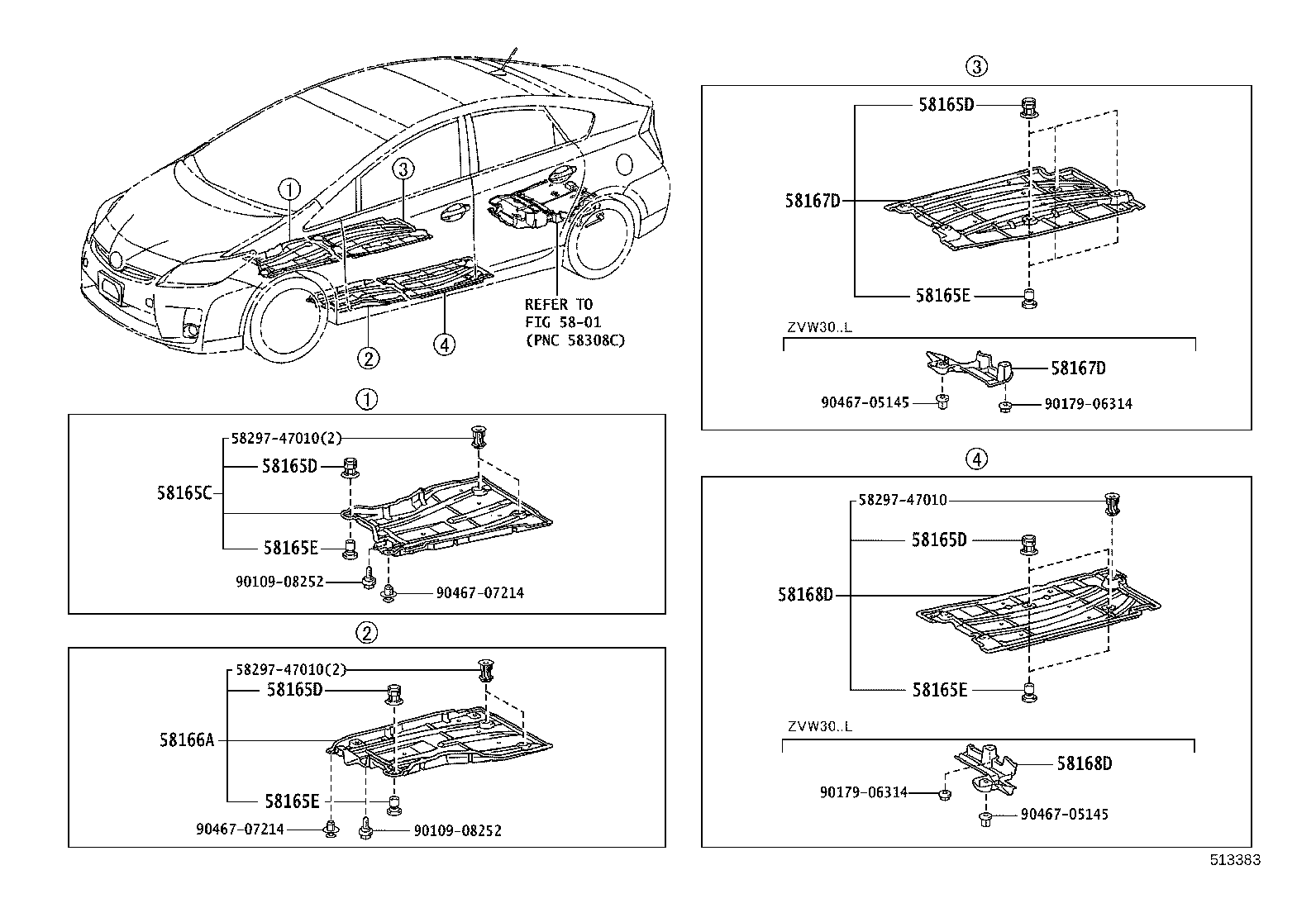

ILLUST NO. 2 OF 2(0904- )
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-47020 |
ZVW30..G,S |
1 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW30..G,S SUPER WHITE 2 |
7 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW30..G,S SUPER WHITE 2 |
7 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW30..G,S SUPER WHITE 2 |
7 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17024A0 |
ZVW30..G,S SUPER WHITE 2 |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW30..G,S BLACK |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW30..G,S BLACK |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW30..G,S BLACK |
7 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17025C0 |
ZVW30..G,S BLACK |
7 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-47020 |
ZVW30..G,S |
1 | ||
| 58167D - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-47020 |
ZVW30..L |
1 | ||
| 58167-47030 |
ZVW30..G,S |
1 | ||
| 58167D - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-47020 |
ZVW30..L |
1 | ||
| 58167-47030 |
ZVW30..G,S |
1 | ||
| 58168D - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-47020 |
ZVW30..G,S |
1 | ||
| 58168-12010 |
ZVW30..L |
1 | ||
| 58168D - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-47020 |
ZVW30..G,S |
1 | ||
| 58168-12010 |
ZVW30..L |
1 | ||
| Common parts | ||||
| 58297-47010 | ||||
| 90109-08252 | ||||
| 90179-06314 | ||||
| 90467-05145 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5801 | ||||
