ZVW30L-AHXEBA (2009)
Toyota Prius
Production
Apr 2009
-
Dec 2011
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )

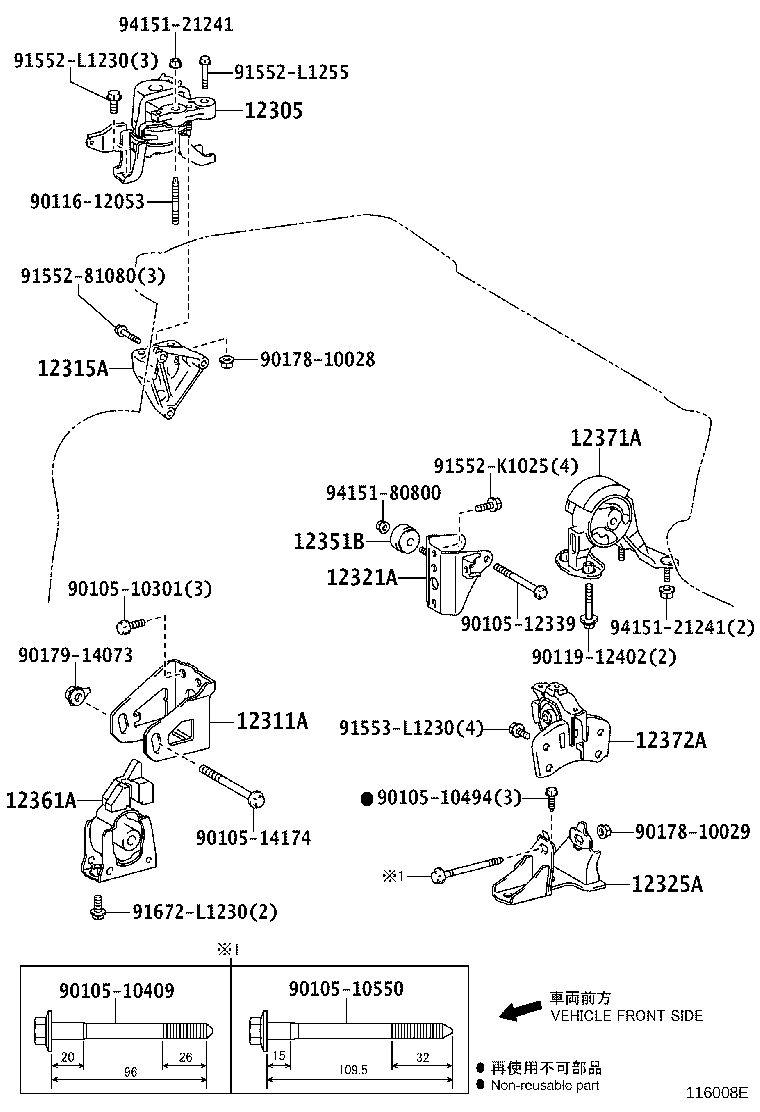

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37160 |
2ZRFXE..ZVW30 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-37090 |
2ZRFXE..ZVW30 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
2ZRFXE..ZVW30 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-37060 |
2ZRFXE..ZVW30 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-37070 |
2ZRFXE..ZVW30 |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-23010 |
2ZRFXE..ZVW30 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-37090 |
2ZRFXE..ZVW30 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-37250 |
2ZRFXE..ZVW30 |
1 | ||
| 12371-37090 |
2ZRFXE..ZVW30 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-37110 |
2ZRFXE..ZVW30 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10409 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12339 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-14073 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91553-L1230 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||
