NHW20L-AHEEBA (2005)
Toyota Prius
Production
Nov 2005
-
Mar 2009
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

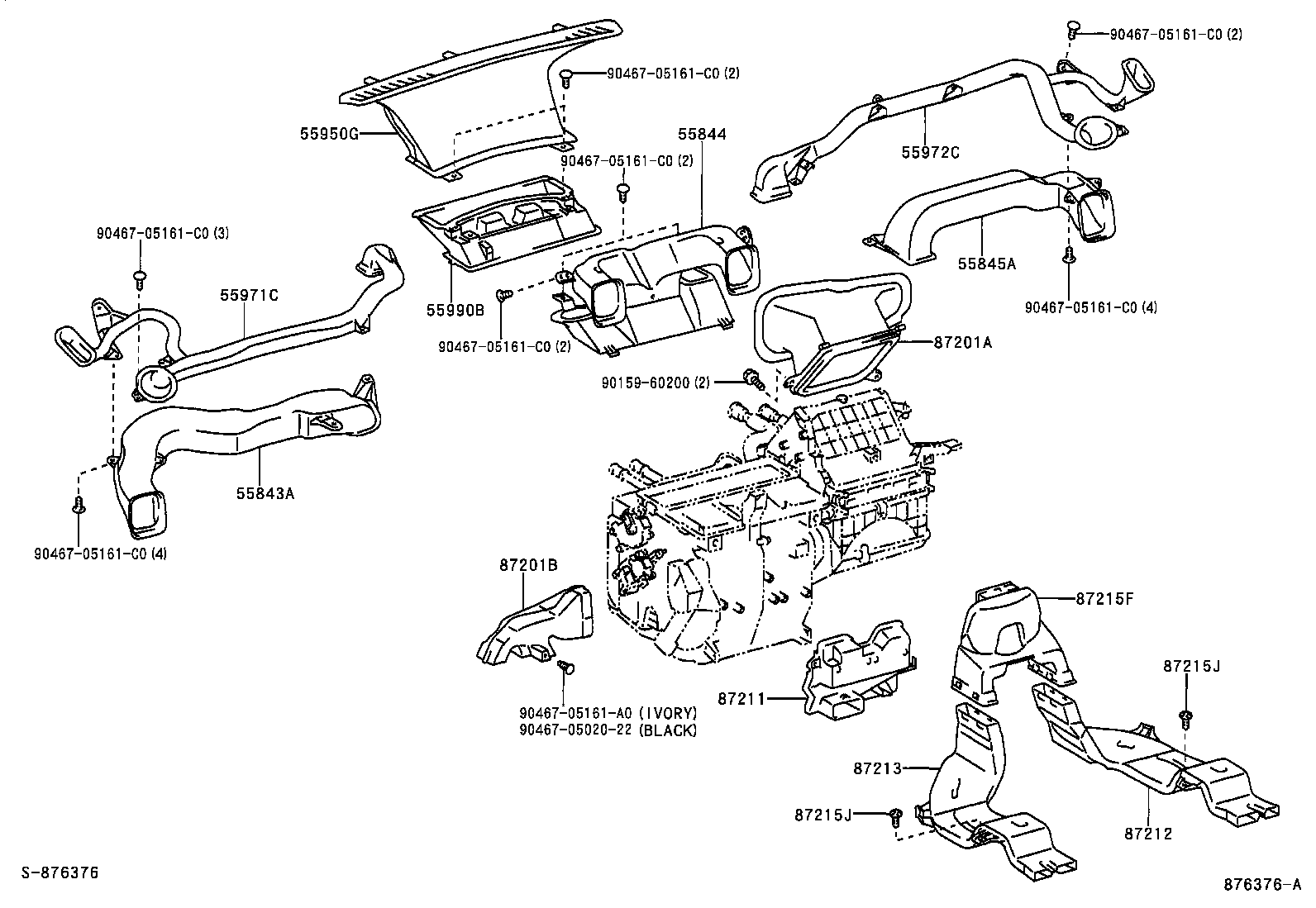

ILLUST NO. 2 OF 3(0308- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-47040 |
NHW20 |
1 | ||
| 55843-47040 |
NHW20 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-47040 |
NHW20 |
1 | ||
| 55844-47040 |
NHW20 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-47020 |
NHW20 |
1 | ||
| 55845-47020 |
NHW20 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-47020 |
NHW20 |
1 | ||
| 55950-47020 |
NHW20 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-47040 |
NHW20 |
1 | ||
| 55971-47040 |
NHW20 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-47040 |
NHW20 |
1 | ||
| 55972-47040 |
NHW20 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-47020 |
NHW20 |
1 | ||
| 55990-47020 |
NHW20 |
1 | ||
| 87201A - DUCT SUB-ASSY, AIR | ||||
| 87201-47060 |
NHW20 |
1 | ||
| 87201-47060 |
NHW20 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-47080 |
NHW20 |
1 | ||
| 87201-47080 |
NHW20 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-47070 |
NHW20 |
1 | ||
| 87211-47070 |
NHW20 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-47020 |
NHW20 |
1 | ||
| 87212-47020 |
NHW20 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-47020 |
NHW20 |
1 | ||
| 87213-47020 |
NHW20 |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-47020 |
NHW20 |
1 | ||
| 87215-47020 |
NHW20 |
1 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-08186C0 |
NHW20 BLACK,TRIM0#,1# |
2 | ||
| 90467-08186C0 |
NHW20 BLACK |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-08186C0 |
NHW20 BLACK,TRIM0#,1# |
2 | ||
| 90467-08186C0 |
NHW20 BLACK |
2 | ||
| Common parts | ||||
| 90159-60200 | ||||
| 90467-0502022 | ||||
| 90467-05161A0 | ||||
| 90467-05161C0 | ||||

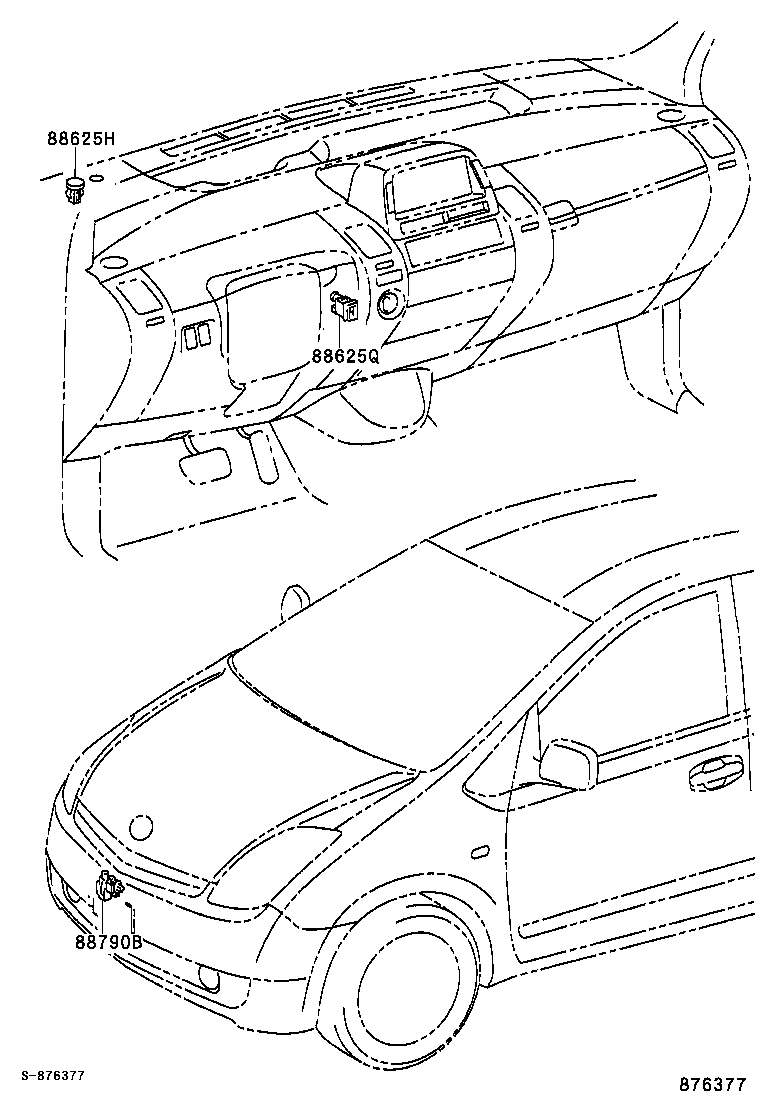

ILLUST NO. 3 OF 3(0308- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
NHW20 |
1 | ||
| 88625-47031 |
NHW20 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-58020 |
NHW20 |
1 | ||
| 88625-48070 |
NHW20 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NHW20 |
1 | ||
| 88790-22131 |
NHW20 |
1 | ||

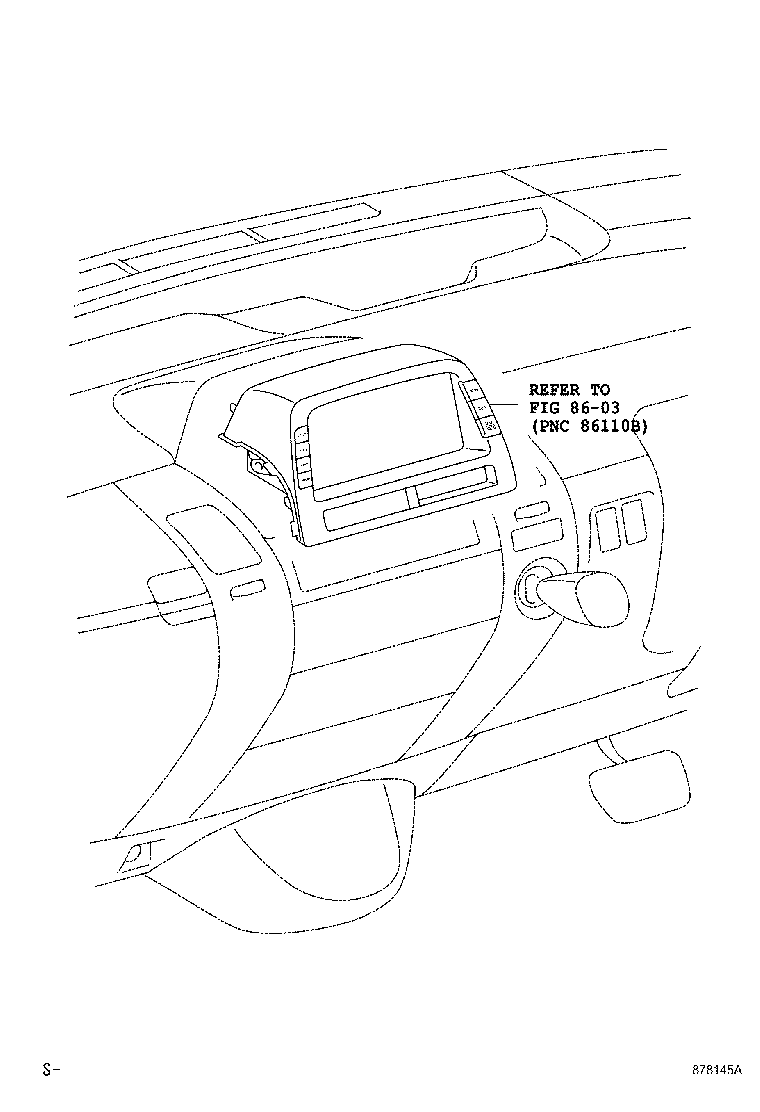

ILLUST NO. 1 OF 3(0308- )
Click highlighted areas on diagram
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8603 | ||||
