NHW20L-AHEEBA (2005)

Toyota Prius

Production Nov 2005 - Mar 2009
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

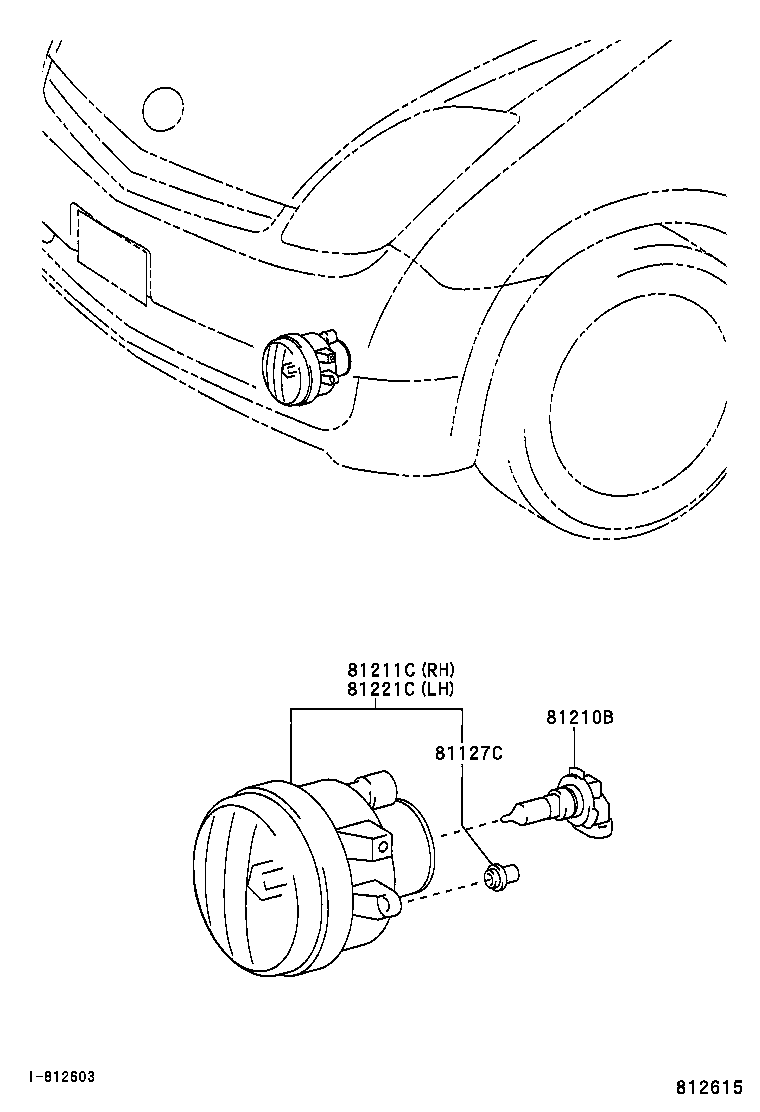

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81221C
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

NHW20

W(VSC)

 2
90075-10811

NHW20..USA

HEADLAMP-DISCHARGE(2 LIGHTS)

 2
81210B - BULB, FOG LAMP
90981-13047

NHW20..USA

12V 51W,HALOGEN,HEADLAMP-DISCHARGE(2 LIGHTS)

 2
90080-81040

NHW20

12V 51W,W(VSC)

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-52070

NHW20..USA

HEADLAMP-DISCHARGE(2 LIGHTS)

 1
81211-52070

NHW20

W(VSC)

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-52070

NHW20

W(VSC)

 1
81221-52070

NHW20..USA

HEADLAMP-DISCHARGE(2 LIGHTS)

 1
