NHW20L-AHEEBA (2005)
Toyota Prius

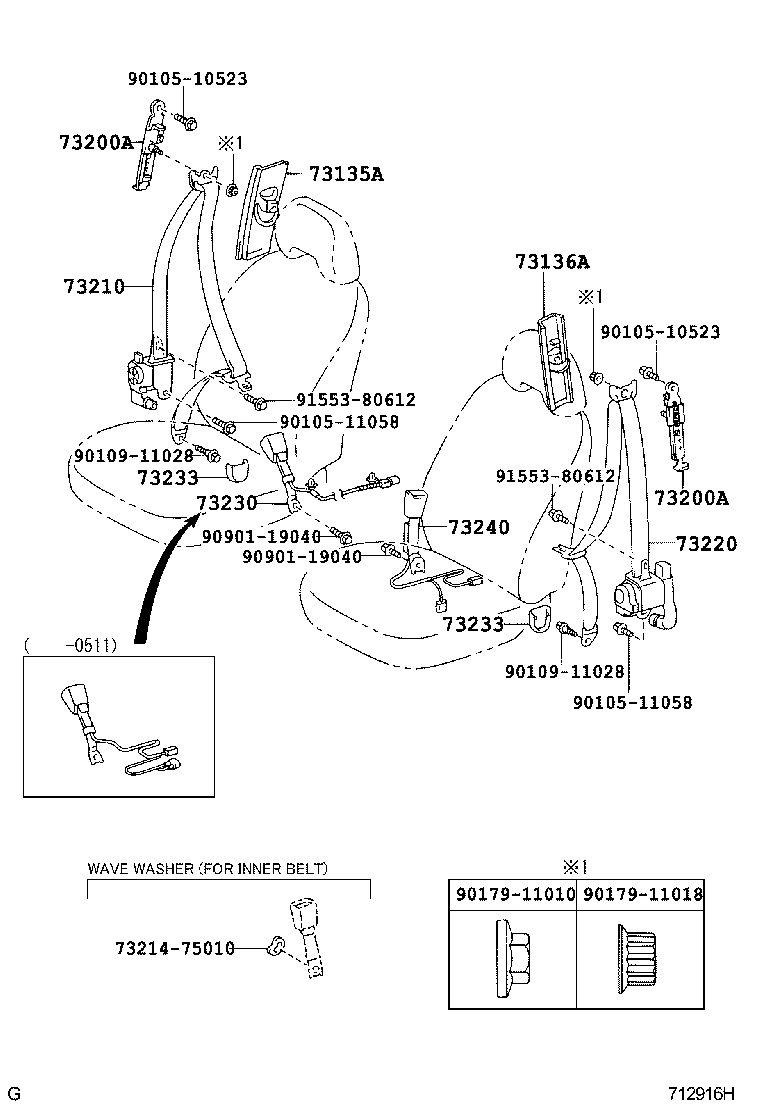

ILLUST NO. 1 OF 2(0308- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73023-33010E1 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73023-33010A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73023-33010B2 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73023-33010B2 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73024-33010B2 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73024-33010A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73024-33010B2 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73024-33010E1 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-51020 |
NHW20 |
2 | ||
| 73200-51020 |
NHW20 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-51020 |
NHW20 |
2 | ||
| 73200-51020 |
NHW20 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-47060B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73210-47060B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73210-47060E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73210-47060A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-47051B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73220-47050B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73220-47051E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73220-47050A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-47080B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73230-47080A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73230-47090E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73230-47090B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
NHW20 GREGE,TRIM4# |
2 | ||
| 73233-33010A1 |
NHW20 IVORY,TRIM0# |
2 | ||
| 73233-33010B8 |
NHW20 DK.GRAY,TRIM1# |
2 | ||
| 73233-33010P2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
NHW20 GREGE,TRIM4# |
2 | ||
| 73233-33010A1 |
NHW20 IVORY,TRIM0# |
2 | ||
| 73233-33010B8 |
NHW20 DK.GRAY,TRIM1# |
2 | ||
| 73233-33010P2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-47050A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73240-47051E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73240-47051B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73240-47050B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11028 | ||||
| 90179-11010 | ||||
| 90179-11018 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||
ILLUST NO. 2 OF 2(0308- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-47020 |
NHW20 |
1 | ||
| 73015-47010 |
NHW20 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-47010 |
NHW20 |
1 | ||
| 73016-47010 |
NHW20 |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-20010B1 |
NHW20 MD.GRAY,TRIM1#,RH |
1 | ||
| 73345-33020B2 |
NHW20 MD.GRAY,TRIM1#,LH |
1 | ||
| 73345-20010E1 |
NHW20 GREGE,TRIM4#,RH |
1 | ||
| 73345-20010A0 |
NHW20 IVORY,TRIM0#,RH |
1 | ||
| 73345-20010B1 |
NHW20 MD.GRAY,TRIM1#,RH |
1 | ||
| 73345-33020A0 |
NHW20 IVORY,TRIM0#,LH |
1 | ||
| 73345-33020E1 |
NHW20 GREGE,TRIM4#,LH |
1 | ||
| 73345-33020B2 |
NHW20 MD.GRAY,TRIM1#,LH |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-20010B1 |
NHW20 MD.GRAY,TRIM1#,RH |
1 | ||
| 73345-33020B2 |
NHW20 MD.GRAY,TRIM1#,LH |
1 | ||
| 73345-20010E1 |
NHW20 GREGE,TRIM4#,RH |
1 | ||
| 73345-20010A0 |
NHW20 IVORY,TRIM0#,RH |
1 | ||
| 73345-20010B1 |
NHW20 MD.GRAY,TRIM1#,RH |
1 | ||
| 73345-33020A0 |
NHW20 IVORY,TRIM0#,LH |
1 | ||
| 73345-33020E1 |
NHW20 GREGE,TRIM4#,LH |
1 | ||
| 73345-33020B2 |
NHW20 MD.GRAY,TRIM1#,LH |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-47010B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73350-47011B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73350-47010A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73350-47011E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-47040B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73360-47041E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73360-47040A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73360-47041B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73360-47040B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73360-47041B0 |
NHW20 GRAY,TRIM1# |
1 | ||
| 73360-47040A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73360-47041E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33020B7 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73373-33020B7 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73373-33020A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73373-33020E2 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-47010B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73380-47010E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73380-47010A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 73380-47010B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-47040B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73480-47040E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73480-47040B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73480-47040A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11047 | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| Linked diagrams | ||||
| 7102 | ||||
