NHW20L-AHEEBA (2005)
Toyota Prius
(0308- )

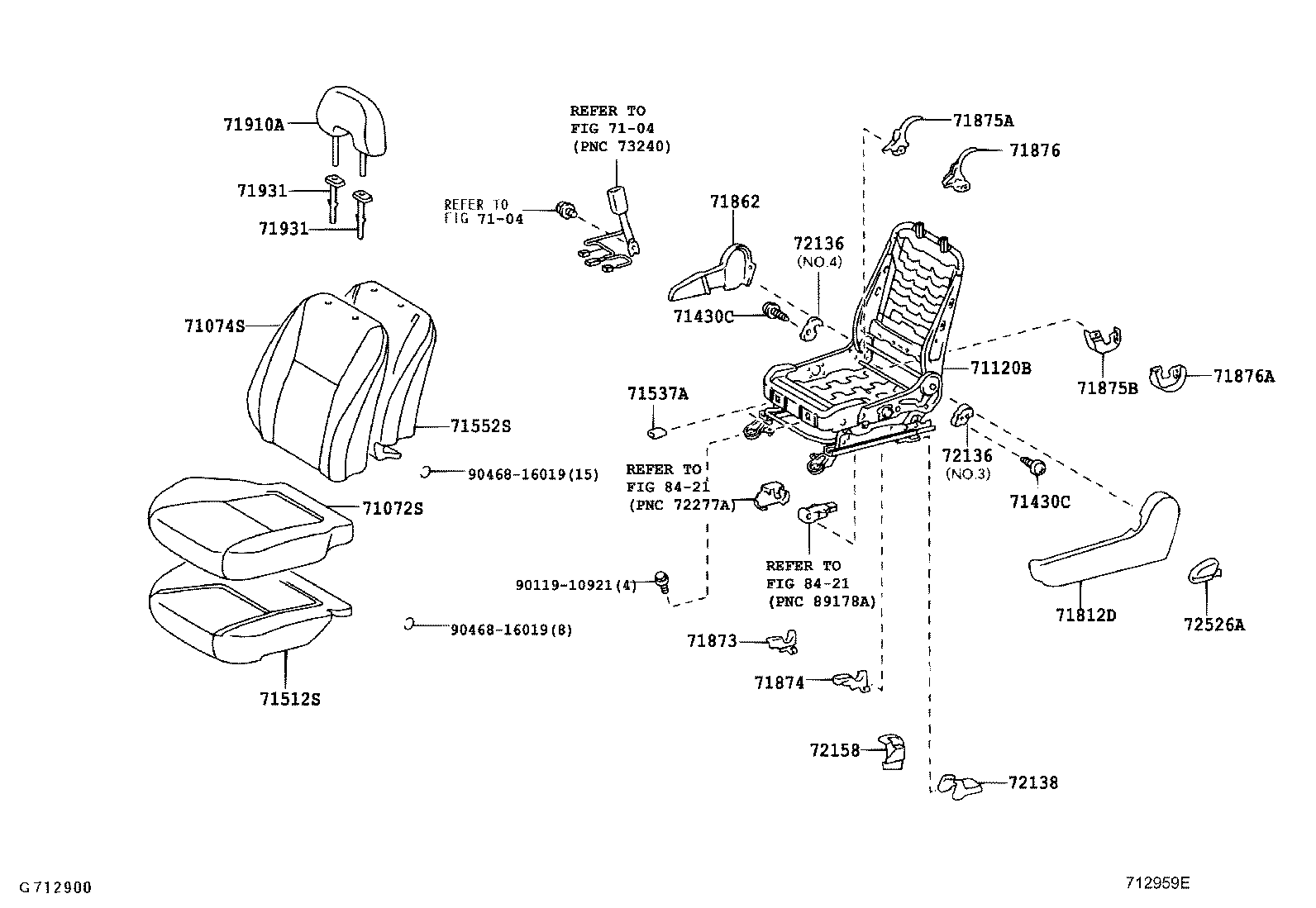

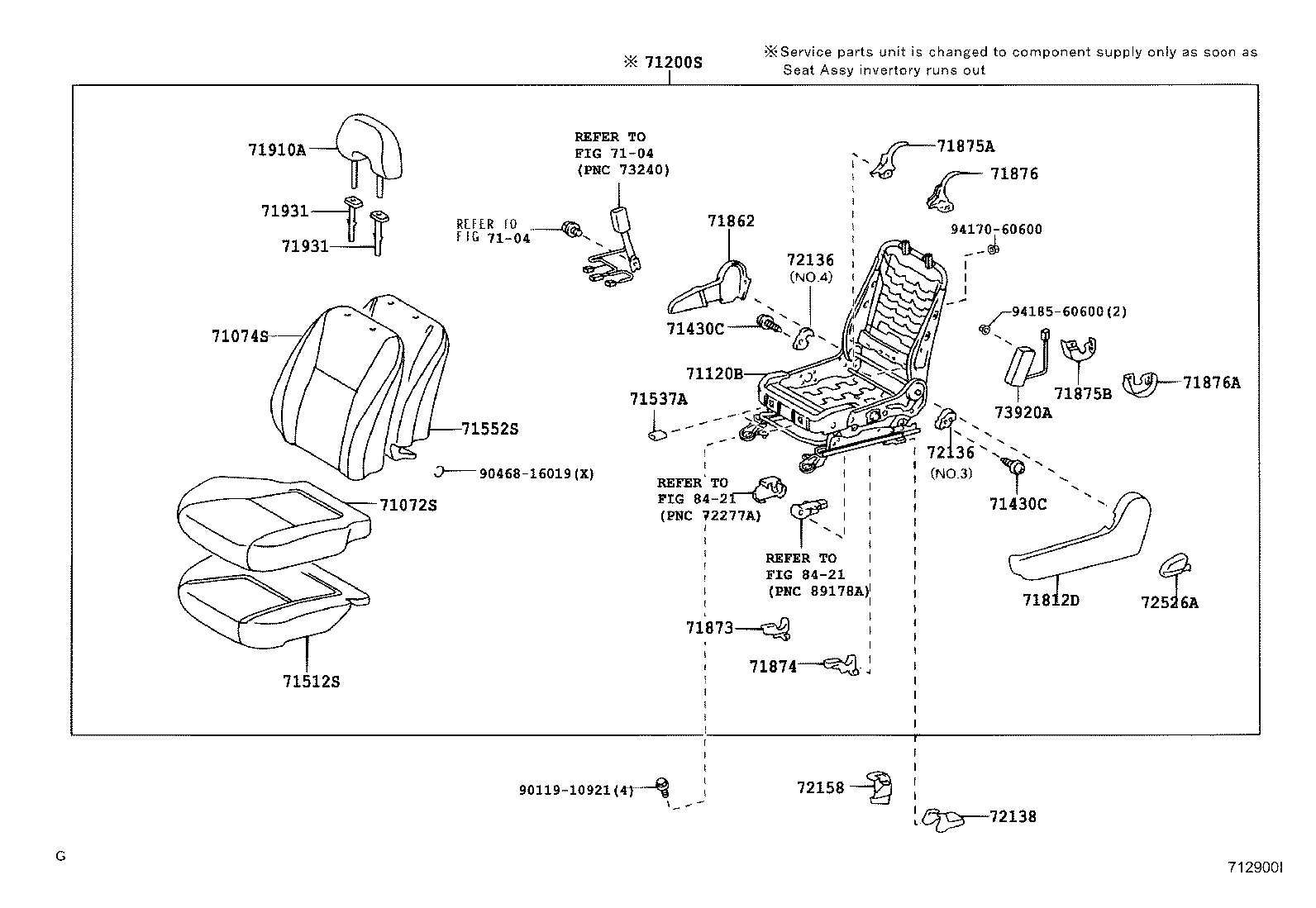

LH SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47100B2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD. GRAY,TRIM1# |
1 | ||
| 71072-47160B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-47160B1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-47070B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71072-47130E1 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71072-47100A2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71072-47160E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71072-47070A2 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71072-47160E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47130B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-47080B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71074-47030A1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM08 |
1 | ||
| 71074-47050B0 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71073-47140B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47060B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47050E1 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47120E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71074-47060E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47080A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71073-47120B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71073-47140E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47030B1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM18 |
1 | ||
| 71074-47060E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47080B0 |
NHW20..USA USA VALUE PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 71074-47060B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47050B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71074-47080E0 |
NHW20..USA USA VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71074-47050E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-47041 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-47041 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-47040 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71120-47031 |
NHW20..USA |
1 | ||
| 71120-47030 |
NHW20 |
1 | ||
| 71120-47041 |
NHW20..USA |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-47150B2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM1# |
1 | ||
| 71200-47150A2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71200-47310B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71200-47310E2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71200-47310B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71200-47240B1 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71200-47240E2 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71200-47310E2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71200-47400E0 |
NHW20..USA USA VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71200-47400B0 |
NHW20..USA USA VALUE PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 71200-47240B1 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71200-47240E2 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47050 |
NHW20 |
1 | ||
| 71512-47020 |
NHW20 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NHW20 |
4 | ||
| 71537-26010 |
NHW20 |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-47050 |
NHW20 |
1 | ||
| 71552-47050 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71552-47060 |
NHW20..USA |
1 | ||
| 71552-47080 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71552-47080 |
NHW20..USA |
1 | ||
| 71552-47080 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52140A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71812-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71812-52140E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71812-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47050B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71862-47050B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71862-47050E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71862-47050A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71873-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71873-68010E1 |
NHW20 GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71873-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71873-68010B1 |
NHW20 MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71874-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71874-68010E1 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-68010B1 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030E2 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71875-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NHW20 |
2 | ||
| 71875-58060 |
NHW20 |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030E3 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NHW20 |
2 | ||
| 71876-58060 |
NHW20 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47060B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47080E1 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71910-47090B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
2 | ||
| 71910-47060A2 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71910-47090B2 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
2 | ||
| 71910-47080B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72137-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72137-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72158-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72158-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72158-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B3 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72526-58040A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72526-58040B3 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72526-58040E3 |
NHW20 GREGE,TRIM4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47031 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920-47030 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 73920-47031 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73920-47031 |
NHW20..USA |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90468-16019 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||

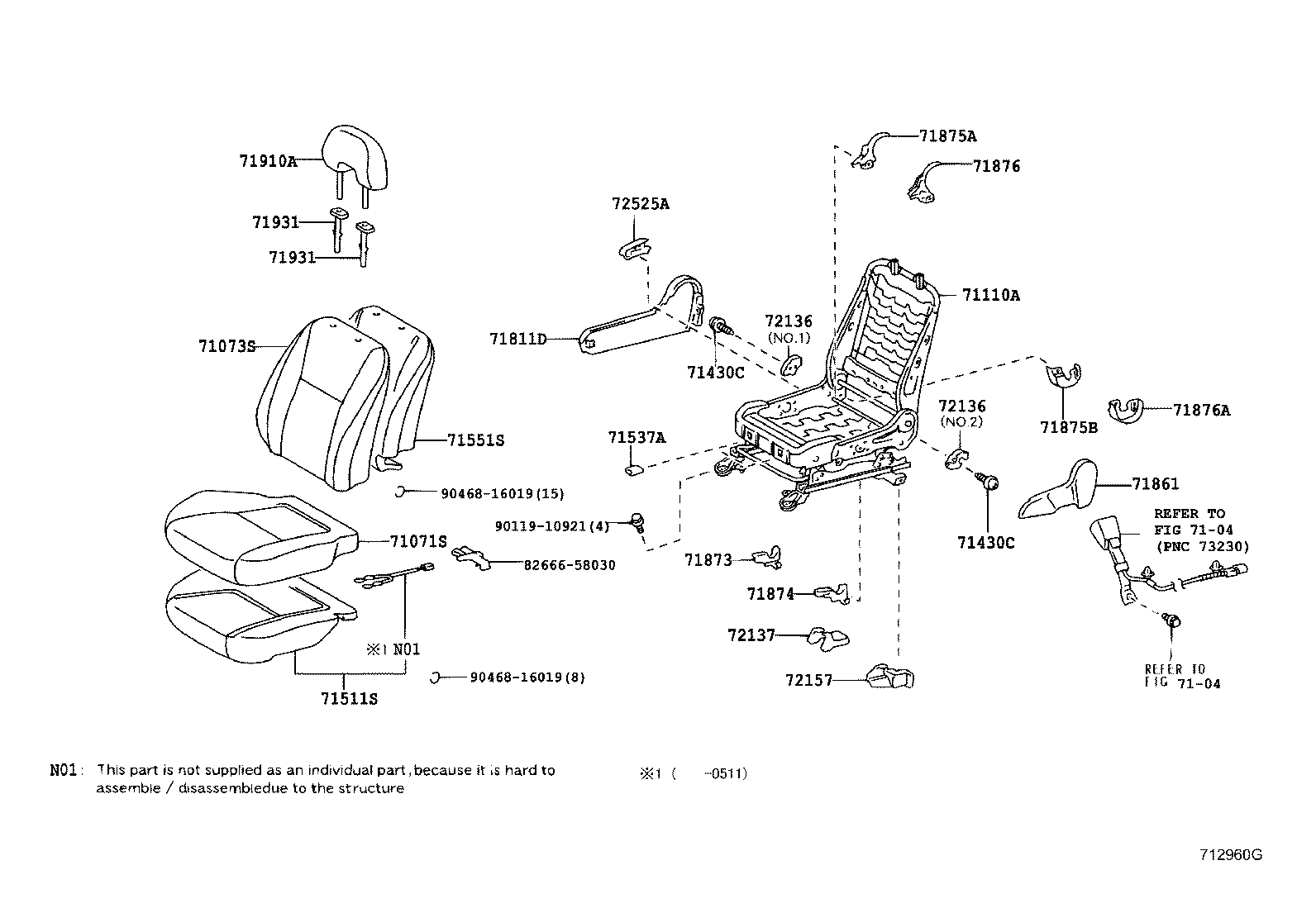

(0308- )
RH SEAT-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47110A2 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71071-47190B1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-47110B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71071-47190E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71071-47140B2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM1# |
1 | ||
| 71071-47160B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71071-47190E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71071-47140A2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71071-47190B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-47160E1 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47120E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71073-47150B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47140B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47120B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71073-47140E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47080A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71073-47090A1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71073-47090B1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM1# |
1 | ||
| 71073-47130B0 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71073-47150E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47130E1 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47150B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47180B0 |
NHW20..USA USA VALUE PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 71073-47080B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71073-47130B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71073-47150E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47180E0 |
NHW20..USA USA VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71073-47130E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-47160A2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71100-47160B2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM1# |
1 | ||
| 71100-47260B2 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71100-47260E3 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71100-47260B2 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71100-47260E3 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71100-47350B3 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71100-47460E0 |
NHW20..USA USA VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71100-47350B3 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 71100-47460B0 |
NHW20..USA USA VALUE PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 71100-47350E3 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71100-47350E3 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-47030 |
NHW20 |
1 | ||
| 71110-47100 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71110-47100 |
NHW20..USA |
1 | ||
| 71110-47040 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71110-47100 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71110-47090 |
NHW20..USA |
1 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47070 |
NHW20 |
1 | ||
| 71051-47020 |
NHW20 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NHW20 |
4 | ||
| 71537-26010 |
NHW20 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47100 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71551-47100 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71551-47070 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71551-47080 |
NHW20..USA |
1 | ||
| 71552-47030 |
NHW20 |
1 | ||
| 71551-47100 |
NHW20..USA |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71811-52140A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71811-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71811-52140E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52100B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71861-52100A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71861-52100E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71861-52100B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71873-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71873-68010E1 |
NHW20 GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71873-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71873-68010B1 |
NHW20 MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71874-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71874-68010E1 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-68010B1 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030E2 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71875-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NHW20 |
2 | ||
| 71875-58060 |
NHW20 |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030E3 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NHW20 |
2 | ||
| 71876-58060 |
NHW20 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47060B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47080E1 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71910-47090B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
2 | ||
| 71910-47060A2 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71910-47090B2 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
2 | ||
| 71910-47080B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72137-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72137-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72157-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72157-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72157-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030E3 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72525-58030B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72525-58030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72525-58030B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47031 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73910-47030 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 73910-47031 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 73910-47031 |
NHW20..USA |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90468-16019 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0308- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47100B2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD. GRAY,TRIM1# |
1 | ||
| 71072-47160B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-47160B1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-47070B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71072-47130E1 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71072-47100A2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71072-47160E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71072-47070A2 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71072-47160E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47130B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-47080B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71074-47030A1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM08 |
1 | ||
| 71074-47050B0 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71073-47140B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47060B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47050E1 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47120E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71074-47060E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47080A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71073-47120B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71073-47140E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47030B1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM18 |
1 | ||
| 71074-47060E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47080B0 |
NHW20..USA USA VALUE PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 71074-47060B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47050B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71074-47080E0 |
NHW20..USA USA VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71074-47050E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-47041 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-47041 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71120-47040 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71120-47031 |
NHW20..USA |
1 | ||
| 71120-47030 |
NHW20 |
1 | ||
| 71120-47041 |
NHW20..USA |
1 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47050 |
NHW20 |
1 | ||
| 71512-47020 |
NHW20 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NHW20 |
4 | ||
| 71537-26010 |
NHW20 |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-47050 |
NHW20 |
1 | ||
| 71552-47050 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71552-47060 |
NHW20..USA |
1 | ||
| 71552-47080 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71552-47080 |
NHW20..USA |
1 | ||
| 71552-47080 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52140A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71812-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71812-52140E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71812-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47050B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71862-47050B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71862-47050E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71862-47050A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71873-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71873-68010E1 |
NHW20 GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71873-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71873-68010B1 |
NHW20 MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71874-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71874-68010E1 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-68010B1 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030E2 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71875-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NHW20 |
2 | ||
| 71875-58060 |
NHW20 |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030E3 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NHW20 |
2 | ||
| 71876-58060 |
NHW20 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47060B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47080E1 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71910-47090B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
2 | ||
| 71910-47060A2 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71910-47090B2 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
2 | ||
| 71910-47080B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72137-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72137-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72158-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72158-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72158-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040B3 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72526-58040A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72526-58040B3 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72526-58040E3 |
NHW20 GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(0308- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47110A2 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71071-47190B1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-47110B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71071-47190E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71071-47140B2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM1# |
1 | ||
| 71071-47160B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71071-47190E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71071-47140A2 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71071-47190B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-47160E1 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47120E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71073-47150B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47140B1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47120B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71073-47140E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47080A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71073-47090A1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0# |
1 | ||
| 71073-47090B1 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,MD.GRAY,TRIM1# |
1 | ||
| 71073-47130B0 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
1 | ||
| 71073-47150E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47130E1 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
1 | ||
| 71073-47150B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47180B0 |
NHW20..USA USA VALUE PACKAGE,MD.GRAY,TRIM1# |
1 | ||
| 71073-47080B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71073-47130B0 |
NHW20..USA MD.GRAY,TRIM1# |
1 | ||
| 71073-47150E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47180E0 |
NHW20..USA USA VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71073-47130E1 |
NHW20..USA GREGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-47030 |
NHW20 |
1 | ||
| 71110-47100 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71110-47100 |
NHW20..USA |
1 | ||
| 71110-47040 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71110-47100 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71110-47090 |
NHW20..USA |
1 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71430C - CLIP | ||||
| 90467-09087 |
NHW20 |
4 | ||
| 90467-0908722 |
NHW20 BLACK |
4 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47070 |
NHW20 |
1 | ||
| 71051-47020 |
NHW20 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NHW20 |
4 | ||
| 71537-26010 |
NHW20 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47100 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71551-47100 |
NHW20..USA SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD) |
1 | ||
| 71551-47070 |
NHW20 SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN |
1 | ||
| 71551-47080 |
NHW20..USA |
1 | ||
| 71552-47030 |
NHW20 |
1 | ||
| 71551-47100 |
NHW20..USA |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71811-52140A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71811-52140B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71811-52140E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52100B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71861-52100A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 71861-52100E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 71861-52100B1 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71873-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71873-68010E1 |
NHW20 GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71873-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71873-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71873-68010B1 |
NHW20 MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-21010A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71874-21010E4 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71874-21010B0 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71874-21010B0 |
NHW20..USA MD.GRAY,TRIM1#,RH SEAT |
1 | ||
| 71874-21010E4 |
NHW20..USA GREGE,TRIM4#,RH SEAT |
1 | ||
| 71874-68010E1 |
NHW20 GREGE,TRIM4#,LH SEAT |
1 | ||
| 71874-68010B1 |
NHW20 MD.GRAY,TRIM1#,LH SEAT |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71875-52030E2 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71875-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
NHW20 |
2 | ||
| 71875-58060 |
NHW20 |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030A0 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71876-52030B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71876-52030E3 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
NHW20 |
2 | ||
| 71876-58060 |
NHW20 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47060B2 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47080E1 |
NHW20 GREGE,TRIM4# |
2 | ||
| 71910-47090B2 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),MD.GRAY,TRIM1# |
2 | ||
| 71910-47060A2 |
NHW20 IVORY,TRIM0# |
2 | ||
| 71910-47090B2 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20..USA SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4# |
2 | ||
| 71910-47080B0 |
NHW20 MD.GRAY,TRIM1# |
2 | ||
| 71910-47090E1 |
NHW20 SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020A0 |
NHW20 W(LOCK)&W(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020B6 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71930-42020E1 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-52030B7 |
NHW20 W(LOCK)&W(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
NHW20 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A0 |
NHW20 W(LOCK)&W/O(BUTTON),IVORY,TRIM0# |
2 | ||
| 71930-52030E0 |
NHW20 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B6 |
NHW20 W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1# |
2 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47020 |
NHW20 NO.2 |
1 | ||
| 72136-47010 |
NHW20 NO.1 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47040 |
NHW20 NO.4 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72136-47030 |
NHW20 NO.3 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72137-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72137-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72137-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72157-47030B0 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72157-47030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72157-47030E0 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030E3 |
NHW20 GREGE,TRIM4# |
1 | ||
| 72525-58030B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| 72525-58030A0 |
NHW20 IVORY,TRIM0# |
1 | ||
| 72525-58030B2 |
NHW20 MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
