NHW20L-AHEEBA (2005)
Toyota Prius

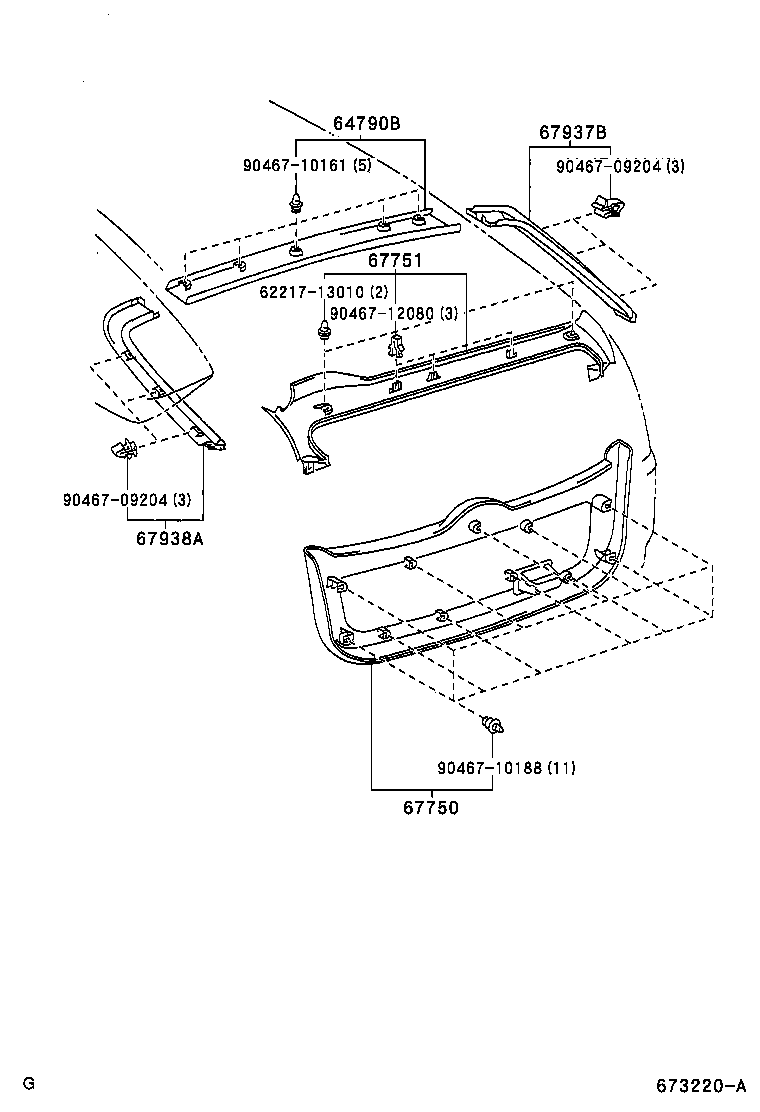

ILLUST NO. 1 OF 2(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-47010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 64790-47010C0 |
NHW20 BLACK,TRIM1#,4# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-47010C0 |
NHW20 BLACK,TRIM1#,4# |
1 | ||
| 67750-47010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-47010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67751-47020C0 |
NHW20 BLACK,TRIM1#,4# |
1 | ||
| 67751-47020C0 |
NHW20 WITH(INTERMITTENT REAR WIPER),BLACK,TRIM0#,1# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-47010C0 |
NHW20 BLACK,TRIM1#,4# |
1 | ||
| 67937-47010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-47010C0 |
NHW20 BLACK,TRIM0#,1# |
1 | ||
| 67938-47010C0 |
NHW20 BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 90467-09204 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| 90467-12080 | ||||
ILLUST NO. 2 OF 2(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-47020 |
NHW20 NO.2 |
1 | ||
| 68294-47010 |
NHW20 NO.1 |
1 | ||
| 68294-47020 |
NHW20 NO.2 |
1 | ||
| 68294-47010 |
NHW20 NO.1 |
1 | ||
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-47020 |
NHW20 NO.2 |
1 | ||
| 68294-47010 |
NHW20 NO.1 |
1 | ||
| 68294-47020 |
NHW20 NO.2 |
1 | ||
| 68294-47010 |
NHW20 NO.1 |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-47030 |
NHW20 |
1 | ||
| 64818-47030 |
NHW20 |
1 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-47020 |
NHW20 |
1 | ||
| 64818-47020 |
NHW20 |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-47030 |
NHW20 |
1 | ||
| 64819-47030 |
NHW20 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-47020 |
NHW20 |
1 | ||
| 64819-47020 |
NHW20 |
1 | ||
| 64821 - GLASS, BACK WINDOW FIX | ||||
| 64821-47020 |
NHW20 |
1 | ||
| 64821-47021 |
NHW20 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-47090 |
NHW20 WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 67005-47100 |
NHW20 |
1 | ||
| 67005-47090 |
NHW20 |
1 | ||
| 67005-47160 |
NHW20 BACK GUIDE MONITOR-WITH |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09125 |
NHW20 |
2 | ||
| 90541-09125 |
NHW20 |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-47010 |
NHW20 |
2 | ||
| 67281-47010 |
NHW20 |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-47010 |
NHW20 |
2 | ||
| 67293-47010 |
NHW20 |
2 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-47010 |
NHW20 |
1 | ||
| 67372-47010 |
NHW20 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-47012 |
NHW20 |
1 | ||
| 67881-47010 |
NHW20 |
1 | ||
| 67881-47011 |
NHW20 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-47040 |
NHW20 *UVCEHT,T=3.1,GREEN |
1 | ||
| 68105-47051 |
NHW20 |
1 | ||
| 68105-47050 |
NHW20 *UVCEHT,T=3.1,GREEN,WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-47030 |
NHW20 |
1 | ||
| 68294-47030 |
NHW20 |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-47060 |
NHW20 |
2 | ||
| 75573-47060 |
NHW20 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-47060 |
NHW20 |
2 | ||
| 75573-47060 |
NHW20 |
2 | ||
| 75573H - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-47070 |
NHW20 |
2 | ||
| 75573-47070 |
NHW20 |
2 | ||
| 75573H - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-47070 |
NHW20 |
2 | ||
| 75573-47070 |
NHW20 |
2 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-47010 |
NHW20 |
1 | ||
| 75575-47010 |
NHW20 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-50232 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
