NHW20L-AHEEBA (2005)

Toyota Prius

Production Nov 2005 - Mar 2009
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

diagram 5102 5102 52115A 52116A 52131A 52147B 52147B 52161C 52161C 52161C 52611 5302 5302 5302 5302 5302 5302 5305 5305 5311947010 9015950311 9015950311 9015960431 9015960431 9017608054 9017608054
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-47010

NHW20

 1
52115-47010

NHW20

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-47010

NHW20

 1
52116-47010

NHW20

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-47070

NHW20..USA

 1
52131-47070

NHW20..USA

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-21010

NHW20

 2
52147-21010

NHW20

 2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-21010

NHW20

 2
52147-21010

NHW20

 2
52161C - PIECE, FRONT BUMPER
52161-16010

NHW20

 3
52161-16010

NHW20

 3
52161C - PIECE, FRONT BUMPER
52161-16010

NHW20

 3
52161-16010

NHW20

 3
52161C - PIECE, FRONT BUMPER
52161-16010

NHW20

 3
52161-16010

NHW20

 3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-47030

NHW20

 1
52611-47030

NHW20

 1
Common parts
53119-47010
90159-50311
90159-60431
90176-08054
Linked diagrams
5102
5302
5305

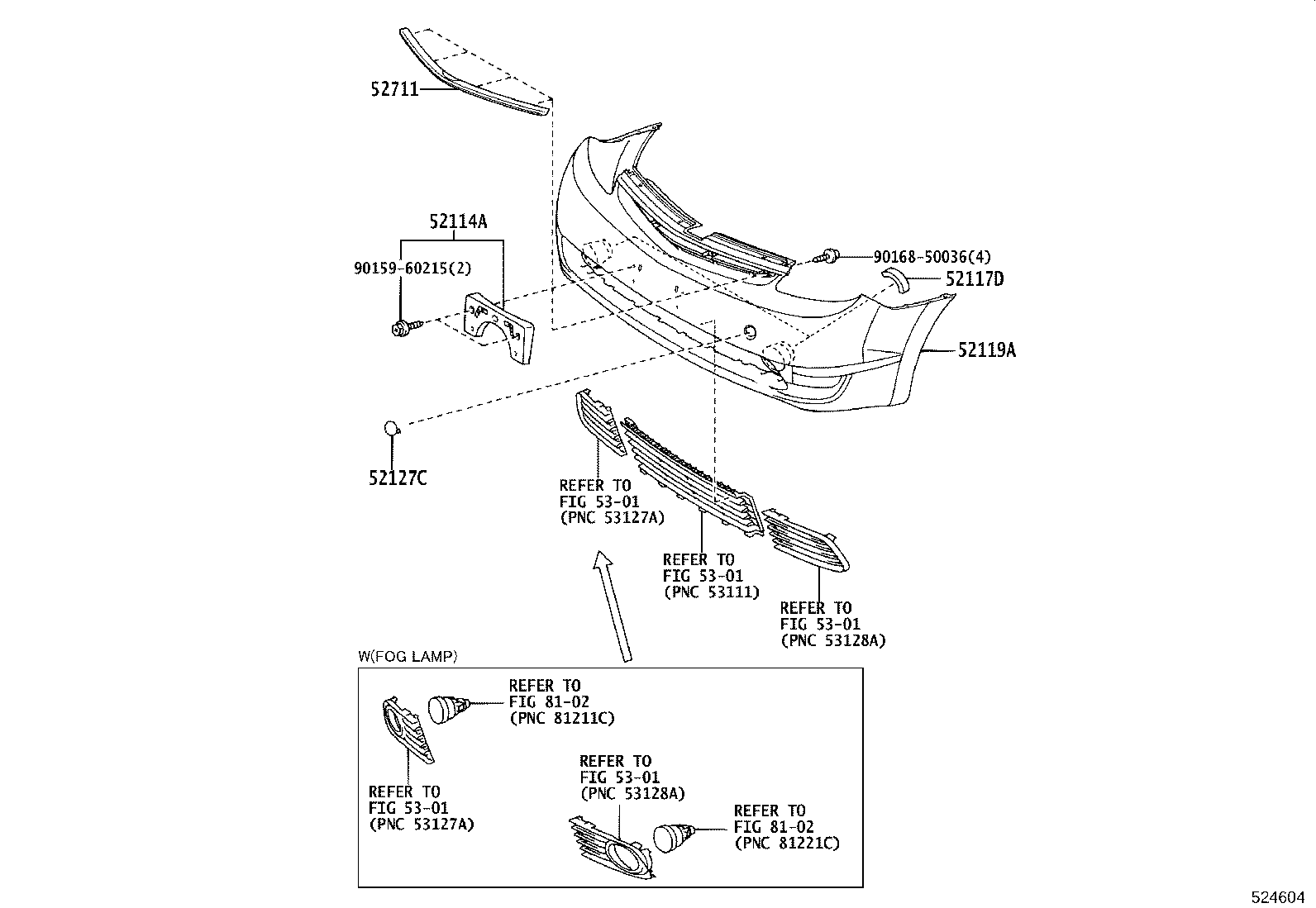

ILLUST NO. 2 OF 2(0308- )

Click highlighted areas on diagram

diagram 52114A 52117D 52119A 52127C 52711 5301 5301 5301 5301 5301 8102 8102 9015960215 9016850036
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-47040

NHW20

 1
52114-47040

NHW20

 1
52117D - SUPPORT, FRONT BUMPER SIDE, LOWER
52117-47010

NHW20

 2
52117-47010

NHW20

 2
52119A - COVER, FRONT BUMPER
52119-47903

NHW20

 1
52119-47903

NHW20

 1
52127C - COVER, FRONT BUMPER HOLE
52127-47010J1

NHW20

BLUE M.M.,8S2

 1
52127-47010A0

NHW20

SUPER WHITE 2,040

 1
52127-47010C0

NHW20

BLACK,202

 1
52127-47010E0

NHW20

BRONZE M.M.,4S2

 1
52127-47010C0

NHW20

BLACK,202

 1
52127-47010J0

NHW20

BLUE MC.,8M6

 1
52127-47010B2

NHW20

GRAY ME.,1G3

 1
52127-47010G0

NHW20

JADE GREEN M.M.,6S9

 1
52127-47010D1

NHW20

RED M.M.,3R3

 1
52127-47010E0

NHW20

BRONZE M.M.,4S2

 1
52127-47010D0

NHW20

DK. RED M.M.,3Q3

 1
52127-47010G1

NHW20

LT.GREEN ME.,6U0

 1
52127-47010B1

NHW20

SILVER ME.,1F7

 1
52127-47010A0

NHW20

SUPER WHITE 2,040

 1
52127-47010J1

NHW20

BLUE M.M.,8S2

 1
52127-47010B0

NHW20

SILVER ME.,1C0

 1
52711 - MOULDING, FRONT BUMPER
52711-47010C0

NHW20

BLACK,202

 1
52711-47010B0

NHW20

SILVER ME.,1C0

 1
52711-47010A0

NHW20

SUPER WHITE 2,040

 1
52711-47010D0

NHW20

DK. RED M.M.,3Q3

 1
52711-47010E0

NHW20

BRONZE M.M.,4S2

 1
52711-47010G0

NHW20

JADE GREEN M.M.,6S9

 1
52711-47010J1

NHW20

BLUE M.M.,8S2

 1
52711-47020

NHW20

PLATED

 1
Common parts
90159-60215
90168-50036
Linked diagrams
5301
8102
