ZVW35L-BHXGBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

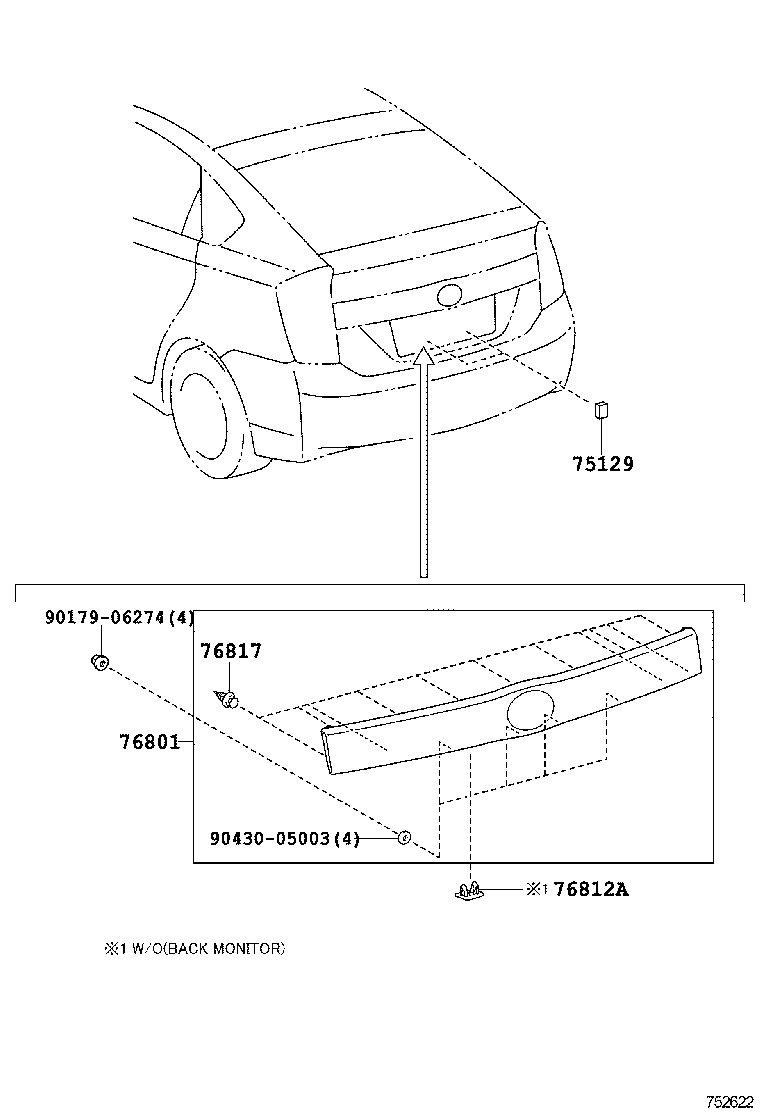

Click highlighted areas on diagram

diagram 75129 76801 76812A 76817 9017906274 9043005003
Part # Description Qty Price
75129 - CUSHION, REAR LICENSE PLATE
75129-13020

ZVW35

 2
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-47070B0

ZVW35

SILVER ME.,8W1

 1
76801-47070B6

ZVW35

ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1

 1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-47030

ZVW35..(L,S)..USA

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
75867-33040

ZVW35

 11
Common parts
90179-06274
90430-05003
