ZVW35L-BHXEBK (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

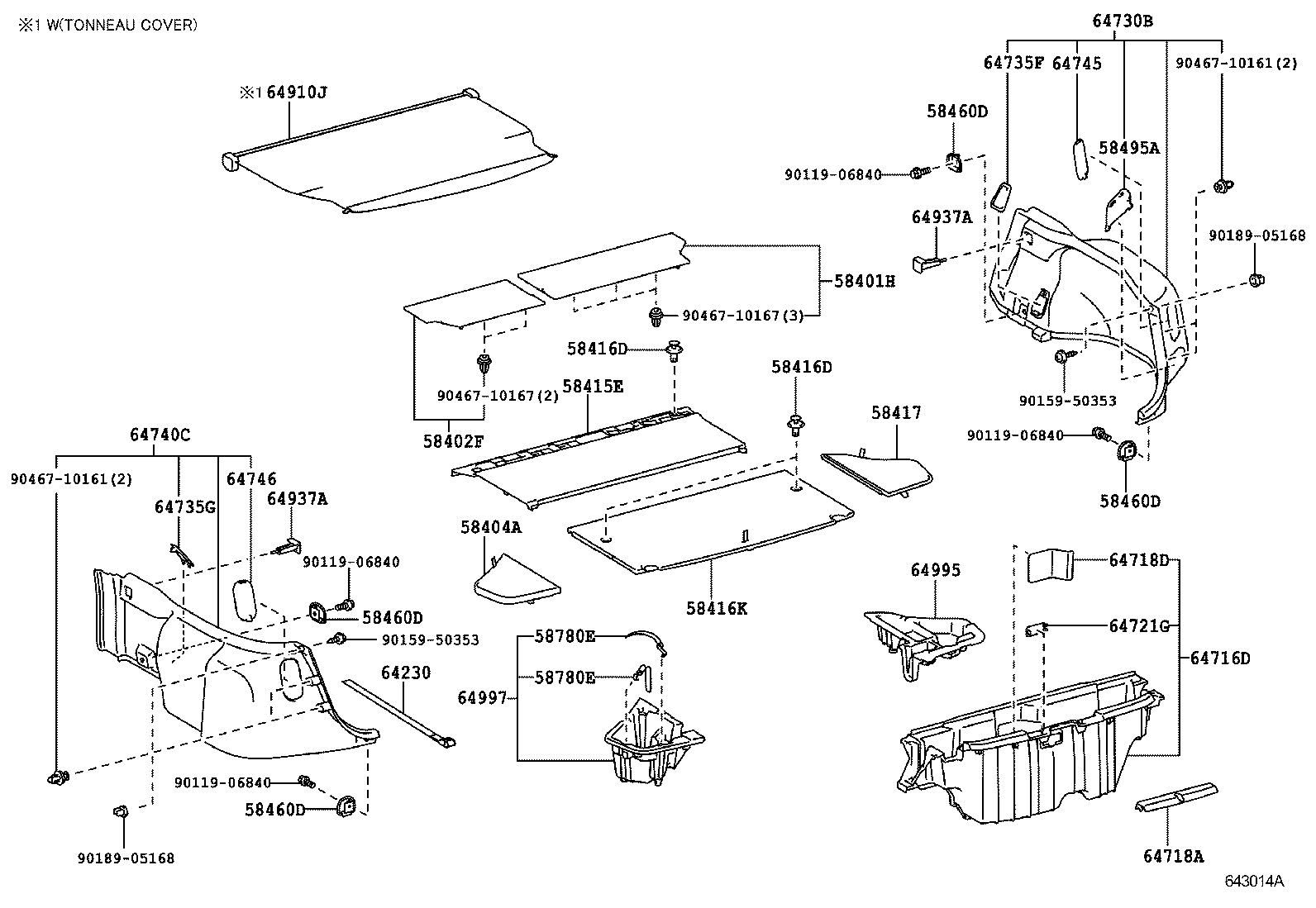

Click highlighted areas on diagram

diagram 58401H 58402F 58404A 58415E 58416D 58416D 58416K 58417 58460D 58460D 58460D 58460D 58495A 58780E 58780E 64230 64716D 64718A 64718D 64721G 64730B 64735F 64735G 64740C 64745 64746 64910J 64937A 64937A 64995 64997 9011906840 9011906840 9011906840 9011906840 9015950353 9015950353 9018905168 9018905168 9046710161 9046710161 9046710167 9046710167
Part # Description Qty Price
58401H - BOARD SUB-ASSY, REAR FLOOR, NO.1
58401-47030B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58401-47030B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58402F - BOARD SUB-ASSY, REAR FLOOR, NO.2
58402-47030B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58402-47030B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58404A - BOARD SUB-ASSY, REAR FLOOR, NO.4
58404-47010B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58404-47010B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58415E - BOARD, REAR FLOOR, NO.1
58415-47070B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58415-47070B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58416D - CLIP, REAR FLOOR BOARD
64726-47010B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 3
64726-47010B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 3
58416D - CLIP, REAR FLOOR BOARD
64726-47010B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 3
64726-47010B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 3
58416K - BOARD, REAR FLOOR, NO.2
58416-47070B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58416-47070B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58417 - BOARD, REAR FLOOR, NO.3
58490-47100B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58490-47100B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW35

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW35

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW35

 4
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

ZVW35

 4
58495A - PLATE, REAR FLOOR BOARD, UPPER NO.3
58495-47020B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
58495-47020B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
58780E - BAND ASSY, TOOL BOX
58780-47010

ZVW35

 2
58780E - BAND ASSY, TOOL BOX
58780-47010

ZVW35

 2
64230 - NET ASSY, ROOM PARTITION
64230-47020

ZVW35

 1
64716D - COVER, DECK TRIM, REAR
64716-47090B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64716-47090B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64718A - COVER, DECK TRIM SERVICE HOLE
64718-47060B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64718-47060B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64718D - COVER, DECK TRIM SERVICE HOLE
64718-47070B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64718-47070B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64721G - COVER, DECK TRIM, NO.1
64721-47030B0

ZVW35

LT.GRAY,TRIM1#,4#,6#

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-47100B1

ZVW35

LT.GRAY,TRIM1#,4#,6#

 1
64735F - COVER, DECK TRIM SIDE SERVICE HOLE, RH
64735-47010B0

ZVW35

LT.GRAY,TRIM1#,4#,6#

 1
64735G - COVER, DECK TRIM SIDE SERVICE HOLE, LH
64735-47020B0

ZVW35

LT.GRAY,TRIM1#,4#,6#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-47130B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64740-47130B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-47030B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64745-47030B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64745-47030B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64745-47030B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64910J - COVER ASSY, TONNEAU
64910-47020B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64937A - CAP, TONNEAU COVER HOLDER, NO.1
64937-47010B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 2
64937-47010B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 2
64937A - CAP, TONNEAU COVER HOLDER, NO.1
64937-47010B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 2
64937-47010B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 2
64995 - BOX, DECK FLOOR, RH
64995-47020B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64995-47020B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
64997 - BOX, DECK FLOOR, LH
64997-47030B0

ZVW35..L

LT.GRAY,TRIM1#,4#,6#

 1
64997-47030B0

ZVW35..G,S

LT.GRAY,TRIM1#,2#,4#,6#

 1
Common parts
90119-06840
90159-50353
90189-05168
90467-10161
90467-10167
