ZVW35L-BHXEBK (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

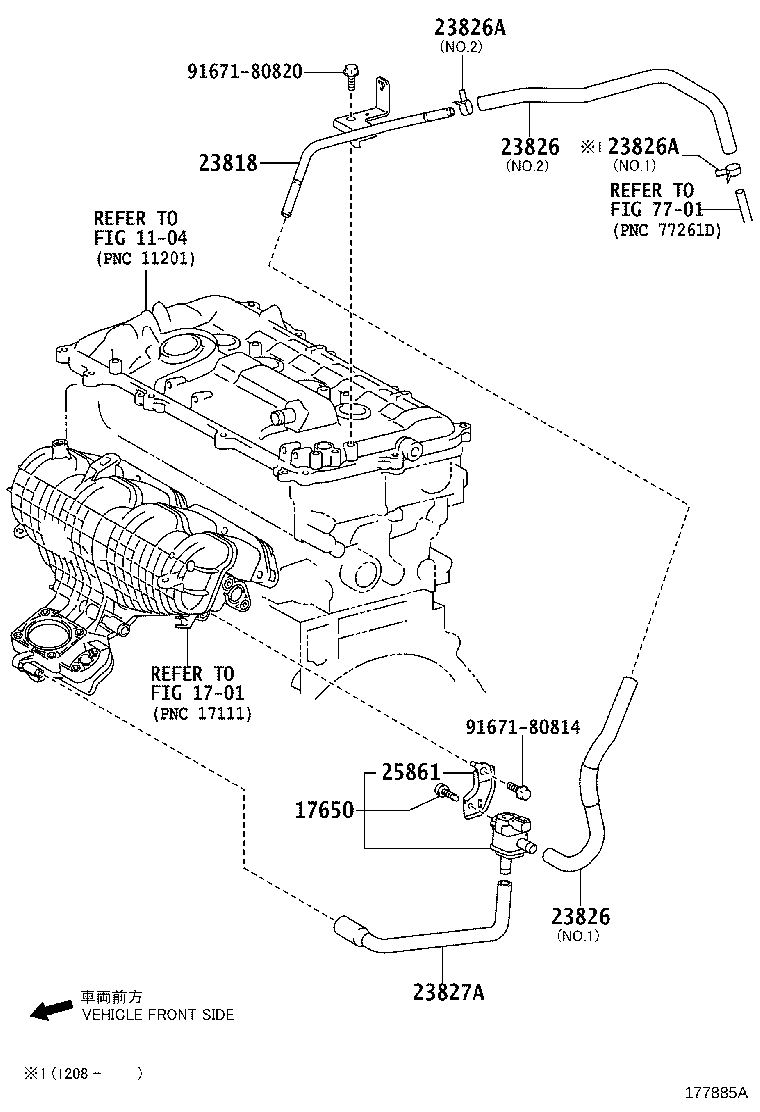

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-37020 |
2ZRFXE..ZVW35 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37130 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 23826-37090 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37130 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 23826-37090 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96136-41901 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 90467-19021 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96136-41901 |
2ZRFXE..ZVW35 NO.2 |
1 | ||
| 90467-19021 |
2ZRFXE..ZVW35 NO.1 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37040 |
2ZRFXE..ZVW35 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-37020 |
2ZRFXE..ZVW35 |
1 | ||
| Common parts | ||||
| 91671-80814 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 7701 | ||||
