ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

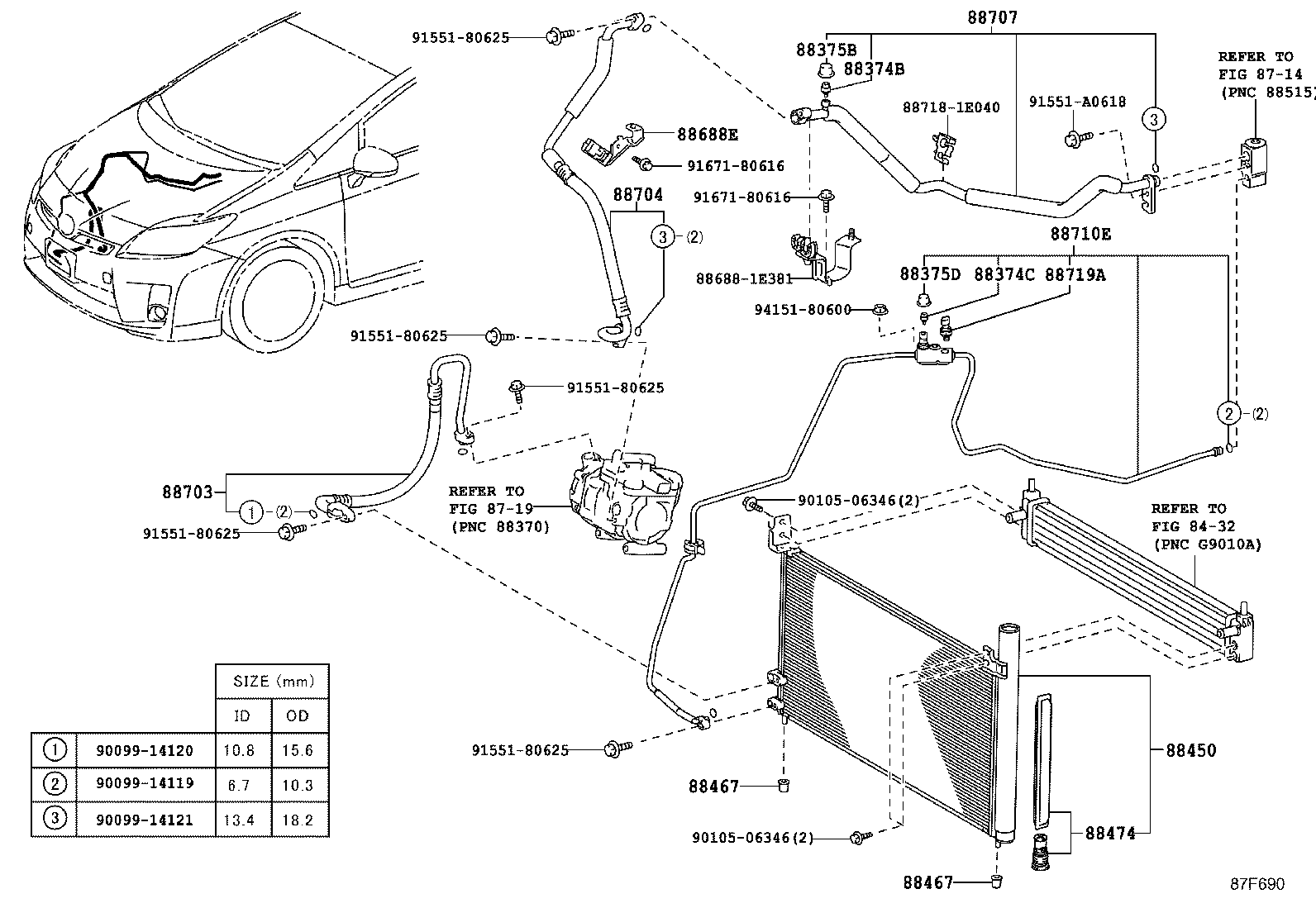

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZVW35 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZVW35 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZVW35 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZVW35 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-47150 |
ZVW35 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZVW35 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZVW35 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47030 |
ZVW35 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-47150 |
ZVW35 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-47040 |
ZVW35 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-47090 |
ZVW35 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-47041 |
ZVW35 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-47150 |
ZVW35 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 88688-1E381 | ||||
| 88718-1E040 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06346 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8432 | ||||
| 8714 | ||||
| 8719 | ||||
