ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

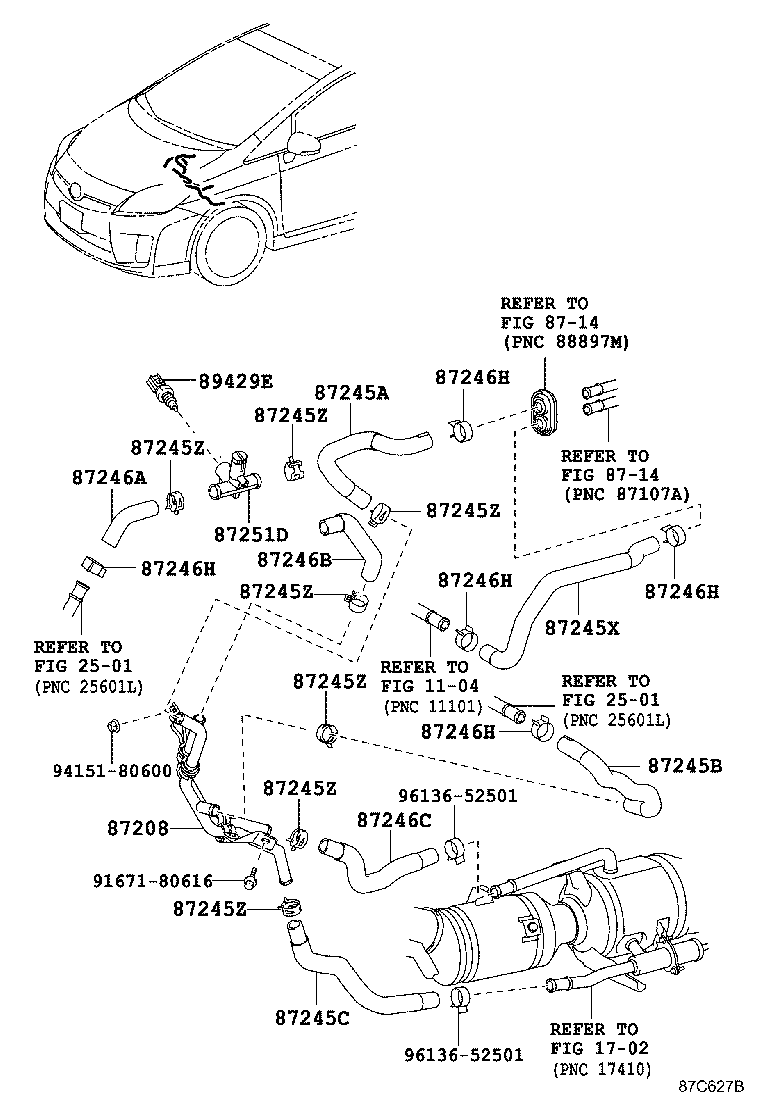

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-47050 |
ZVW35 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-47320 |
ZVW35 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-47310 |
ZVW35 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-47300 |
ZVW35 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-47260 |
ZVW35 |
1 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 90467-22011 |
ZVW35 |
7 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-47270 |
ZVW35 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-47280 |
ZVW35 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-47290 |
ZVW35 |
1 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ZVW35 |
5 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ZVW35 |
5 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ZVW35 |
5 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ZVW35 |
5 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
ZVW35 |
5 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87251-47020 |
ZVW35 |
1 | ||
| 89429E - SENSOR, WATER TEMPERATURE | ||||
| 89429-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| 96136-52501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1702 | ||||
| 2501 | ||||
| 8714 | ||||
