ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1201- )

Click highlighted areas on diagram

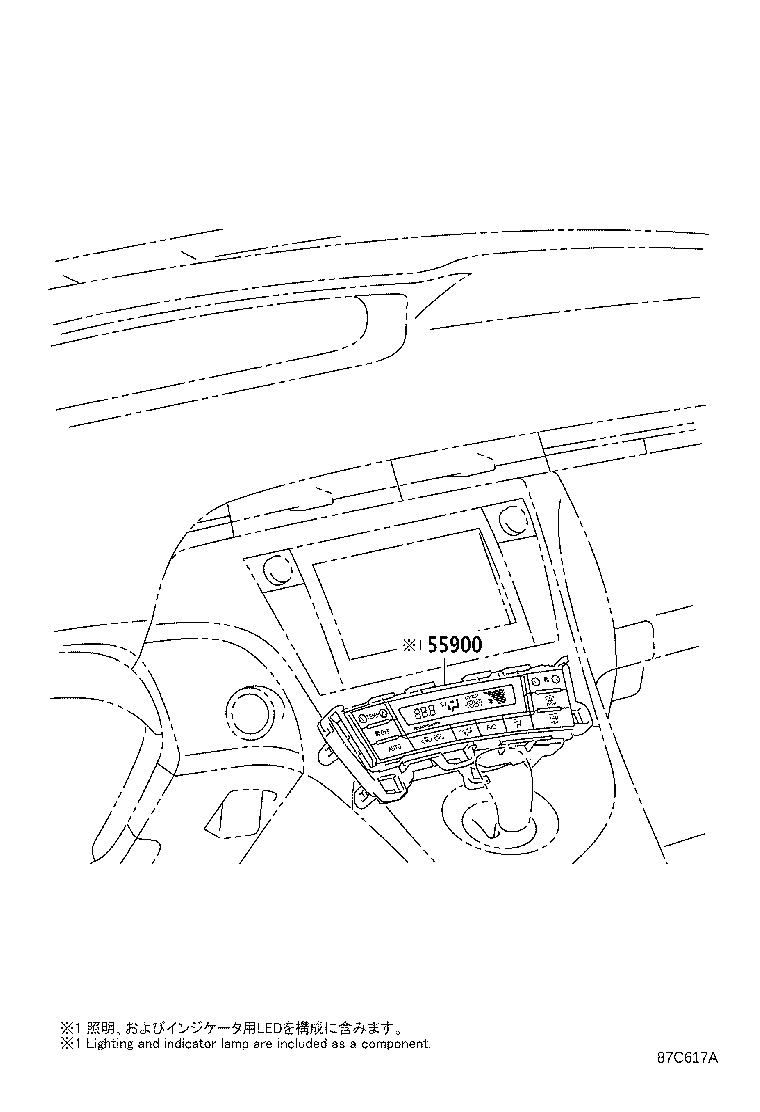

CONTROL PANEL

diagram 55900
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-47120

ZVW35

 1
55900-47071

ZVW35

 1

ILLUST NO. 3 OF 3(1201- )

Click highlighted areas on diagram

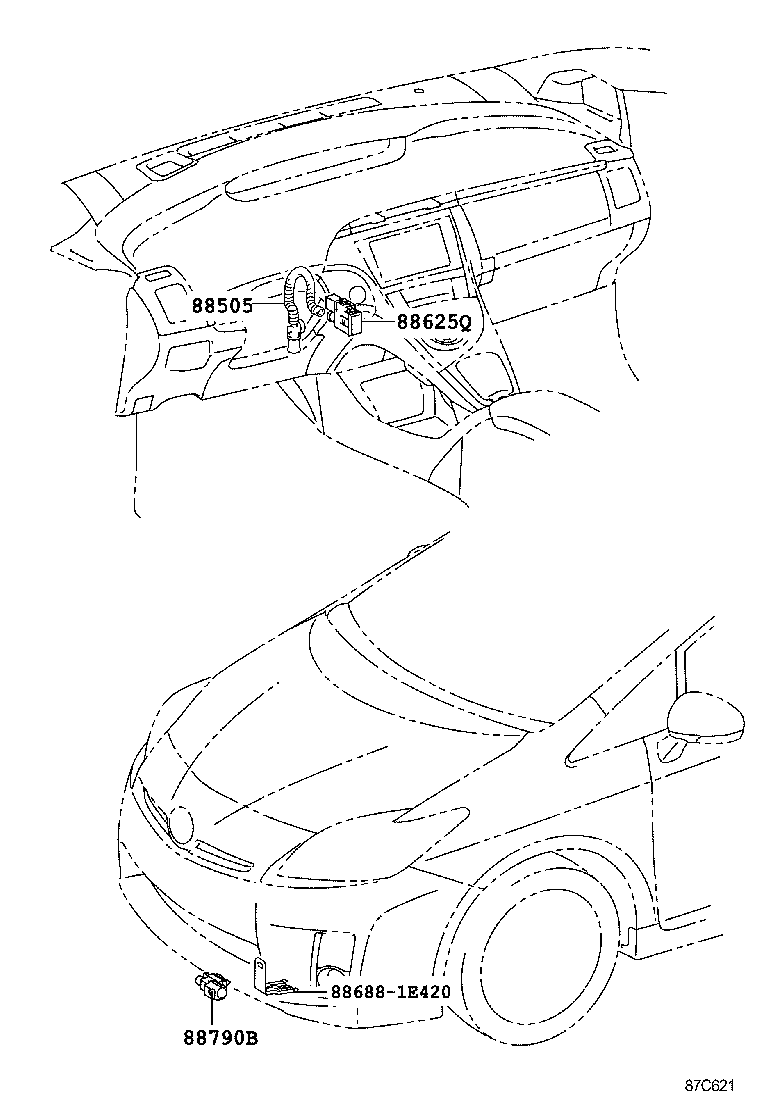

SENSOR

diagram 88505 88625Q 886881E420 88790B
Part # Description Qty Price
88505 - DUCT SUB-ASSY,AIR CONDITIONER
88505-47020

ZVW35

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZVW35

 1
88790B - THERMISTOR ASSY
88790-22131

ZVW35

 1
Common parts
88688-1E420

ILLUST NO. 2 OF 3(1201- )

Click highlighted areas on diagram

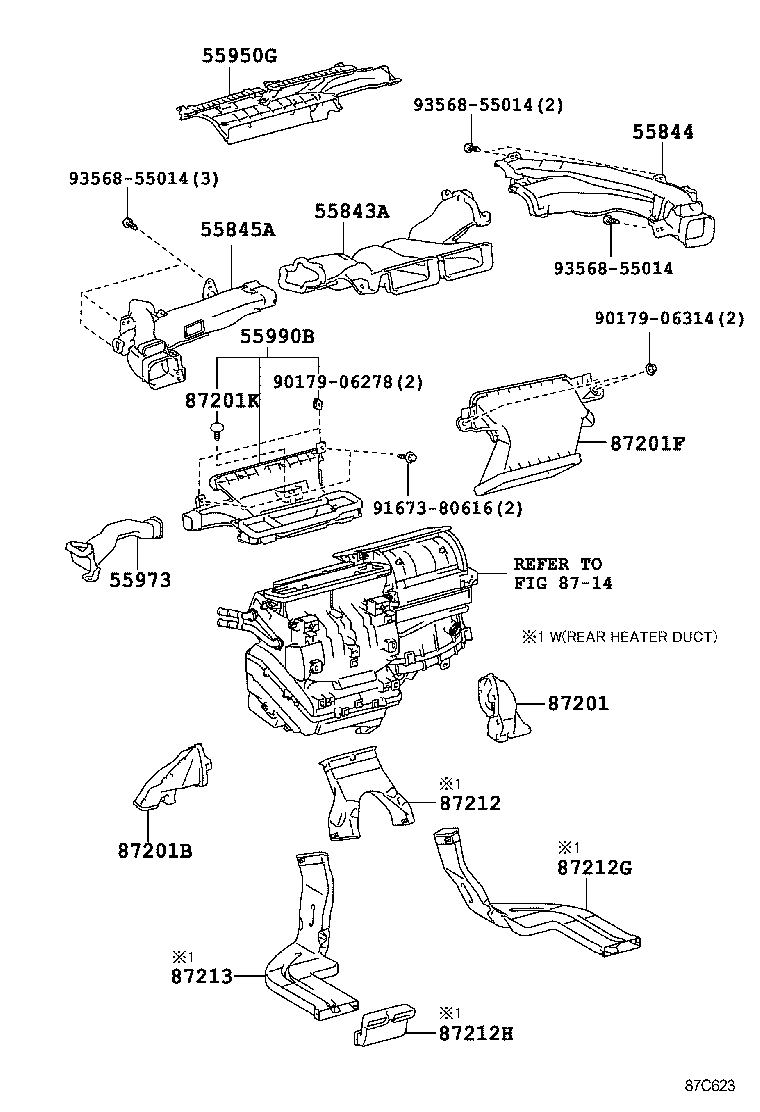

AIR DUCT

diagram 55843A 55844 55845A 55950G 55973 55990B 8714 87201 87201B 87201F 87201K 87212 87212G 87212H 87213 9017906278 9017906314 9167380616 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-47060

ZVW35

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-47060

ZVW35

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-47040

ZVW35

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-47041

ZVW35

 1
55950-47040

ZVW35

 1
55973 - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-47020

ZVW35

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-47040

ZVW35

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-12350

ZVW35

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-12340

ZVW35

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87220-47020

ZVW35

 1
87201K - CLIP (FOR AIR DUCT)
90467-05161C0

ZVW35

BLACK

 1
87212 - DUCT, AIR, REAR NO.1
87215-12050

ZVW35..G,S

 1
87212G - DUCT, AIR, REAR NO.3
87212-12130

ZVW35..G,S

 1
87212H - DUCT, AIR, REAR NO.4
87276-47010

ZVW35..G,S

 1
87213 - DUCT, AIR, REAR NO.2
87213-12090

ZVW35..G,S

 1
Common parts
90179-06278
90179-06314
91673-80616
93568-55014
Linked diagrams
8714
