ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1201- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

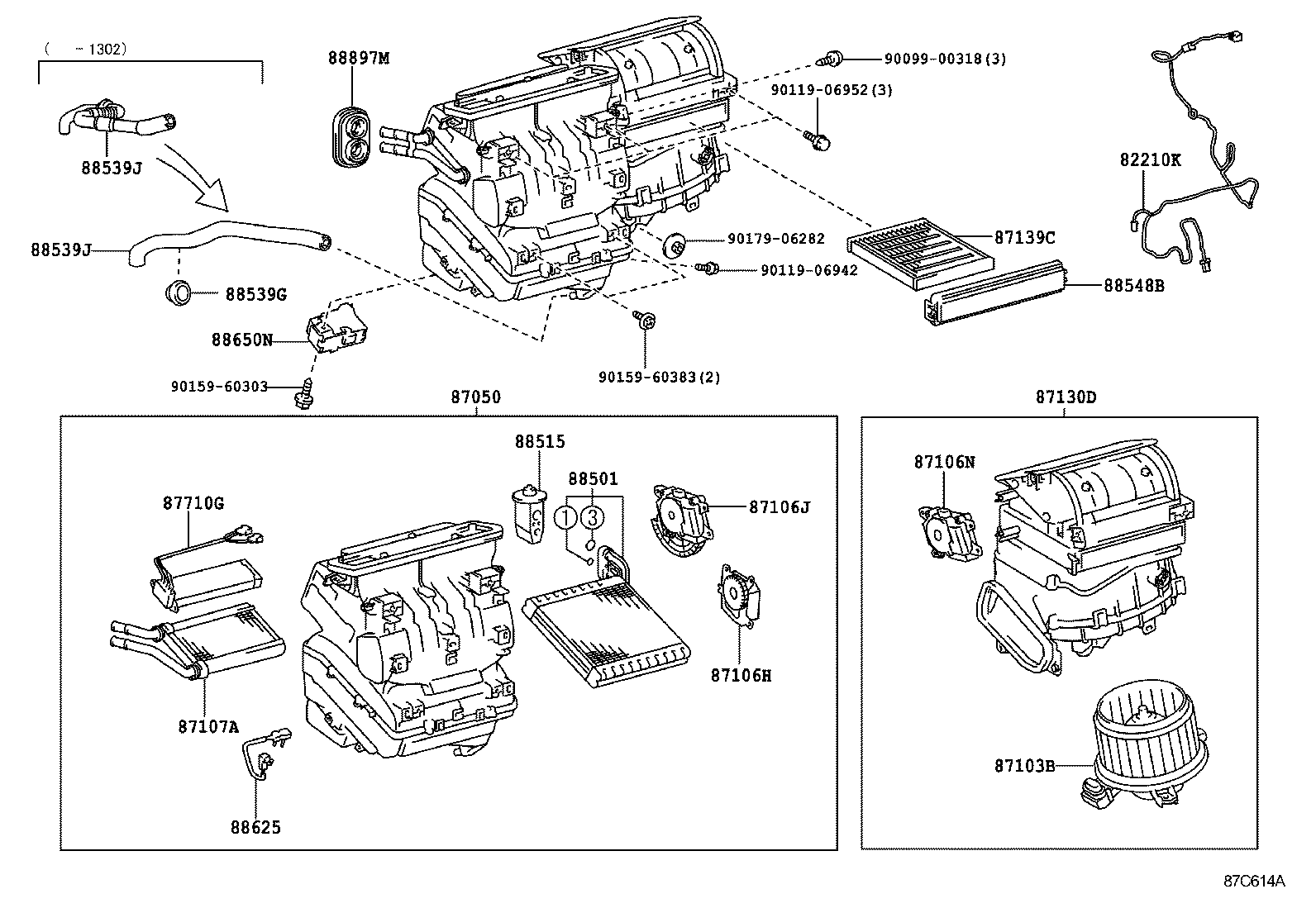

ILLUST NO. 1 OF 2(1201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12010 |
ZVW35 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-47150 |
ZVW35 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-47041 |
ZVW35 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-47170 |
ZVW35 |
1 | ||
| 87106-12170 |
ZVW35 |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-42100 |
ZVW35 |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-47130 |
ZVW35 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ZVW35 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47130 |
ZVW35 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
ZVW35 *DPF |
1 | ||
| 87139-30040 |
ZVW35 POLLEN FILTER |
1 | ||
| 87139-50060 |
ZVW35 DEODORANT FILTER |
1 | ||
| 87139-76010 |
ZVW35 POLLEN FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-12020 |
ZVW35 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-47051 |
ZVW35 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-47040 |
ZVW35 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26030 |
ZVW35 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12230 |
ZVW35 |
1 | ||
| 88539-12200 |
ZVW35 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12230 |
ZVW35 |
1 | ||
| 88539-12200 |
ZVW35 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ZVW35 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-71010 |
ZVW35 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-47400 |
ZVW35 |
1 | ||
| 88650-47232 |
ZVW35 |
1 | ||
| 88650-47480 |
ZVW35 |
1 | ||
| 88650-47231 |
ZVW35 |
1 | ||
| 88650-47230 |
ZVW35 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-42010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
