ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

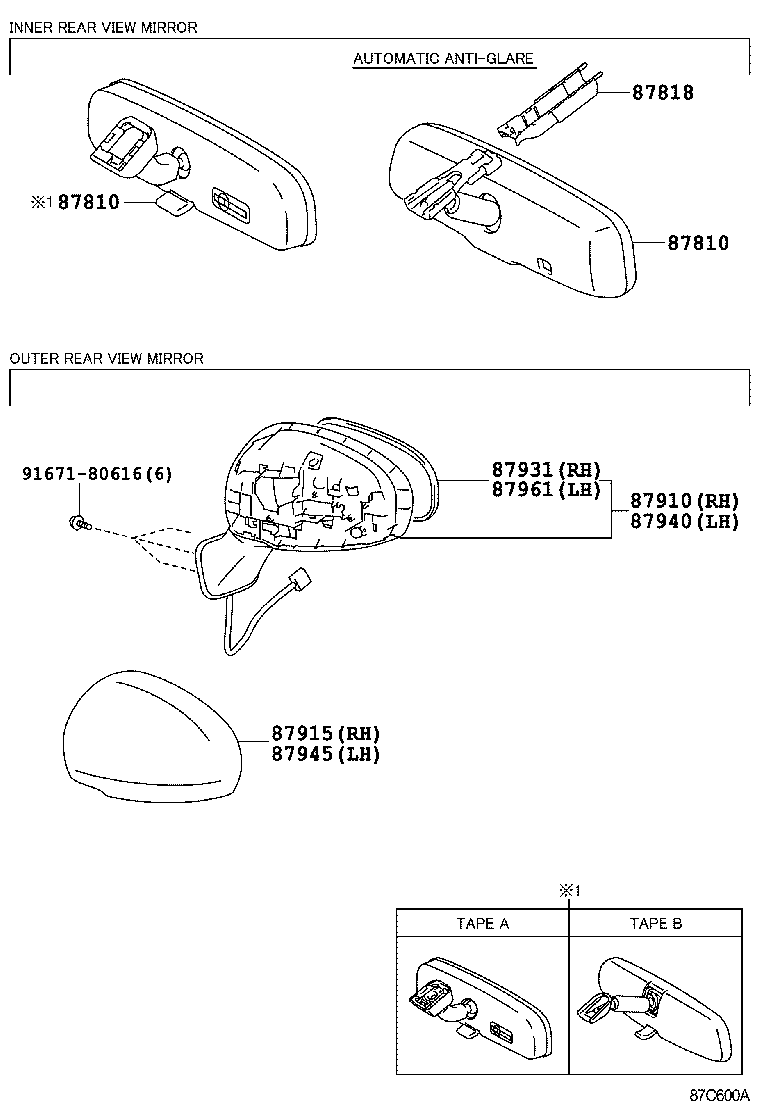

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ZVW35..L,S TYPE A |
1 | ||
| 87810-AA011 |
ZVW35..L,S TYPE B |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ZVW35..L,S TYPE A |
1 | ||
| 87810-AA011 |
ZVW35..L,S TYPE B |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-47180 |
ZVW35..G,S NO PAINT REQ. |
1 | ||
| 87910-47170 |
ZVW35..L NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-47020A0 |
ZVW35 WHITE PEARL CS.,070 |
1 | ||
| 87915-47020B0 |
ZVW35 SILVER ME.,1F7 |
1 | ||
| 87915-47020J1 |
ZVW35 ABYSS GRAY ME.,8V1 |
1 | ||
| 87915-47020J5 |
ZVW35 TRUE BLUE M.M.,8W1 |
1 | ||
| 87915-47020H1 |
ZVW35 FROSTY GREEN MC.,781 |
1 | ||
| 87915-47020A1 |
ZVW35 SUPER WHITE 2,040 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-47180 |
ZVW35..G,S |
1 | ||
| 87931-47170 |
ZVW35..L |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-47180 |
ZVW35..G,S NO PAINT REQ. |
1 | ||
| 87940-47170 |
ZVW35..L NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-47020A1 |
ZVW35 SUPER WHITE 2,040 |
1 | ||
| 87945-47020B0 |
ZVW35 SILVER ME.,1F7 |
1 | ||
| 87945-47020J5 |
ZVW35 TRUE BLUE M.M.,8W1 |
1 | ||
| 87945-47020J1 |
ZVW35 ABYSS GRAY ME.,8V1 |
1 | ||
| 87945-47020H1 |
ZVW35 FROSTY GREEN MC.,781 |
1 | ||
| 87945-47020A0 |
ZVW35 WHITE PEARL CS.,070 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-47170 |
ZVW35..L |
1 | ||
| 87961-47180 |
ZVW35..G,S |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
