ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )USA

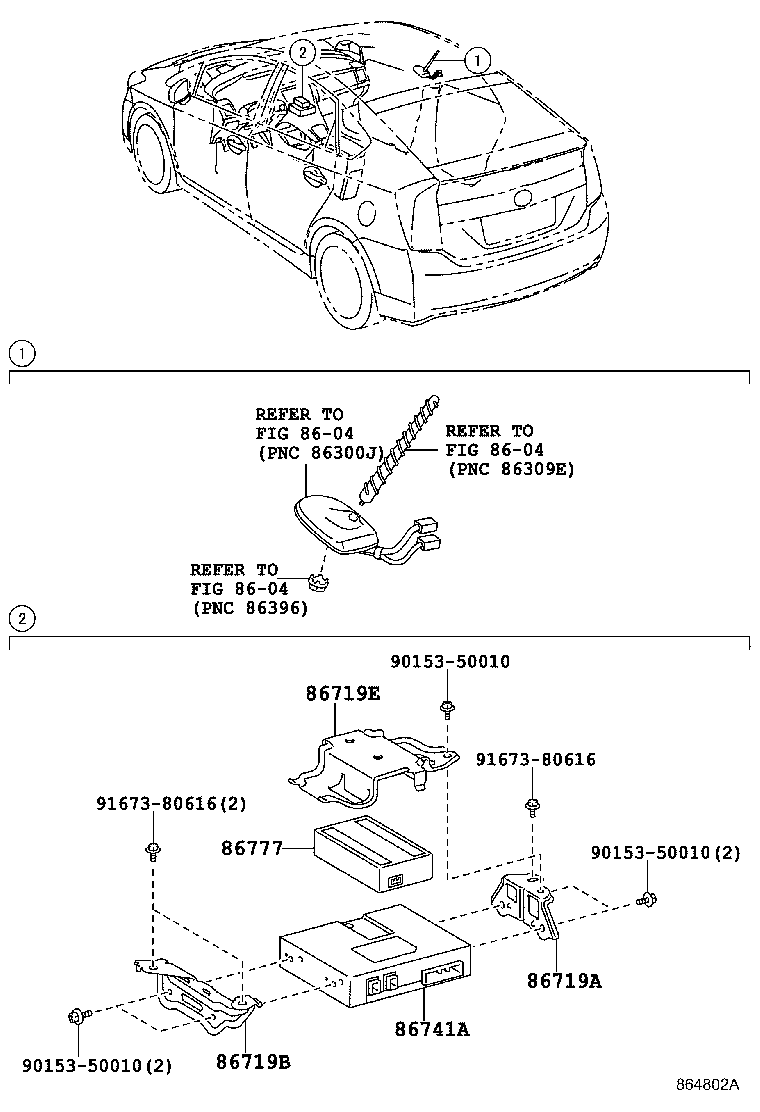

Click highlighted areas on diagram

diagram 8604 8604 8604 86719A 86719B 86719E 86741A 86777 9015350010 9015350010 9015350010 9167380616 9167380616
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-47080

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
86719B - BRACKET, TELEPHONE NO.2
86719-47090

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
86719E - BRACKET, MAYDAY
86719-47100

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
86741A - TRANSCEIVER, TELEMATICS
86741-47030

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
86777 - BATTERY, MAYDAY
86777-0W060

ZVW35..USA

MAYDAY SYSTEM-WITH

 1
86777-76020

ZVW35..USA

MAYDAY SYSTEM-WITH

 1
86777-76040

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
Common parts
90153-50010
91673-80616
Linked diagrams
8604
