ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

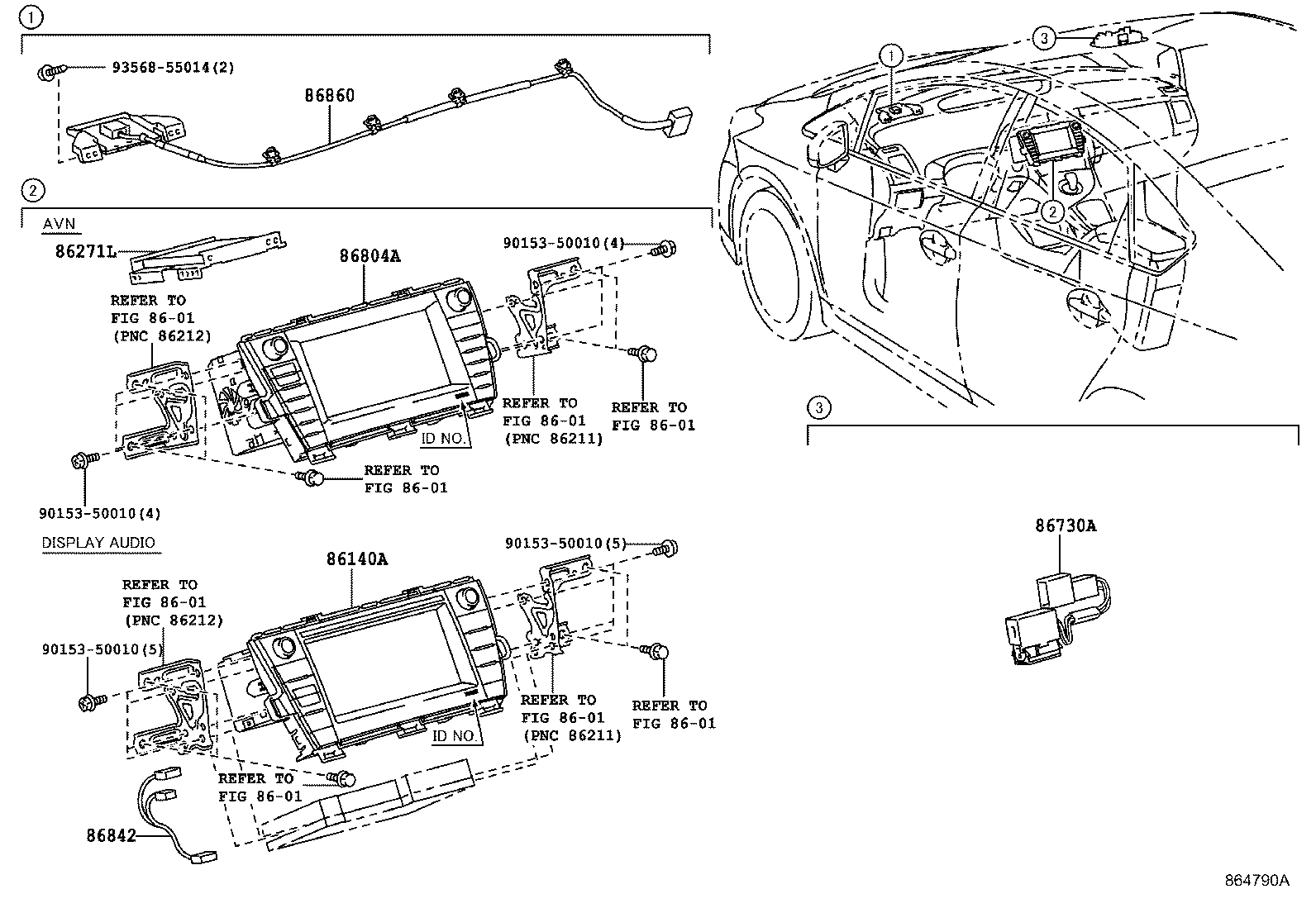

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 86140A 86271L 86730A 86804A 86842 86860 9015350010 9015350010 9015350010 9015350010 9356855014
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-47060

ZVW35..S..USA

PANASONIC,ID=57032,SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER

 1
86140-47050

ZVW35..L,S

PANASONIC,ID=57031

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-48040

ZVW35..(L,S)..USA

MAYDAY SYSTEM-WITH

 1
86730-20050

ZVW35

 1
86842 - WIRE, NAVIGATION, NO.1
86842-WY010

ZVW35..S..USA

HAWAII SPEC&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER

 1
86842-WY010

ZVW35..S..USA

PUERTO RICO & GUAM & SAIPAN SPEC&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER

 1
86842-WY010

ZVW35..S..USA

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-47070

ZVW35..S..USA

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER&MAYDAY SYSTEM-WITH

 1
86860-47070

ZVW35..S..USA

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER

 1
Common parts
90153-50010
93568-55014
Linked diagrams
8601
