ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

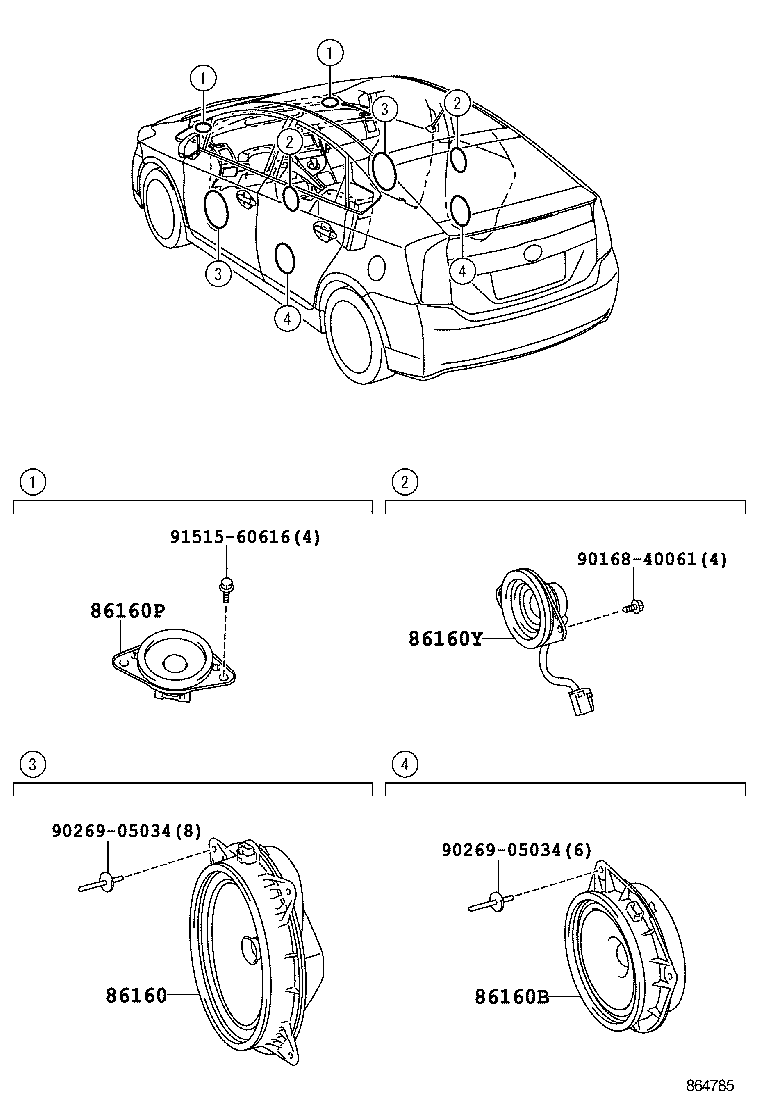

Click highlighted areas on diagram

diagram 86160 86160B 86160P 86160Y 9016840061 9026905034 9026905034 9151560616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-58240

ZVW35..L,S

 2
86160B - SPEAKER ASSY, REAR
86160-52330

ZVW35..L,S

PANASONIC

 2
86160-52300

ZVW35..L,S

FUJITSU TEN

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-47070

ZVW35..L,S

 2
Common parts
90168-40061
90269-05034
91515-60616
