ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

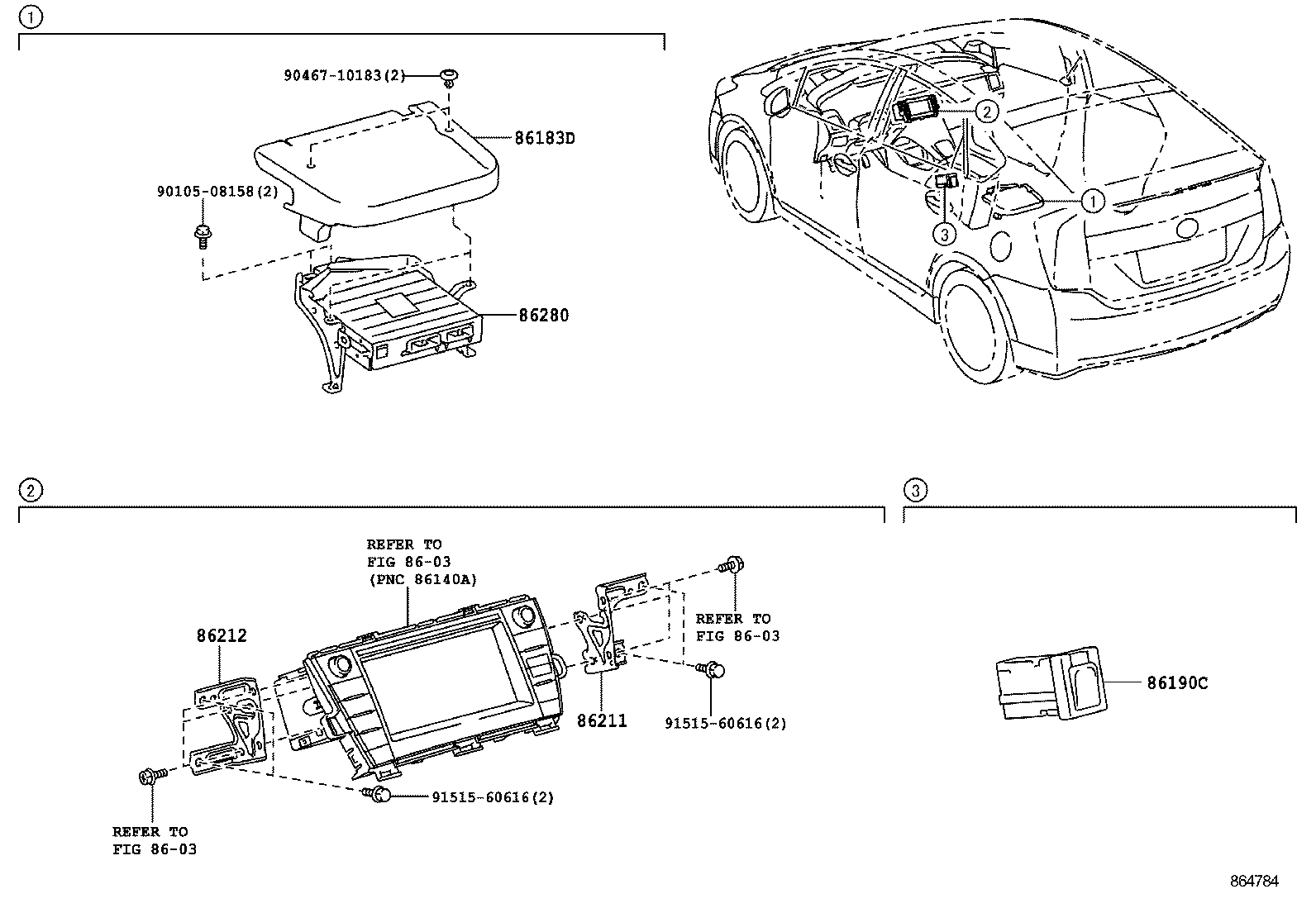

ILLUST NO. 1 OF 2(1201- )

Click highlighted areas on diagram

diagram 8603 8603 8603 86183D 86190C 86211 86212 86280 9010508158 9046710183 9151560616 9151560616
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-47020

ZVW35

 1
86211 - BRACKET, RADIO, NO.1
86211-47100

ZVW35

 1
86212 - BRACKET, RADIO, NO.2
86212-47100

ZVW35

 1
Common parts
90105-08158
90467-10183
91515-60616
Linked diagrams
8603

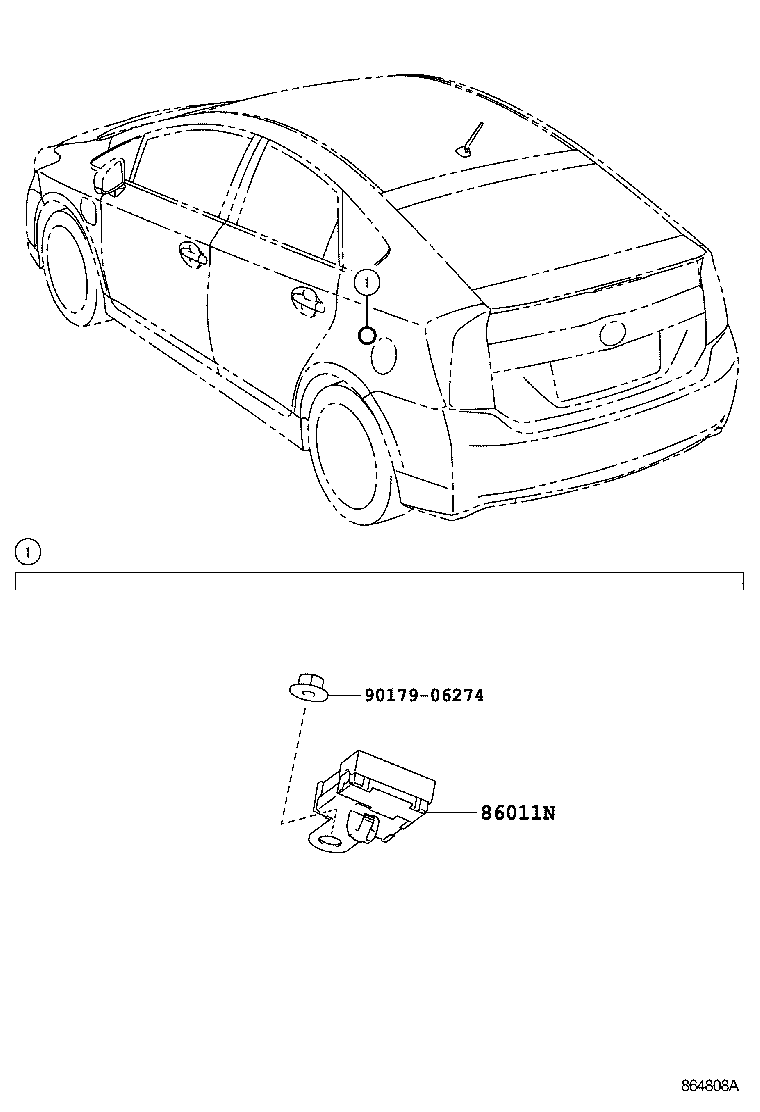

ILLUST NO. 2 OF 2(1201- )

Click highlighted areas on diagram

CONDENSER

diagram 86011N 9017906274
Part # Description Qty Price
86011N - FILTER, NOISE
90980-04189

ZVW35

 1
Common parts
90179-06274
