ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

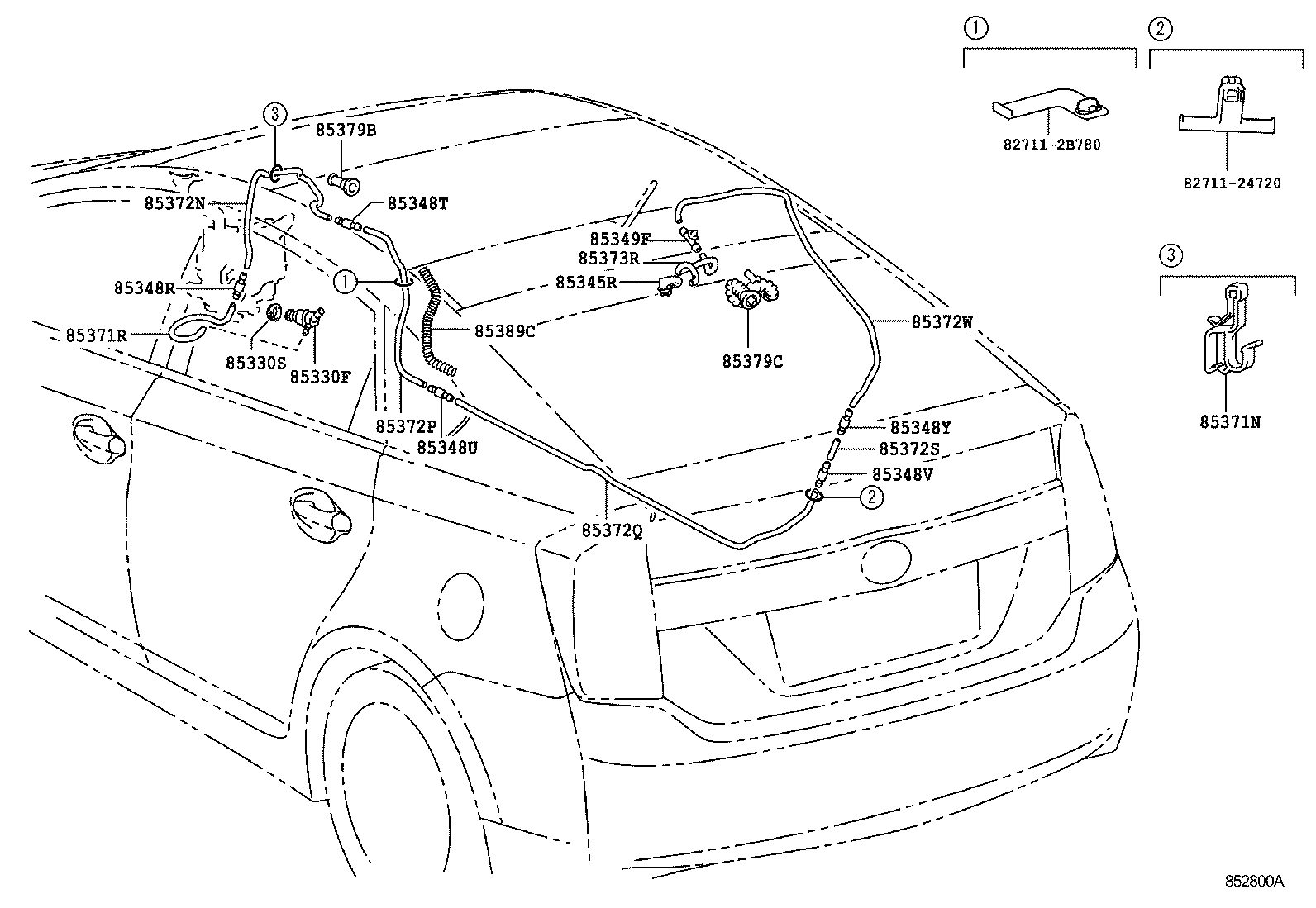

Click highlighted areas on diagram

diagram 8271124720 827112B780 85330F 85330S 85345R 85348R 85348T 85348U 85348V 85348Y 85349F 85371N 85371R 85372N 85372P 85372Q 85372S 85372W 85373R 85379B 85379C 85389C
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

ZVW35..L

 1
85330-60180

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85330-60180

ZVW35..G,S

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85336-60300

ZVW35..L

 1
85336-60300

ZVW35..G,S

 1
85345R - NOZZLE, REAR WASHER
85391-47020

ZVW35..L

 1
85391-47020

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85391-47020

ZVW35..G,S

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZVW35..L

 1
85349-89122

ZVW35..G,S

 1
85349-89122

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ZVW35..L

 1
85349-89122

ZVW35..G,S

 1
85349-89122

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ZVW35..L

 1
85349-89122

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85349-89122

ZVW35..G,S

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85349-89122

ZVW35..G,S

 1
85349-89122

ZVW35..L

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ZVW35..L

 1
85349-89122

ZVW35..G,S

 1
85349-89122

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-20800

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85375-20800

ZVW35..G,S

 1
85375-20800

ZVW35..L

 1
85371N - CLAMP, REAR WASHER HOSE
53614-47030

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
53614-47030

ZVW35..L

 1
53614-47030

ZVW35..G,S

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-62092

ZVW35..L

L=400,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
90099-62092

ZVW35..G,S

L=400

 1
90099-62092

ZVW35..L

L=400

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62054

ZVW35..G,S

L=716

 1
90099-62054

ZVW35..L

L=716,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
90099-62054

ZVW35..L

L=716

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ZVW35..L

*H,L=850

 1
90446-07001

ZVW35..L

*H,L=850,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
90446-07001

ZVW35..G,S

*H,L=850

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33589

ZVW35..L

*H,L=2100

 1
90099-33589

ZVW35..G,S

*H,L=2100

 1
90099-33589

ZVW35..L

*H,L=2100,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-62053

ZVW35..L

L=40,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
90099-62053

ZVW35..L

L=40

 1
90099-62053

ZVW35..G,S

L=40

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90446-07001

ZVW35..L

*H,L=1220

 1
90446-07001

ZVW35..L

*H,L=1220,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
90446-07001

ZVW35..G,S

*H,L=1220

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZVW35..G,S

*H,L=320

 1
90099-33080

ZVW35..L

*H,L=320,REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
90099-33080

ZVW35..L

*H,L=320

 1
85379B - GROMMET, WASHER, A
85379-12850

ZVW35..G,S

 1
85379-12850

ZVW35..L

 1
85379-12850

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85373-47040

ZVW35..L

 1
85373-47040

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85373-47040

ZVW35..G,S

 1
85389C - PROTECTOR, WASHER
85389-0C070

ZVW35..L

REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)

 1
85389-0C070

ZVW35..G,S

 1
85389-0C070

ZVW35..L

 1
Common parts
82711-24720
82711-2B780
