ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

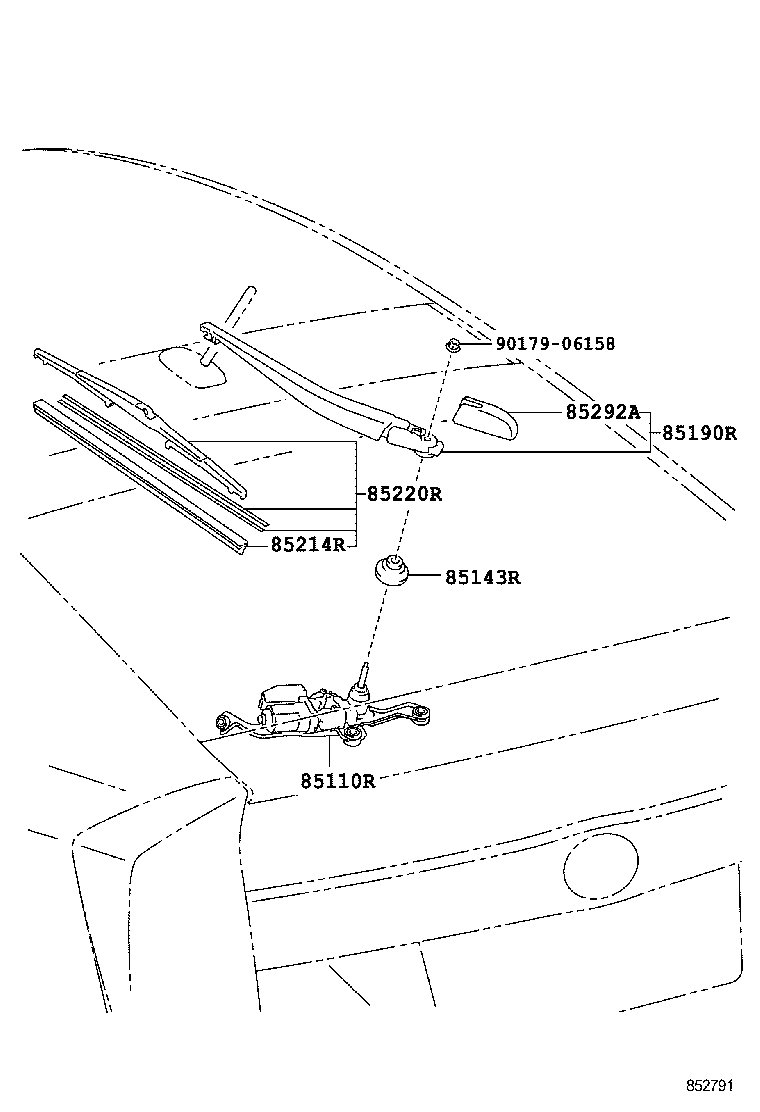

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-47021 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 85130-47021 |
ZVW35..G,S |
1 | ||
| 85130-47021 |
ZVW35..L |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-72010 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 85143-72010 |
ZVW35..G,S |
1 | ||
| 85143-72010 |
ZVW35..L |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-47030 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 85241-47030 |
ZVW35..L |
1 | ||
| 85241-47030 |
ZVW35..G,S |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-10100 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 85214-10100 |
ZVW35..G,S |
1 | ||
| 85214-10100 |
ZVW35..L |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-47030 |
ZVW35..G,S |
1 | ||
| 85242-47030 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 85242-47030 |
ZVW35..L |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-47010 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 85292-47010 |
ZVW35..L |
1 | ||
| 85292-47010 |
ZVW35..G,S |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
