ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )

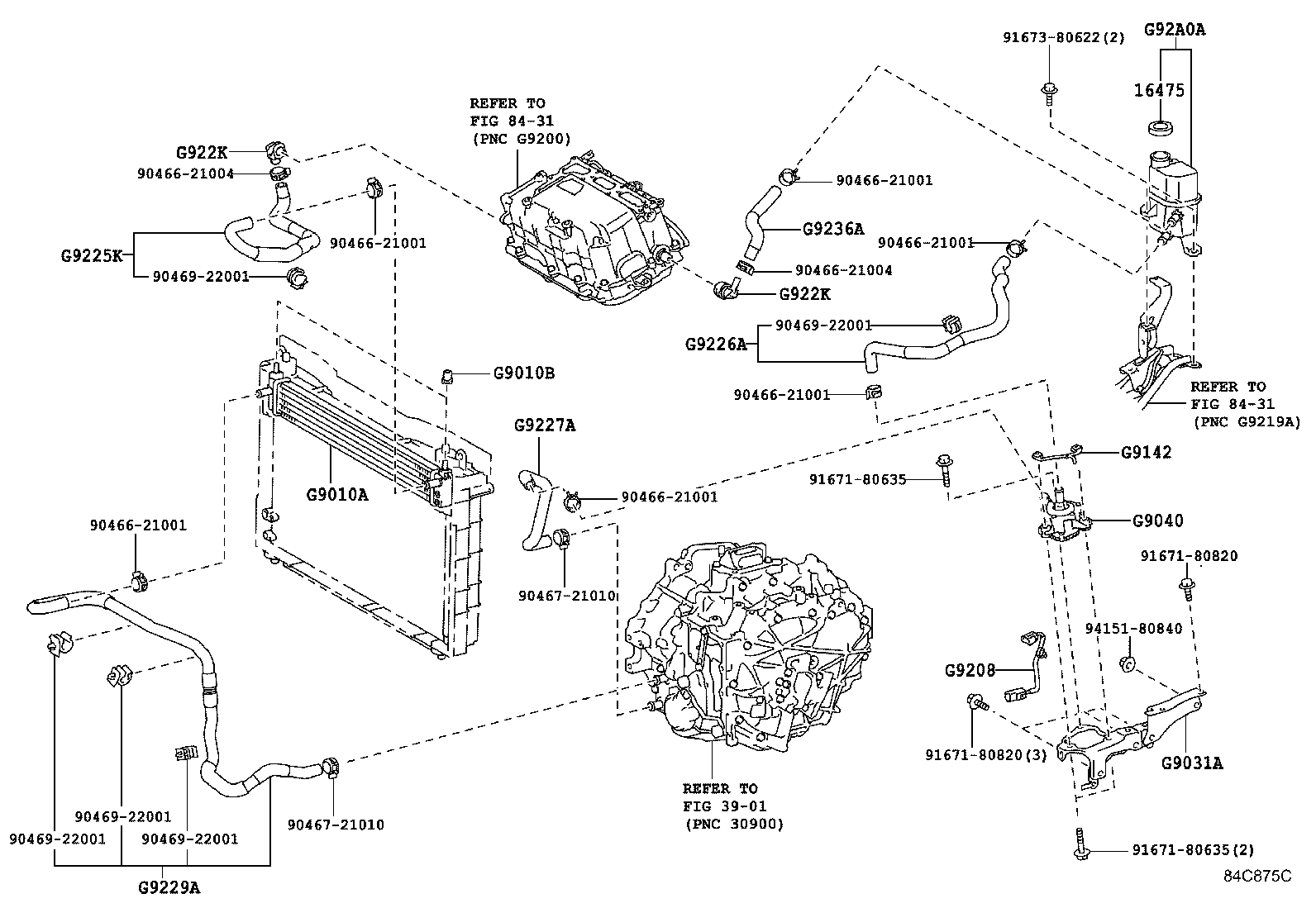

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16475 - CAP, RESERVE TANK | ||||
| 16475-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 16475-37011 |
2ZRFXE..ZVW35 |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-47040 |
ZVW35 |
1 | ||
| G9010B - CUSHION, INVERTER RADIATOR | ||||
| 16716-37010 |
ZVW35 |
2 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9031-47010 |
ZVW35 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-52010 |
ZVW35 |
1 | ||
| G9142 - BRACKET, HYBRID WATER PUMP, NO.2 | ||||
| G9142-47010 |
ZVW35 |
1 | ||
| G9208 - WIRE SUB-ASSY, INVERTER | ||||
| G9208-47080 |
ZVW35 |
1 | ||
| G9225K - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-47021 |
ZVW35 |
1 | ||
| G9226A - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-47020 |
ZVW35 |
1 | ||
| G9227A - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-47020 |
ZVW35 |
1 | ||
| G9229A - HOSE, INVERTER COOLING, NO.5 | ||||
| G9229-47020 |
ZVW35 |
1 | ||
| G922K - CONNECTOR, HYBRID WATER HOSE | ||||
| G922K-47011 |
ZVW35 |
2 | ||
| G922K - CONNECTOR, HYBRID WATER HOSE | ||||
| G922K-47011 |
ZVW35 |
2 | ||
| G9236A - HOSE, INVERTER COOLING, NO.6 | ||||
| G9236-47031 |
ZVW35 |
1 | ||
| G92A0A - TANK ASSY, INVERTER RESERVE | ||||
| G92A0-47011 |
ZVW35 |
1 | ||
| G92A0-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90466-21001 | ||||
| 90466-21004 | ||||
| 90467-21010 | ||||
| 90469-22001 | ||||
| 91671-80635 | ||||
| 91671-80820 | ||||
| 91673-80622 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8431 | ||||
