Toyota Prius(plug-in hbd) ZVW35 HV INVERTER

ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015

Engine 2ZRFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

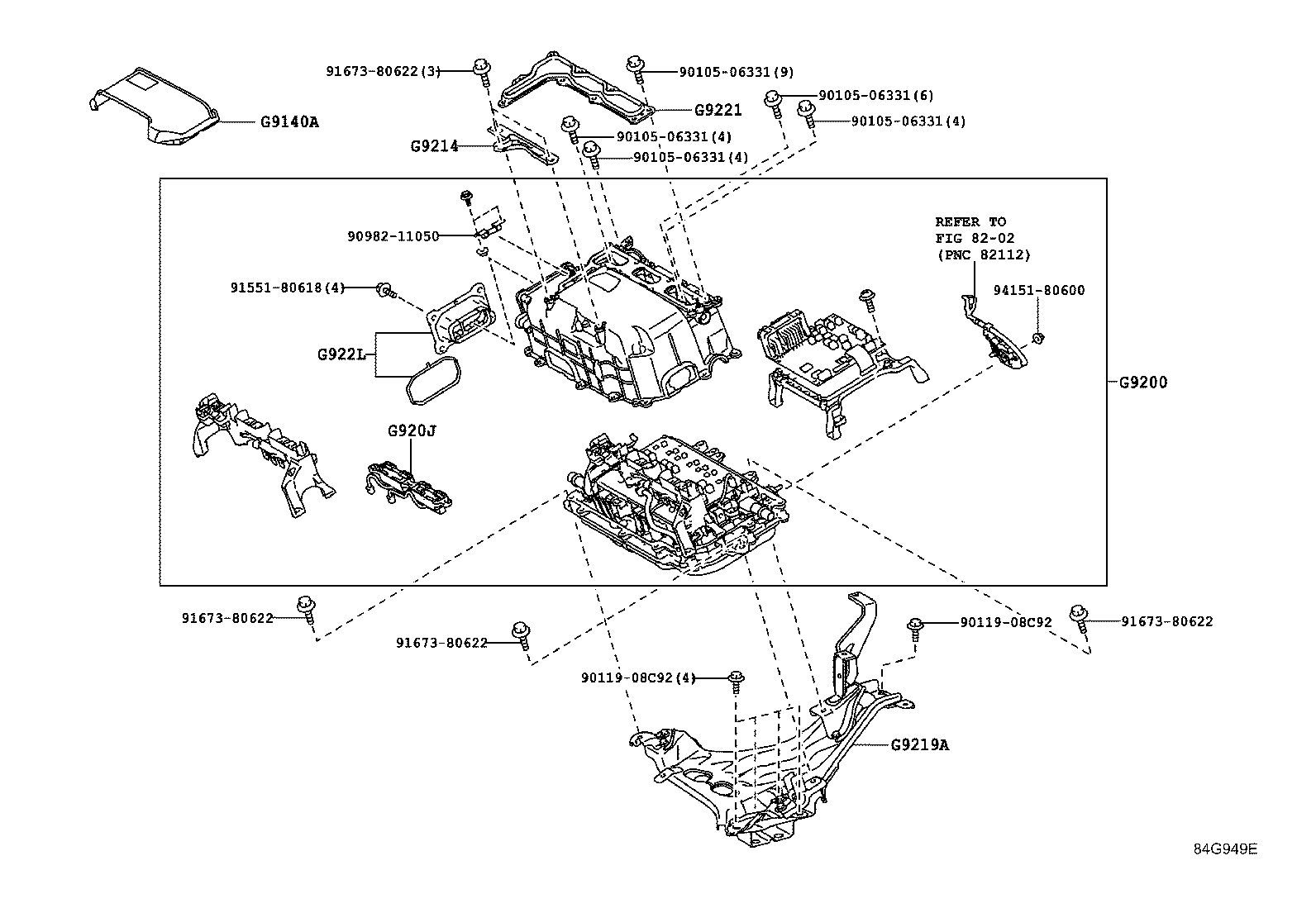

INVERTER ASSY

Part #	Description	Period	Qty
G9140A - COVER ASSY, INVERTER, LH
G9140-47010	ZVW35	10/2012 - 06/2015	1
G9200 - INVERTER ASSY, W/CONVERTER
G9200-49046	ZVW35	10/2013 - 06/2015	1
G9200-49045	ZVW35	01/2012 - 10/2013	1
G920J - SENSOR SUB-ASSY, INVERTER CURRENT
G920J-52010	ZVW35	01/2012 - 06/2015	1
G9214 - BRACKET, INVERTER, NO.1
G9214-47060	ZVW35	09/2013 - 06/2015	1
G9214-47050	ZVW35	01/2012 - 08/2013	1
G9219A - BRACKET, INVERTER TRAY
G9110-47011	ZVW35	01/2012 - 09/2013	1
G9110-47030	ZVW35	10/2013 - 06/2015	1
G9221 - COVER, INVERTER
G9022-47041	ZVW35	01/2012 - 06/2015	1
G922L - COVER, INVERTER SIGNAL CONNECTOR
G922L-47010	ZVW35	01/2012 - 06/2015	1
Common parts
90105-06331
90119-08C92
90982-11050
91551-80618
91673-80622
94151-80600
Linked diagrams
8202

Click highlighted areas on diagram

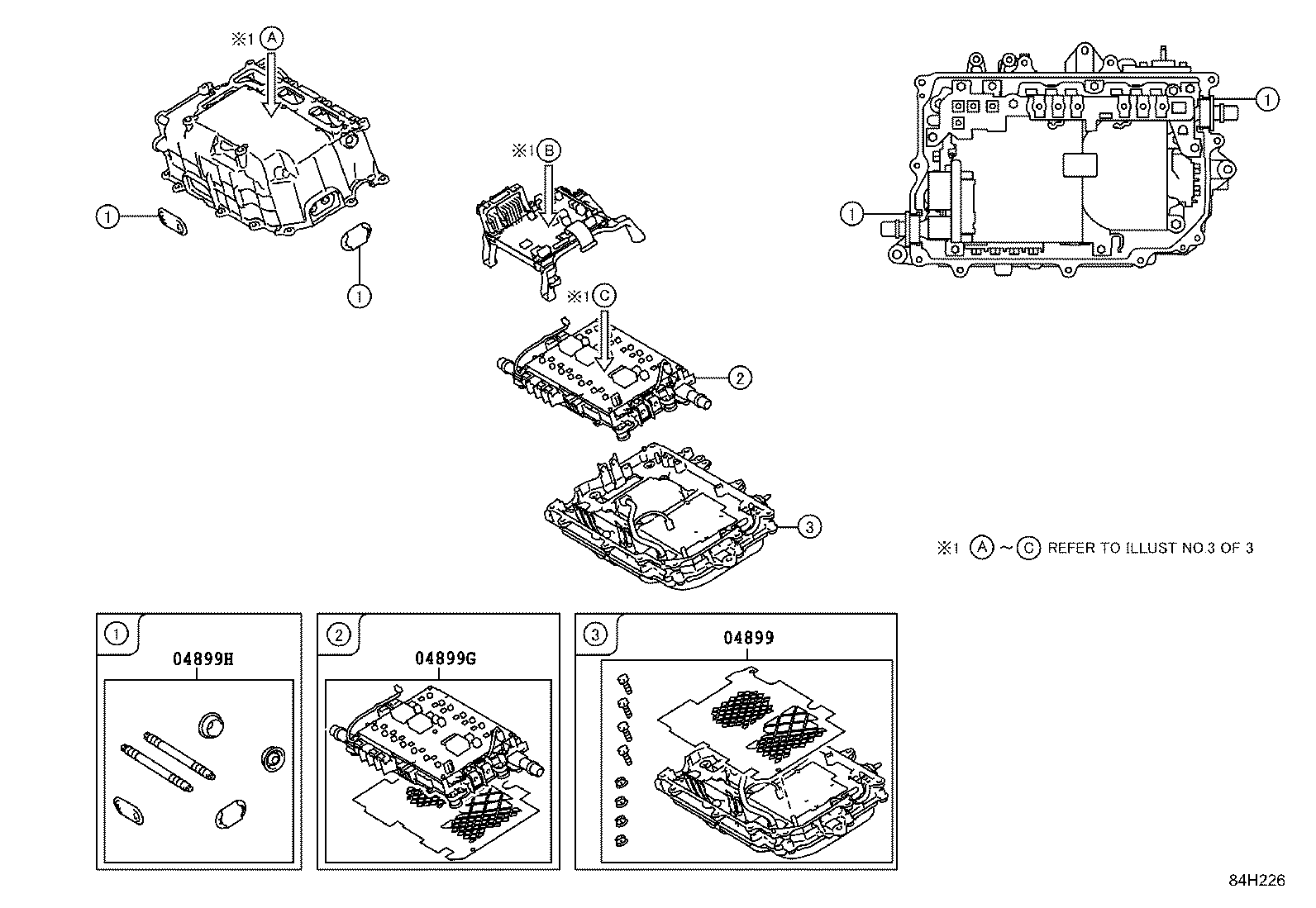

KIT PARTS

Part #	Description	Period	Qty
04899 - CONVERTER KIT, HV
04899-47090	ZVW35	01/2012 - 06/2015	1
04899G - TRANSISTOR KIT, POWER MODULE INTELLIGENT
04899-47070	ZVW35	01/2012 - 06/2015	1
04899H - PLUG KIT, INVERTER DRAIN
04899-47060	ZVW35	01/2012 - 06/2015	1
