ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

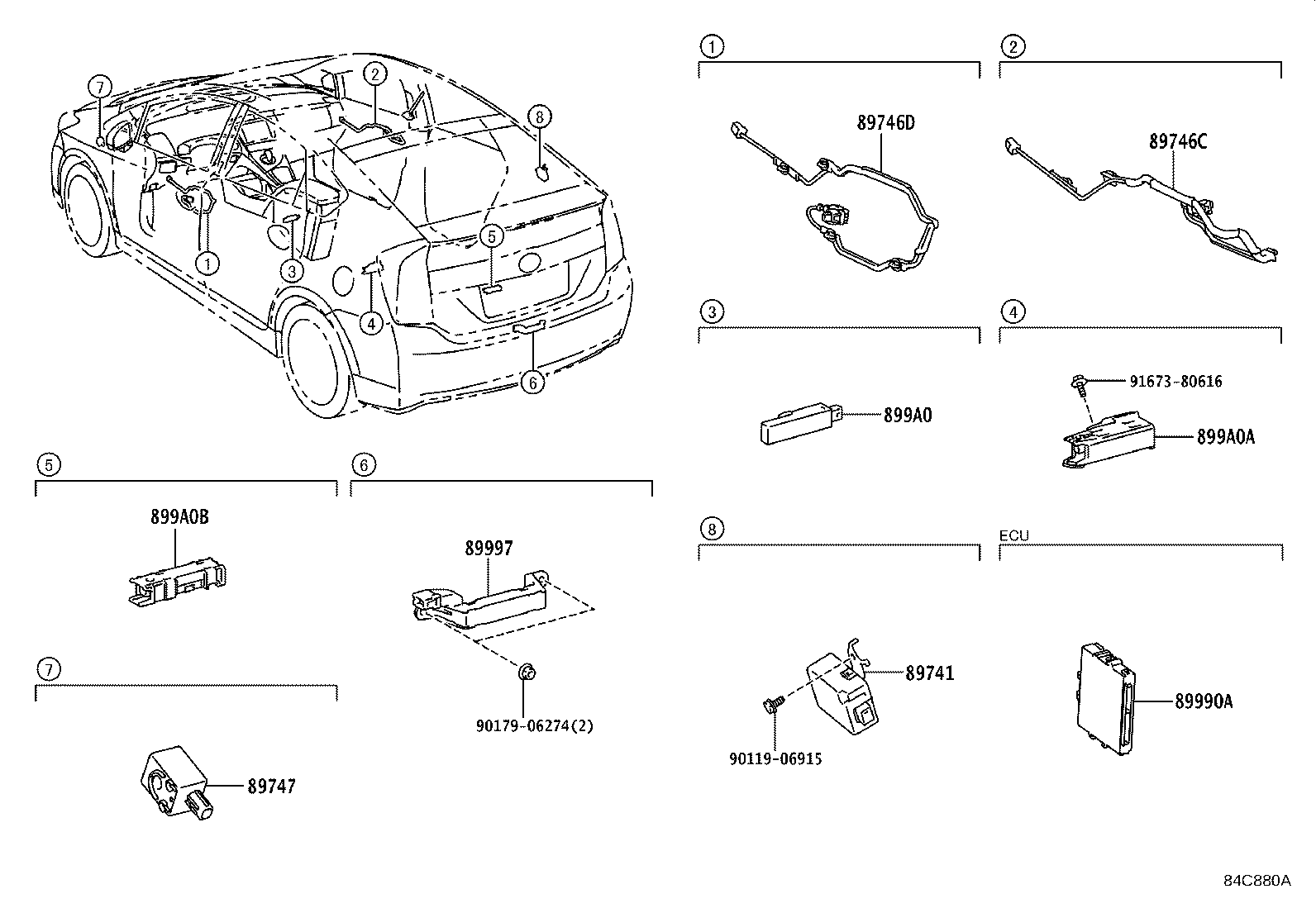

Click highlighted areas on diagram

diagram 89741 89746C 89746D 89747 89990A 89997 899A0 899A0A 899A0B 9011906915 9017906274 9167380616
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-47050

ZVW35

 1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-47040

ZVW35..S

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

 1
89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2
89746-47050

ZVW35..G,S

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

ZVW35

 1
89990A - COMPUTER ASSY, SMART KEY
89990-47160

ZVW35..S

 1
89990-47170

ZVW35..S

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

 1
89990-47171

ZVW35..S

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

 1
89990-47180

ZVW35..L

 1
89990-47161

ZVW35..S

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30070

ZVW35..S

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

ZVW35

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-47020

ZVW35

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-52070

ZVW35

 1
Common parts
90119-06915
90179-06274
91673-80616
