ZVW35L-BHXBBA (2012)

Toyota Prius(Plug-In Hbd)

Production Jan 2012 - Jun 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )

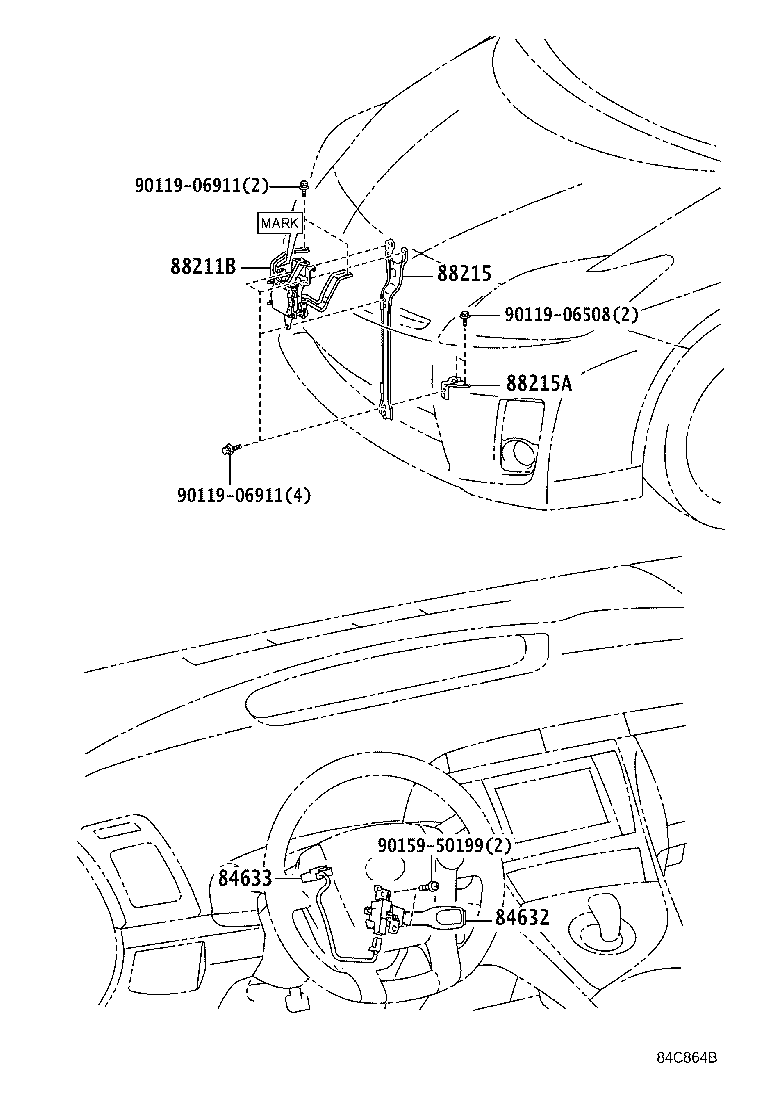

Click highlighted areas on diagram

diagram 84632 84633 88211B 88215 88215A 9011906508 9011906911 9011906911 9015950199
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

ZVW35..G,S

 1
84632-34011

ZVW35..L

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48020

ZVW35..L

CRUISE CONTROL-WITH(ELECTRIC TYPE)

 1
84633-48020

ZVW35..G,S

 1
Common parts
90119-06508
90119-06911
90159-50199
