ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
ILLUST NO. 1 OF 7(1201- )

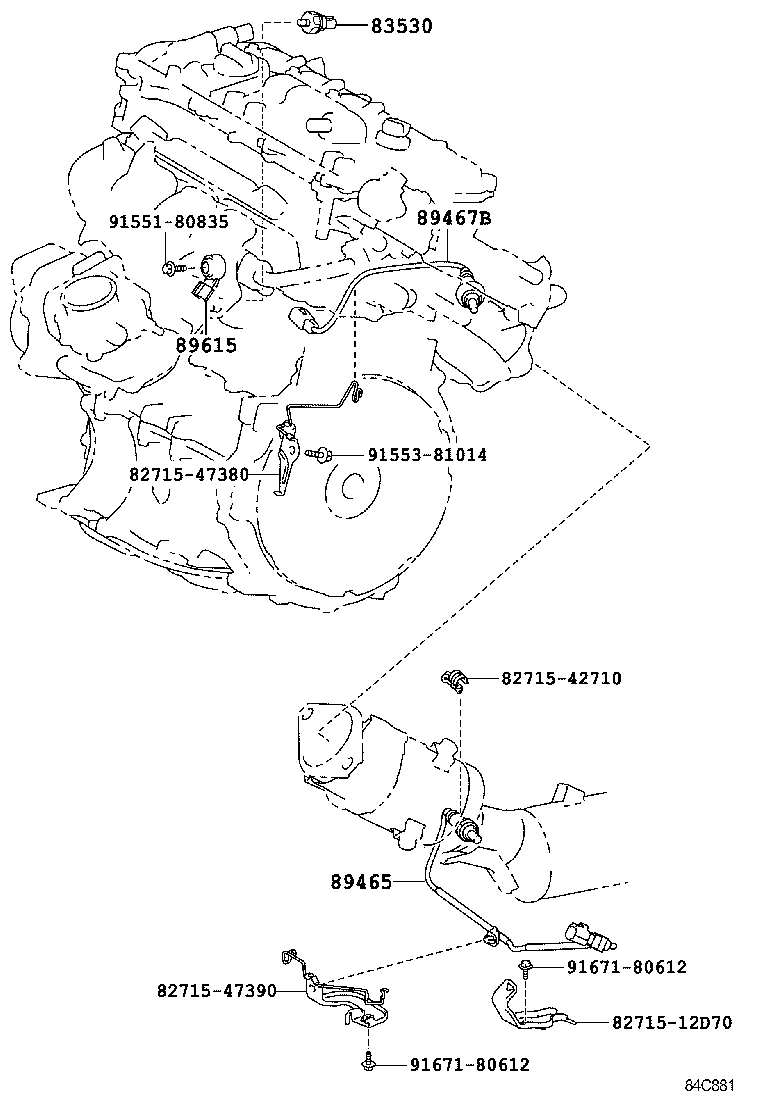

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12050 |
ZVW35 YAZAKI |
1 | ||
| 83530-60020 |
ZVW35 YAZAKI |
1 | ||
| 83530-28020 |
ZVW35 DENSO |
1 | ||
| 83530-60020 |
ZVW35 YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-76010 |
ZVW35 |
1 | ||
| 89465-47080 |
ZVW35 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZVW35 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82715-12D70 | ||||
| 82715-42710 | ||||
| 82715-47380 | ||||
| 82715-47390 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91671-80612 | ||||
ILLUST NO. 5 OF 7(1201- )

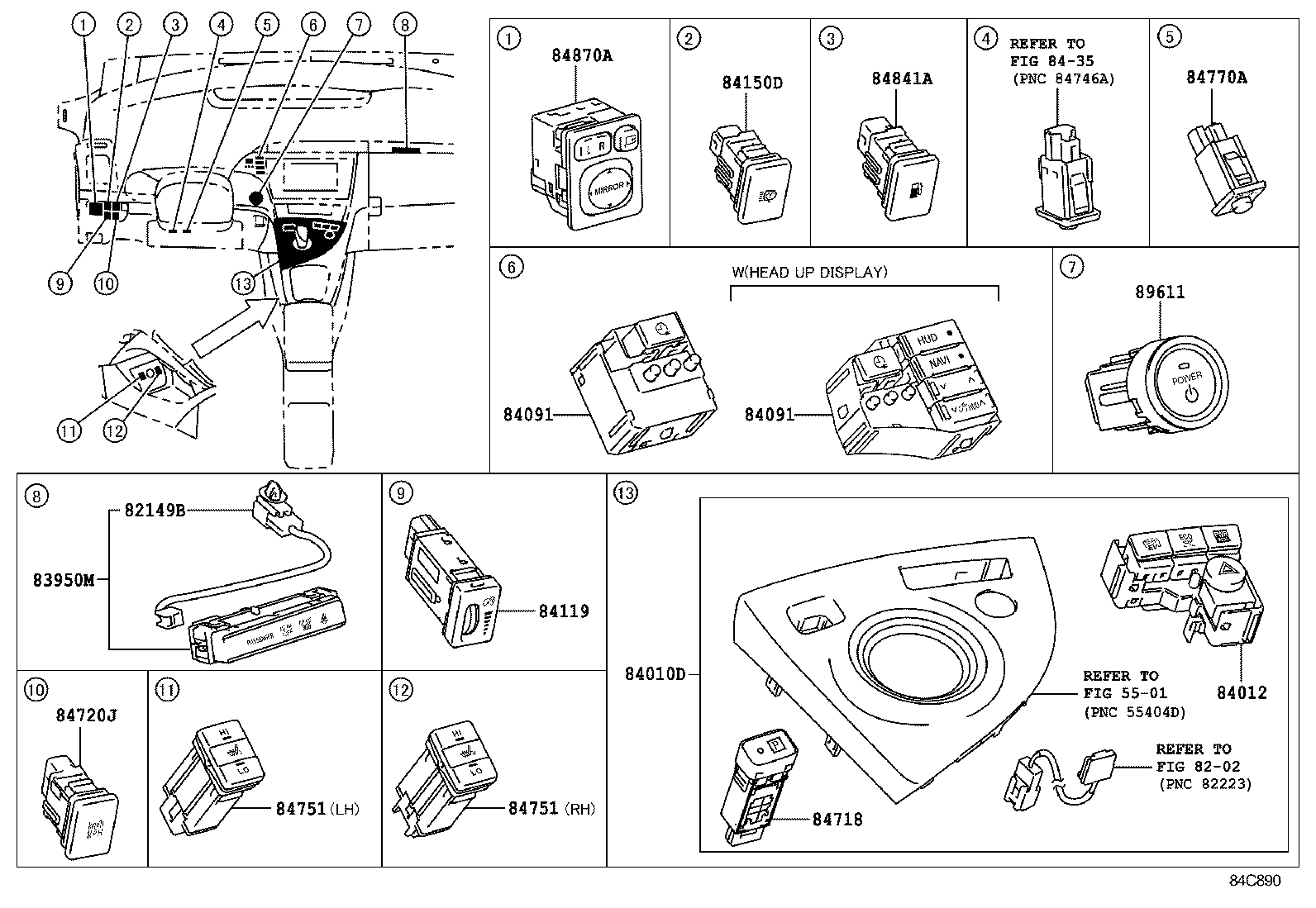

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82149B - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-47020 |
ZVW35 |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-47110 |
ZVW35 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-47110 |
ZVW35 |
1 | ||
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-47100 |
ZVW35 |
1 | ||
| 84012-47101 |
ZVW35 |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-47090 |
ZVW35..L,S |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-47090 |
ZVW35..L,S |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ZVW35 |
1 | ||
| 84119-42021 |
ZVW35 |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47060 |
ZVW35 |
1 | ||
| 84718-47061 |
ZVW35 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-47010 |
ZVW35 |
1 | ||
| 84721-47011 |
ZVW35 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-47051 |
ZVW35 LH |
1 | ||
| 84751-47041 |
ZVW35 RH |
1 | ||
| 84751-47050 |
ZVW35 LH |
1 | ||
| 84751-47042 |
ZVW35 RH |
1 | ||
| 84751-47052 |
ZVW35 LH |
1 | ||
| 84751-47040 |
ZVW35 RH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-47051 |
ZVW35 LH |
1 | ||
| 84751-47041 |
ZVW35 RH |
1 | ||
| 84751-47050 |
ZVW35 LH |
1 | ||
| 84751-47042 |
ZVW35 RH |
1 | ||
| 84751-47052 |
ZVW35 LH |
1 | ||
| 84751-47040 |
ZVW35 RH |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-76010 |
ZVW35 |
1 | ||
| 84841-76011 |
ZVW35 |
1 | ||
| 84841-76011 |
ZVW35 |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28030 |
ZVW35 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-75043 |
ZVW35 |
1 | ||
| 89611-75042 |
ZVW35 |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||
| 8435 | ||||
ILLUST NO. 2 OF 7(1201- )

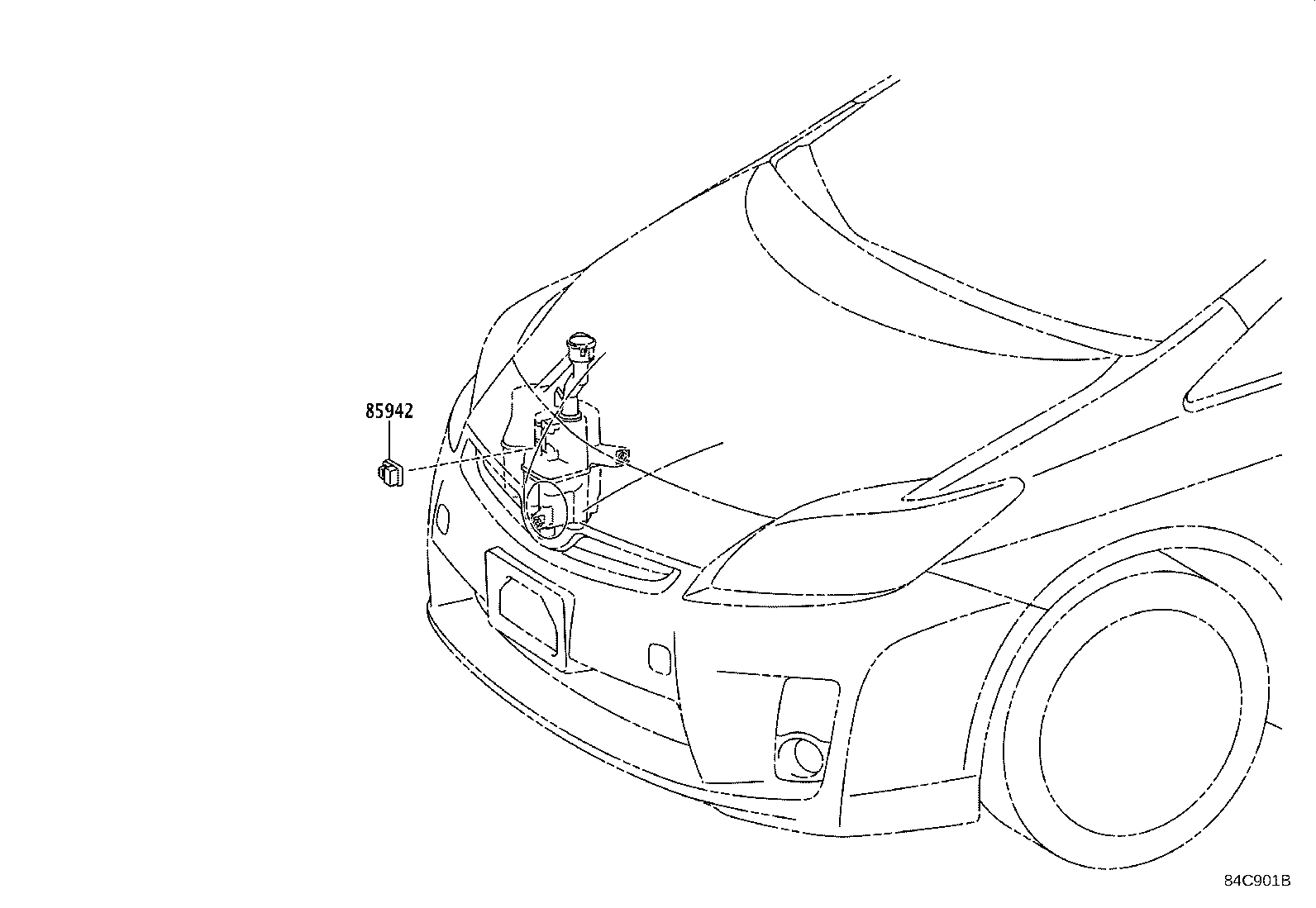

ENGINE ROOM 1/2
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 7(1201- )

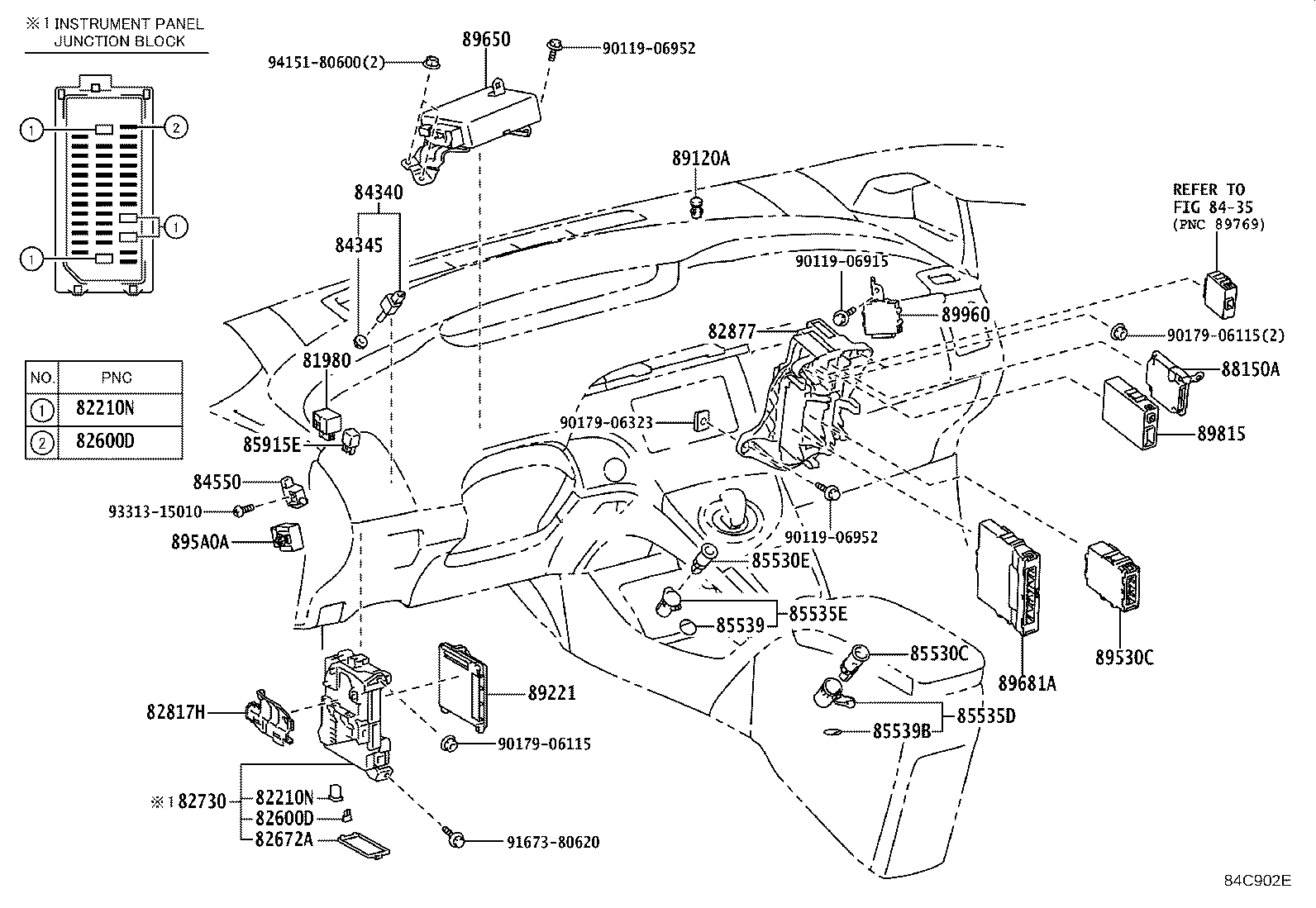

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ZVW35 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW35 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW35 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZVW35 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZVW35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZVW35 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ZVW35 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZVW35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW35 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZVW35 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZVW35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZVW35 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ZVW35 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZVW35 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW35 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-47130 |
ZVW35 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47510 |
ZVW35 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-47890 |
ZVW35 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47010 |
ZVW35 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-59645 |
ZVW35 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW35 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
ZVW35 |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-42010 |
ZVW35 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ZVW35 |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-60100C0 |
ZVW35 BLACK |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100C0 |
ZVW35 BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ZVW35 |
1 | ||
| 85539B - LABEL, POWER OUTLET NOTICE, CENTER | ||||
| 85539-60020 |
ZVW35 |
1 | ||
| 85915E - RELAY | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30010 |
ZVW35 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-4E080 |
ZVW35..(L,S)..USA HAWAII SPEC |
1 | ||
| 89220-4E050 |
ZVW35..(L,S)..USA PUERTO RICO & GUAM & SAIPAN SPEC |
1 | ||
| 89220-4E110 |
ZVW35..(L,S)..USA |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-76020 |
ZVW35 |
1 | ||
| 89535-76021 |
ZVW35 |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-20020 |
ZVW35 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47472 |
ZVW35 |
1 | ||
| 89650-47471 |
ZVW35 |
1 | ||
| 89650-47470 |
ZVW35 |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-47040 |
ZVW35 |
1 | ||
| 89681-47043 |
ZVW35 |
1 | ||
| 89681-47042 |
ZVW35 |
1 | ||
| 89681-47520 |
ZVW35 |
1 | ||
| 89681-47041 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| 90179-06115 | ||||
| 90179-06323 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8435 | ||||
ILLUST NO. 6 OF 7(1201- )

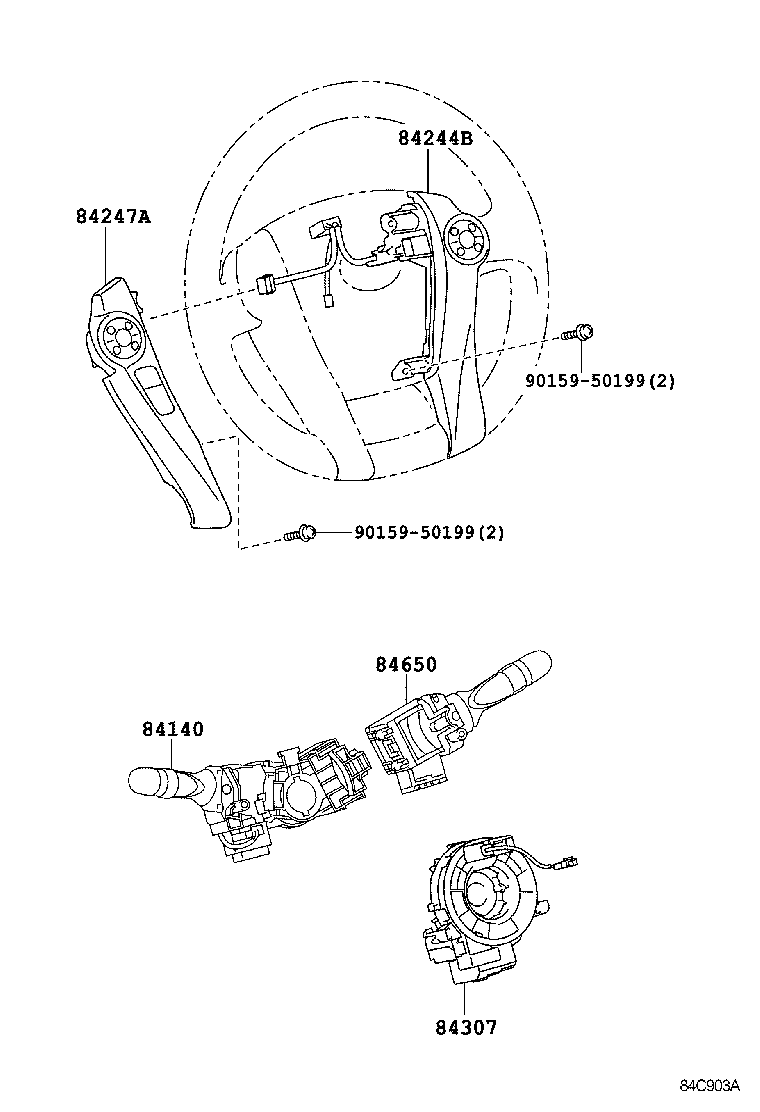

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47151 |
ZVW35..(L,S)..USA |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-47081B0 |
ZVW35..L ORNAMENT SILVER,TRIM1# |
1 | ||
| 84244-47100B0 |
ZVW35..G,S ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47101B0 |
ZVW35..G,S ORNAMENT SILVER,TRIM1#,6# |
1 | ||
| 84244-47080B0 |
ZVW35..L ORNAMENT SILVER,TRIM1# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-47070B0 |
ZVW35..L ORNAMENT SILVER,TRIM1# |
1 | ||
| 84247-47071B0 |
ZVW35..L ORNAMENT SILVER,TRIM1# |
1 | ||
| 84247-47090B0 |
ZVW35..S ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47091B0 |
ZVW35..S ORNAMENT SILVER,TRIM1#,6# |
1 | ||
| 84247-47081B0 |
ZVW35..S AUDIO-*DA SDARS *BT USB 6SPEAKER,ORNAMENT SILVER,TRIM1#,6# |
1 | ||
| 84247-47080B0 |
ZVW35..S AUDIO-*DA SDARS *BT USB 6SPEAKER,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-47020 |
ZVW35 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-76010 |
ZVW35..(G,S)..USA |
1 | ||
| 84652-12B30 |
ZVW35..L |
1 | ||
| 84652-76010 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 84652-76010 |
ZVW35..L |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 7 OF 7(1201- )

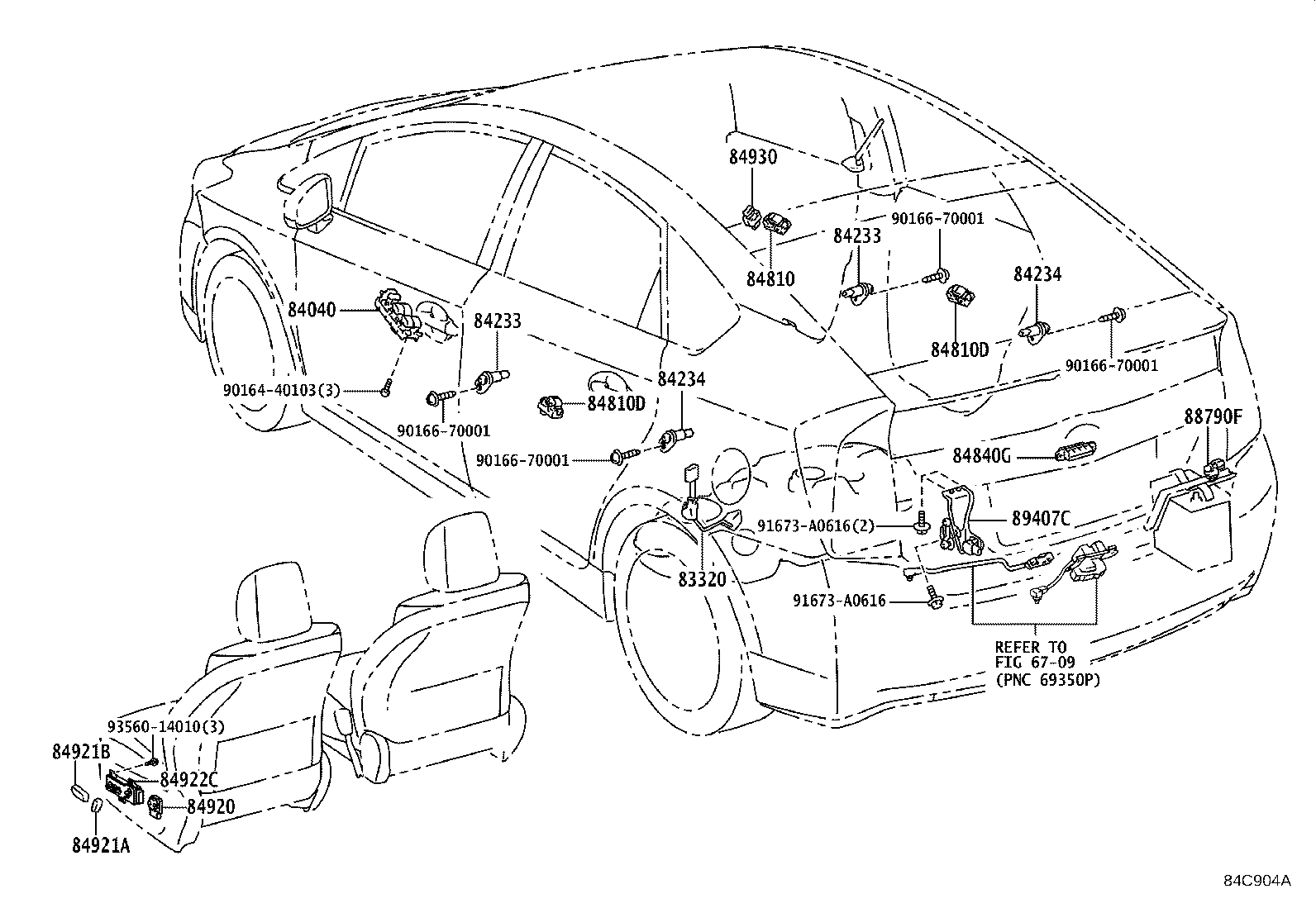

DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-47080 |
ZVW35 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
ZVW35 |
1 | ||
| 84040-60160 |
ZVW35 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW35 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ZVW35 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW35 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW35 |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ZVW35..L,S |
1 | ||
| 84840-28040 |
ZVW35..S SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
ZVW35 |
1 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-22131 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91673-A0616 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 6709 | ||||
ILLUST NO. 3 OF 7(1201- )

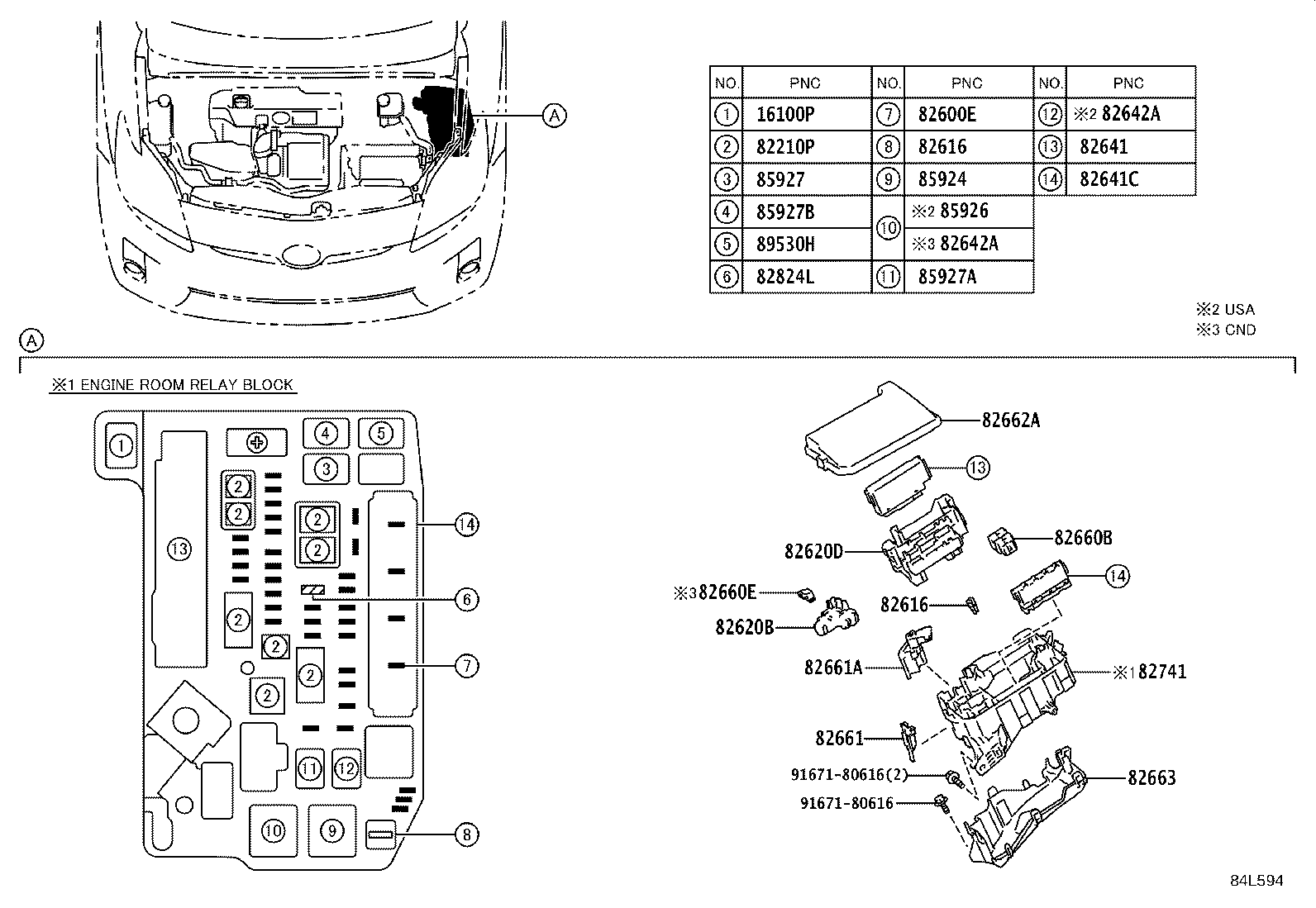

ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW35 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08304 |
ZVW35 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
ZVW35 40A-30A-30A,FEMALE |
1 | ||
| 90982-08297 |
ZVW35 125A,PINK |
1 | ||
| 90982-08300 |
ZVW35 50A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
ZVW35 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZVW35 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZVW35 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ZVW35 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ZVW35 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ZVW35 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW35 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW35 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47060 |
ZVW35 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-75010 |
ZVW35 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47090 |
ZVW35 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-71010 |
ZVW35 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ZVW35..USA |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ZVW35..USA |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ZVW35 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47040 |
ZVW35 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-75010 |
ZVW35 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47160 |
ZVW35 |
1 | ||
| 82662-47161 |
ZVW35 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-75010 |
ZVW35 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-47020 |
ZVW35 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ZVW35 |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02025 |
ZVW35 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ZVW35..USA |
1 | ||
| 90987-02025 |
ZVW35..(G,S)..USA DAYTIME RUNNING LIGHT SYSTEM-WITH(HI-BEAM REDUCTION) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW35 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90987-02027 |
ZVW35 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
