ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)

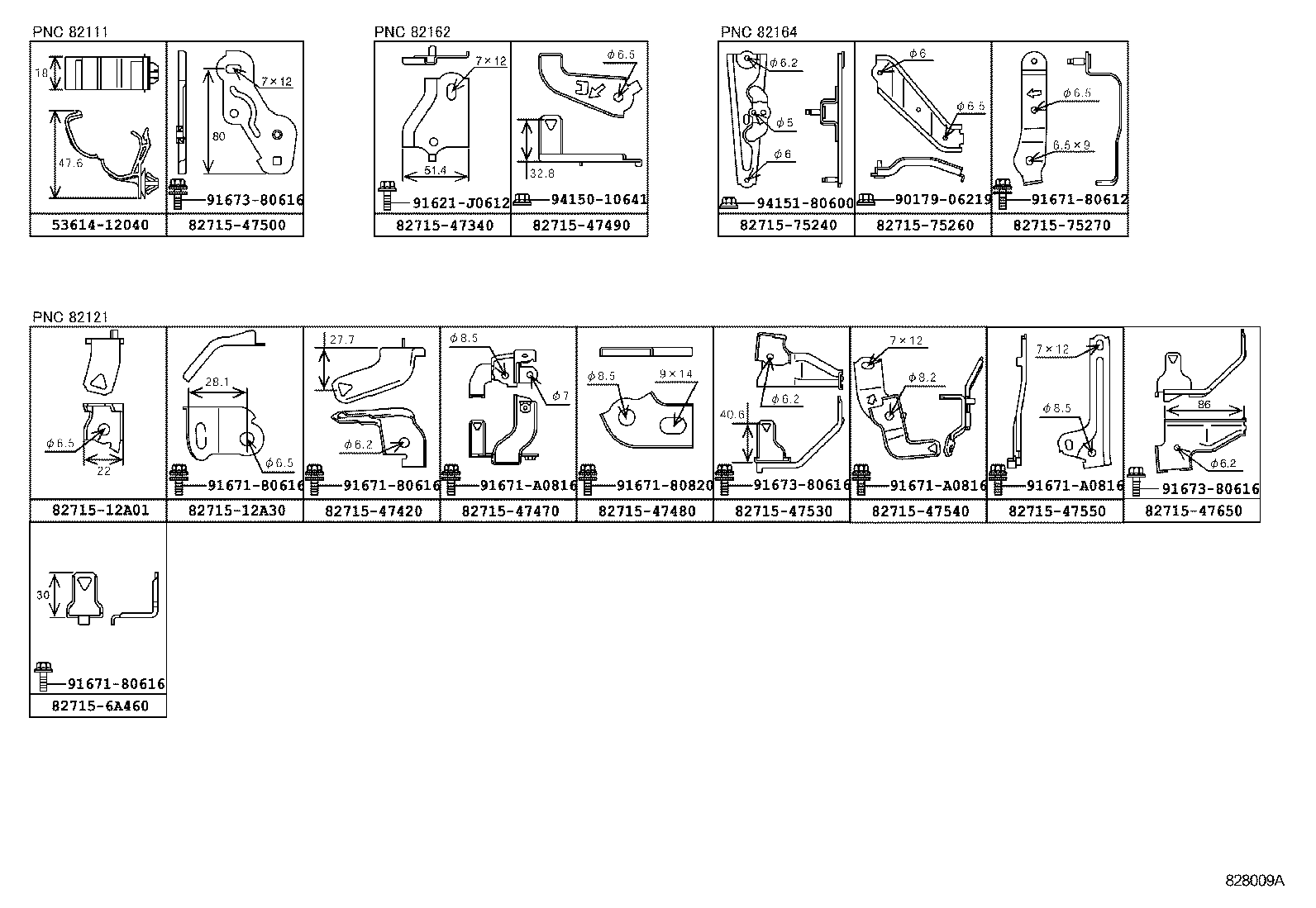

ILLUST NO. 9 OF12(1201- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53614-12040 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-47340 | ||||
| 82715-47420 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47490 | ||||
| 82715-47500 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 82715-47650 | ||||
| 82715-6A460 | ||||
| 82715-75240 | ||||
| 82715-75260 | ||||
| 82715-75270 | ||||
| 90179-06219 | ||||
| 91621-J0612 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91671-A0816 | ||||
| 91673-80616 | ||||
| 94150-10641 | ||||
| 94151-80600 | ||||

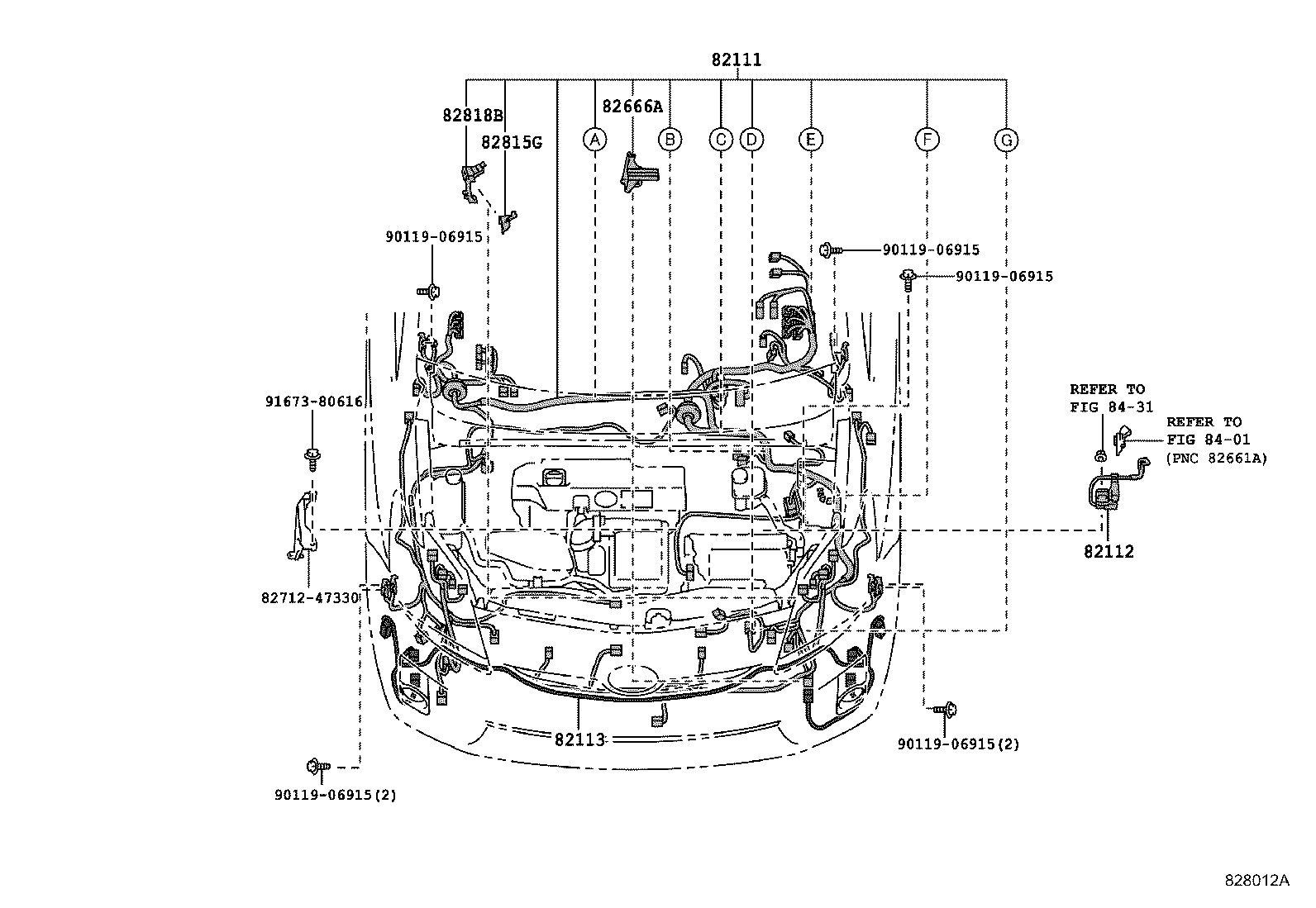

ILLUST NO. 1 OF12(1201- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-47A60 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 82111-47A50 |
ZVW35..L |
1 | ||
| 82111-47A60 |
ZVW35..(G,S)..USA |
1 | ||
| 82111-47A61 |
ZVW35..USA |
1 | ||
| 82111-47A63 |
ZVW35..USA |
1 | ||
| 82111-47A60 |
ZVW35..L |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-47030 |
ZVW35 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-47170 |
ZVW35..USA |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-47530 |
ZVW35 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47C60 |
ZVW35 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47J70 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82712-47330 | ||||
| 90119-06915 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8431 | ||||

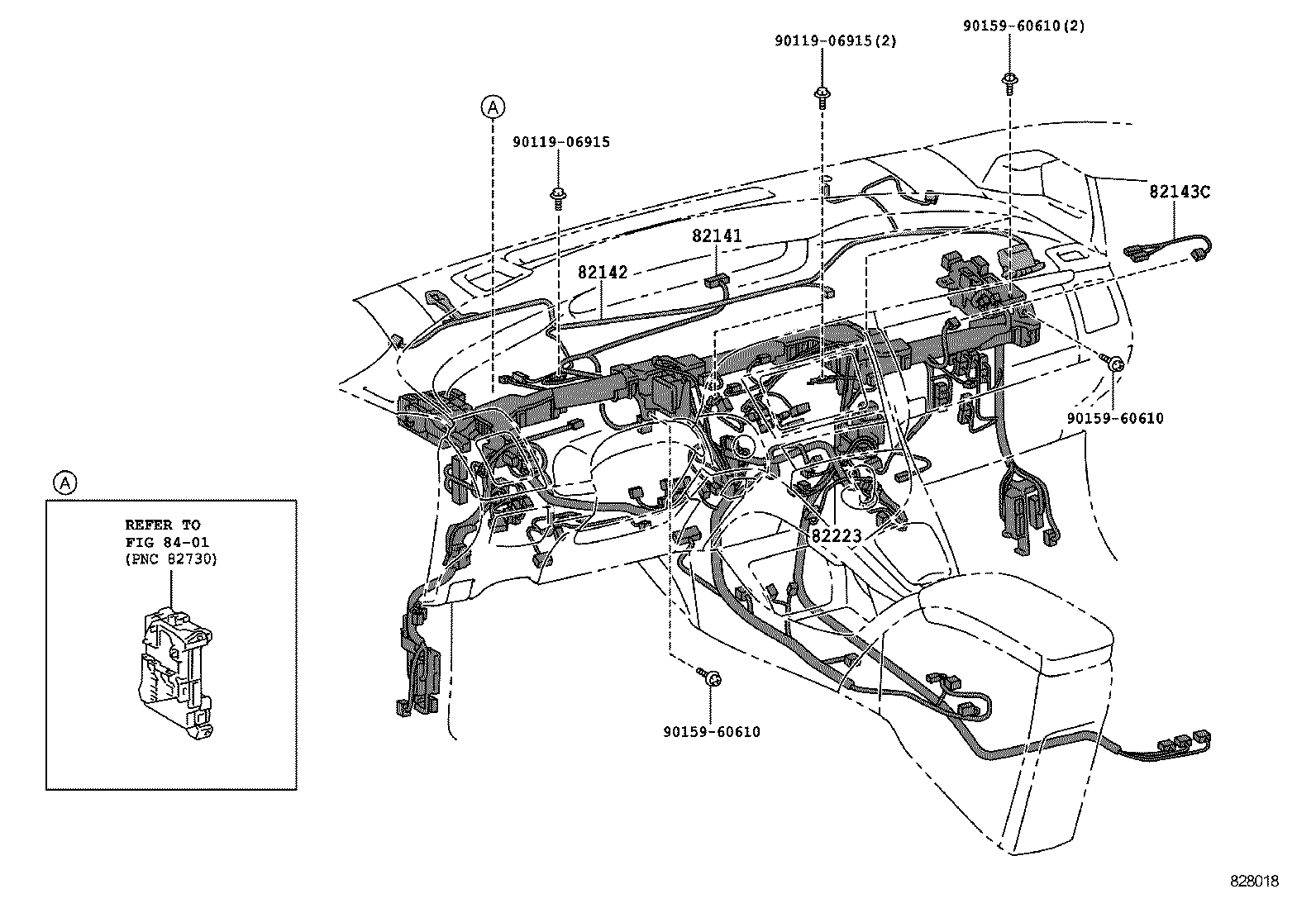

ILLUST NO. 4 OF12(1201- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-47W80 |
ZVW35..S..USA |
1 | ||
| 82145-47X00 |
ZVW35..S..USA SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER |
1 | ||
| 82145-47W81 |
ZVW35..S..USA |
1 | ||
| 82145-47X01 |
ZVW35..S..USA SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER |
1 | ||
| 82145-47W90 |
ZVW35..S..USA MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47X00 |
ZVW35..S..USA SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA SDARS *BT USB 6SPEAKER&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47Y10 |
ZVW35..L |
1 | ||
| 82145-47Y11 |
ZVW35..L |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-47170 |
ZVW35..L,S |
1 | ||
| 82142-47171 |
ZVW35..L,S |
1 | ||
| 82142-47100 |
ZVW35..(L,S)..USA MAYDAY SYSTEM-WITH |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-47050 |
ZVW35 |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-47020 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| Linked diagrams | ||||
| 8401 | ||||

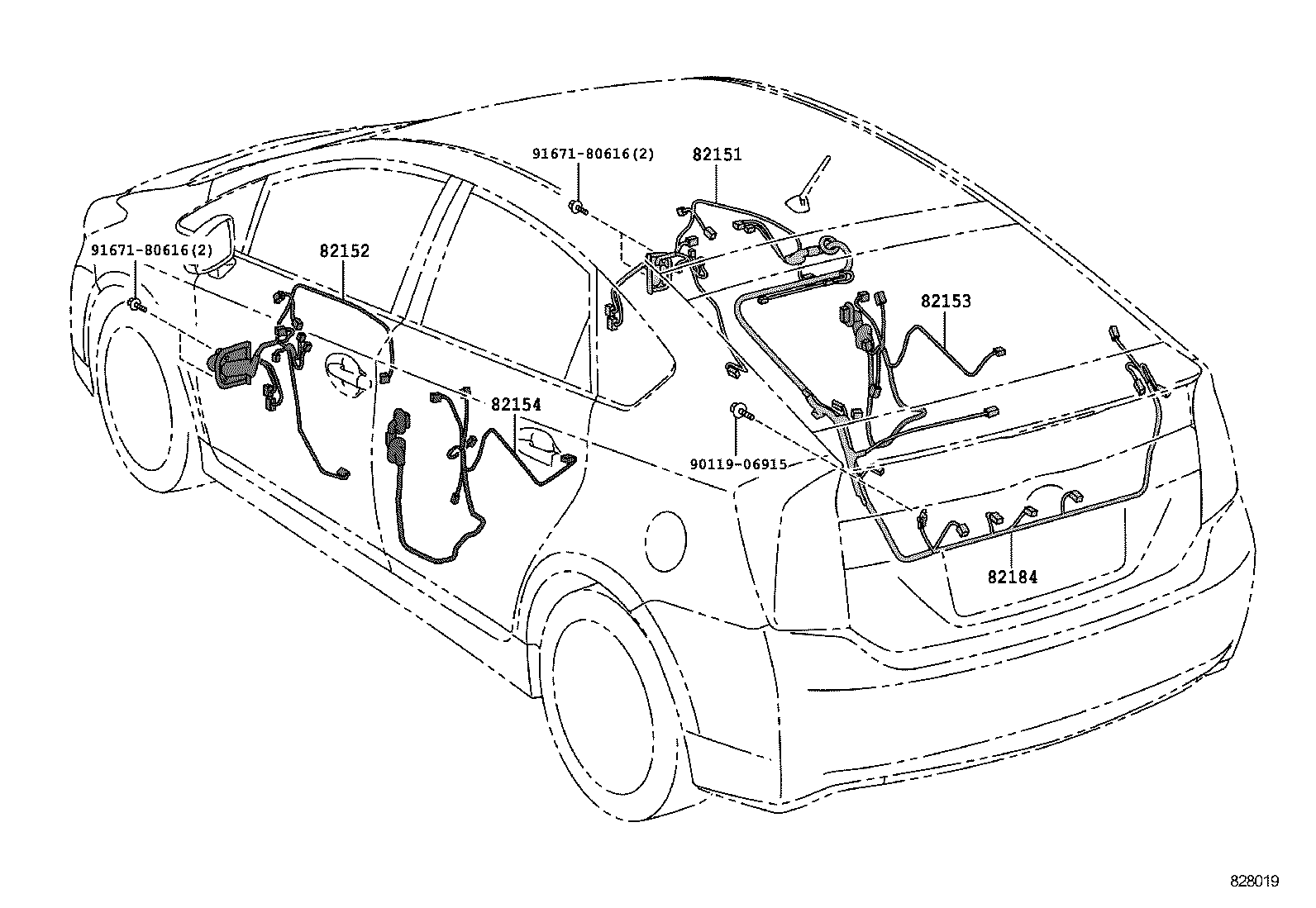

ILLUST NO. 5 OF12(1201- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-47330 |
ZVW35 |
1 | ||
| 82151-47670 |
ZVW35 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-47330 |
ZVW35 |
1 | ||
| 82152-47660 |
ZVW35 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-47310 |
ZVW35 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-47310 |
ZVW35 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-47340 |
ZVW35..L BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82184-47370 |
ZVW35..S..USA BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82184-47240 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER) |
1 | ||
| 82184-47240 |
ZVW35..S..USA |
1 | ||
| 82184-47400 |
ZVW35..L |
1 | ||
| 82184-47240 |
ZVW35..L |
1 | ||
| 82184-47370 |
ZVW35..L REAR WINDOW WIPER-WITH(INTERMITTENT REAR WIPER)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82184-47370 |
ZVW35..L BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||

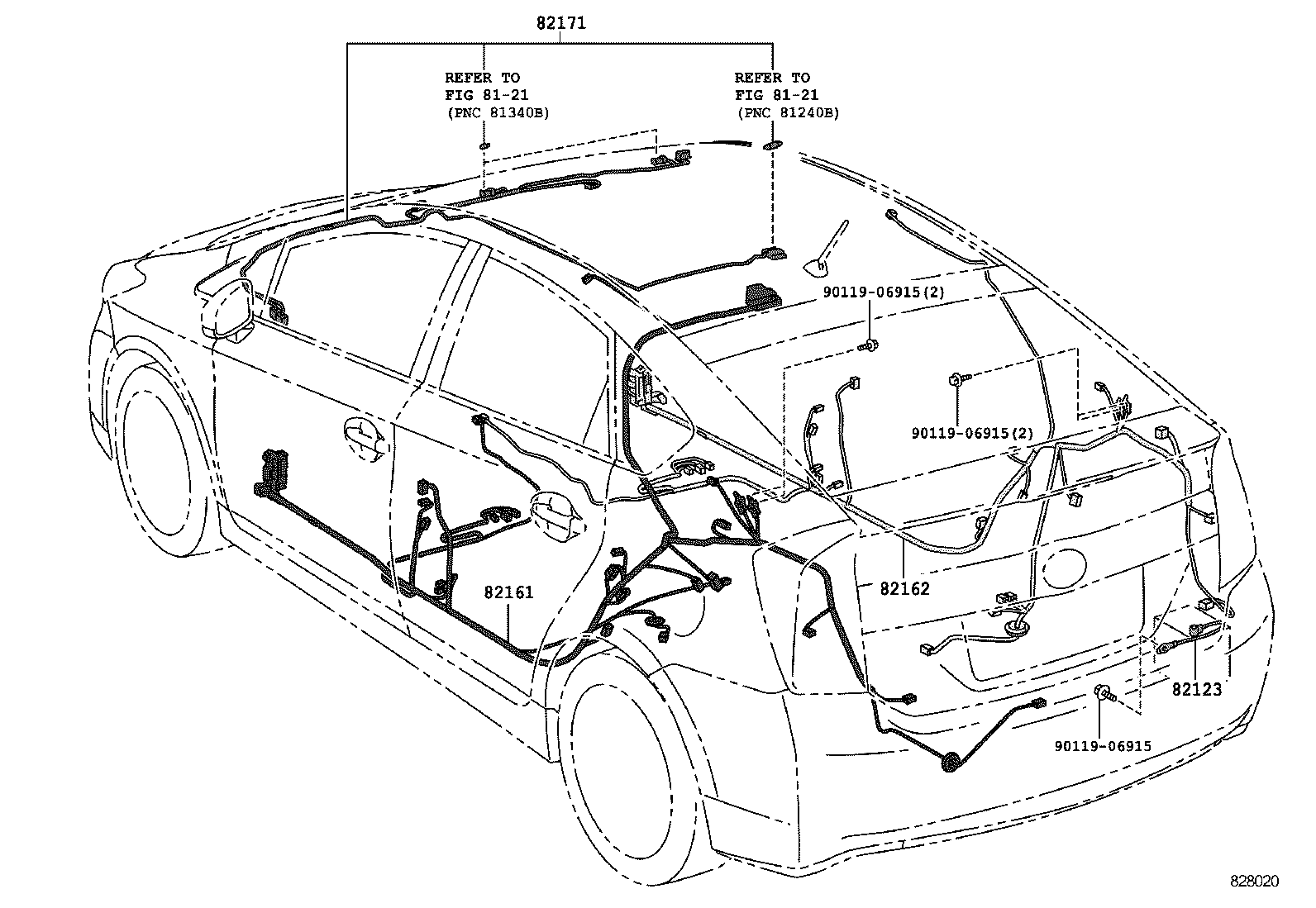

ILLUST NO. 6 OF12(1201- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-47040 |
ZVW35 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-47D30 |
ZVW35..(L,S)..USA |
1 | ||
| 82161-47D50 |
ZVW35..S..USA SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON) |
1 | ||
| 82161-47D32 |
ZVW35..(L,S)..USA |
1 | ||
| 82161-47D52 |
ZVW35..S..USA SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON) |
1 | ||
| 82161-47D30 |
ZVW35..(L,S)..USA |
1 | ||
| 82161-47D50 |
ZVW35..S..USA SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-47B90 |
ZVW35..(L,S)..USA |
1 | ||
| 82162-47B90 |
ZVW35..(L,S)..USA |
1 | ||
| 82162-47B92 |
ZVW35..(L,S)..USA |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-47280 |
ZVW35..L,S |
1 | ||
| 82171-47400 |
ZVW35..(L,S)..USA MAYDAY SYSTEM-WITH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||

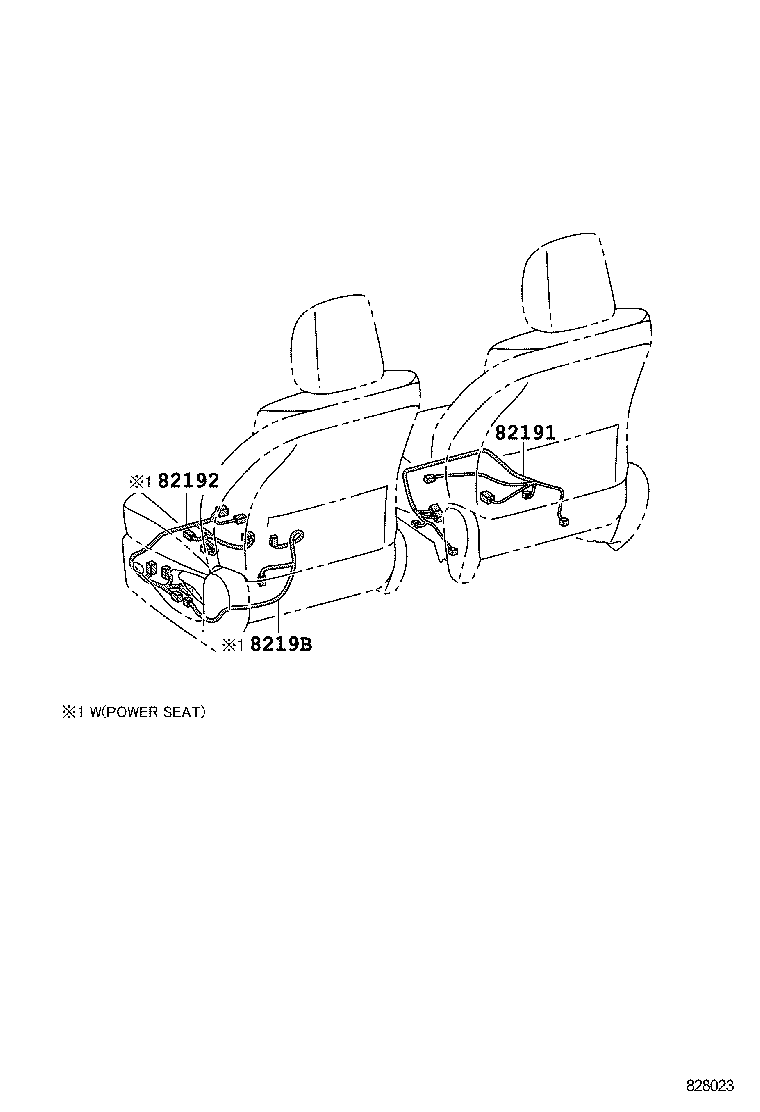

ILLUST NO. 7 OF12(1201- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-47030 |
ZVW35 |
1 | ||

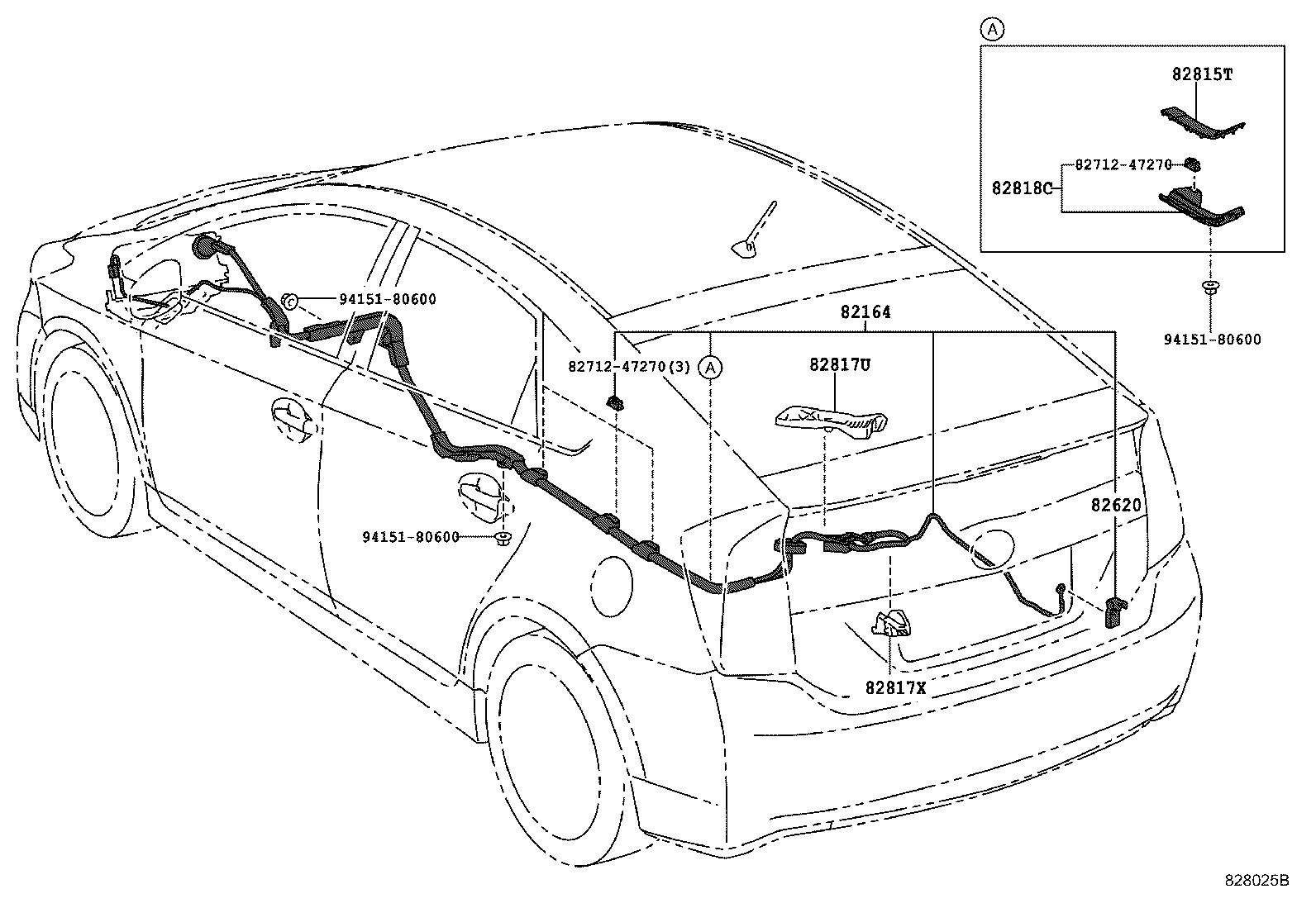

ILLUST NO. 8 OF12(1201- )
HIGH-TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-47151 |
ZVW35 |
1 | ||
| 82164-47150 |
ZVW35 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
ZVW35 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47430 |
ZVW35 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47440 |
ZVW35 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47430 |
ZVW35 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47670 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82712-47270 | ||||
| 94151-80600 | ||||

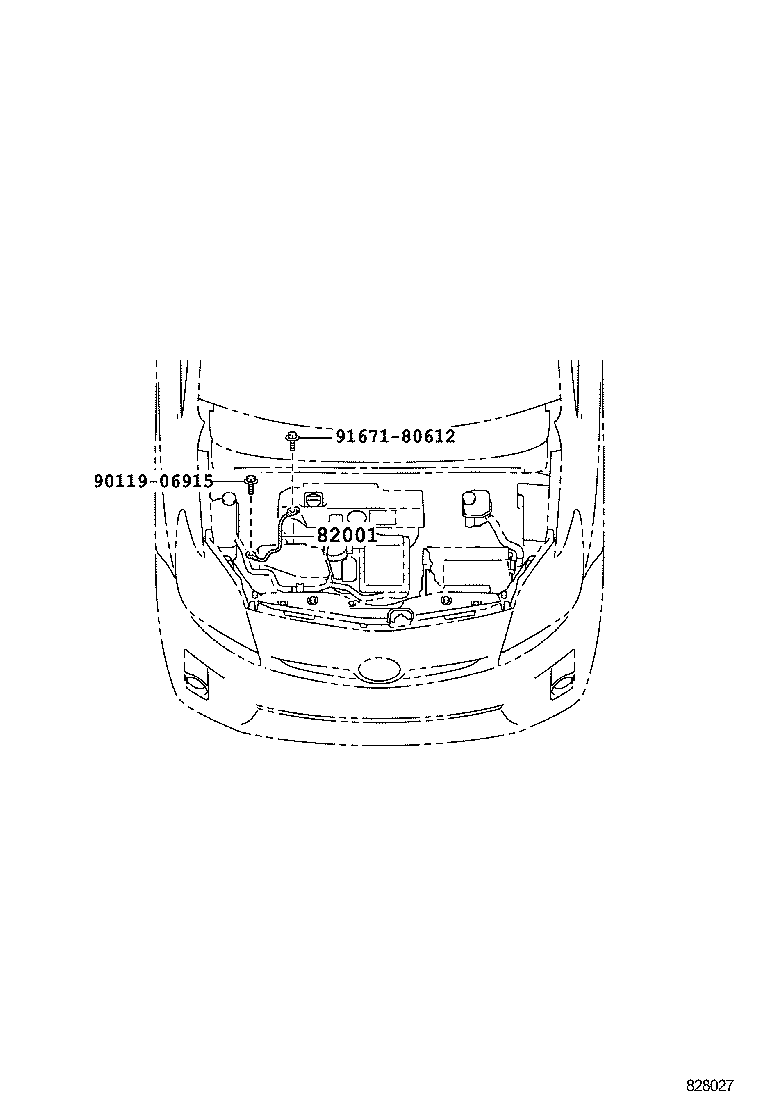

ILLUST NO.10 OF12(1201- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07463 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||

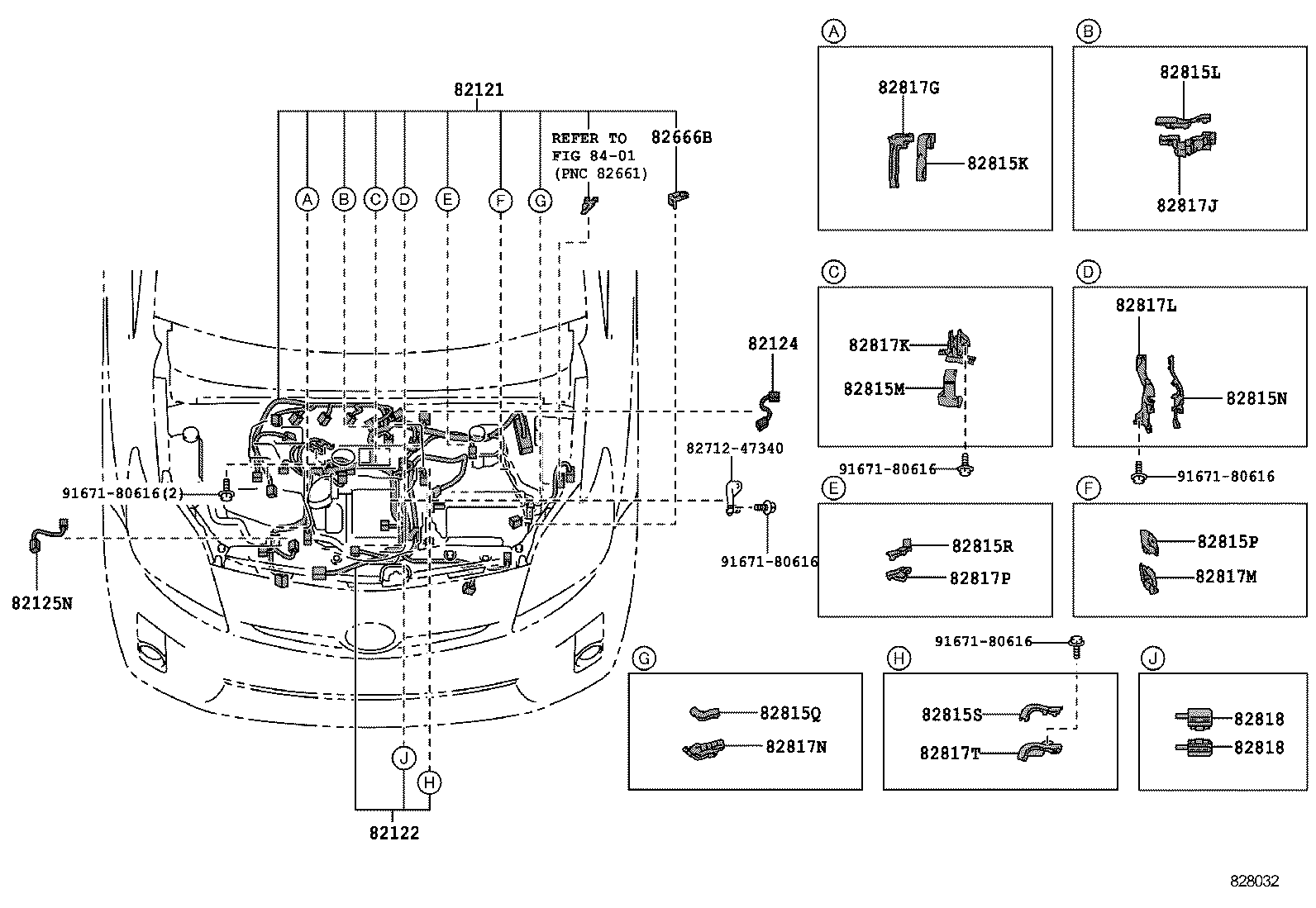

ILLUST NO. 3 OF12(1201- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-47181 |
ZVW35 |
1 | ||
| 82121-47180 |
ZVW35 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-47030 |
ZVW35 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZVW35 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82124-47040 |
ZVW35 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-47540 |
ZVW35 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47540 |
ZVW35 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47480 |
ZVW35 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47490 |
ZVW35 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47510 |
ZVW35 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47530 |
ZVW35 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47500 |
ZVW35 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47520 |
ZVW35 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47470 |
ZVW35 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47780 |
ZVW35 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47720 |
ZVW35 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47730 |
ZVW35 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47750 |
ZVW35 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47770 |
ZVW35 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47740 |
ZVW35 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47760 |
ZVW35 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47700 |
ZVW35 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47K70 |
ZVW35 |
2 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47K70 |
ZVW35 |
2 | ||
| Common parts | ||||
| 82712-47340 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

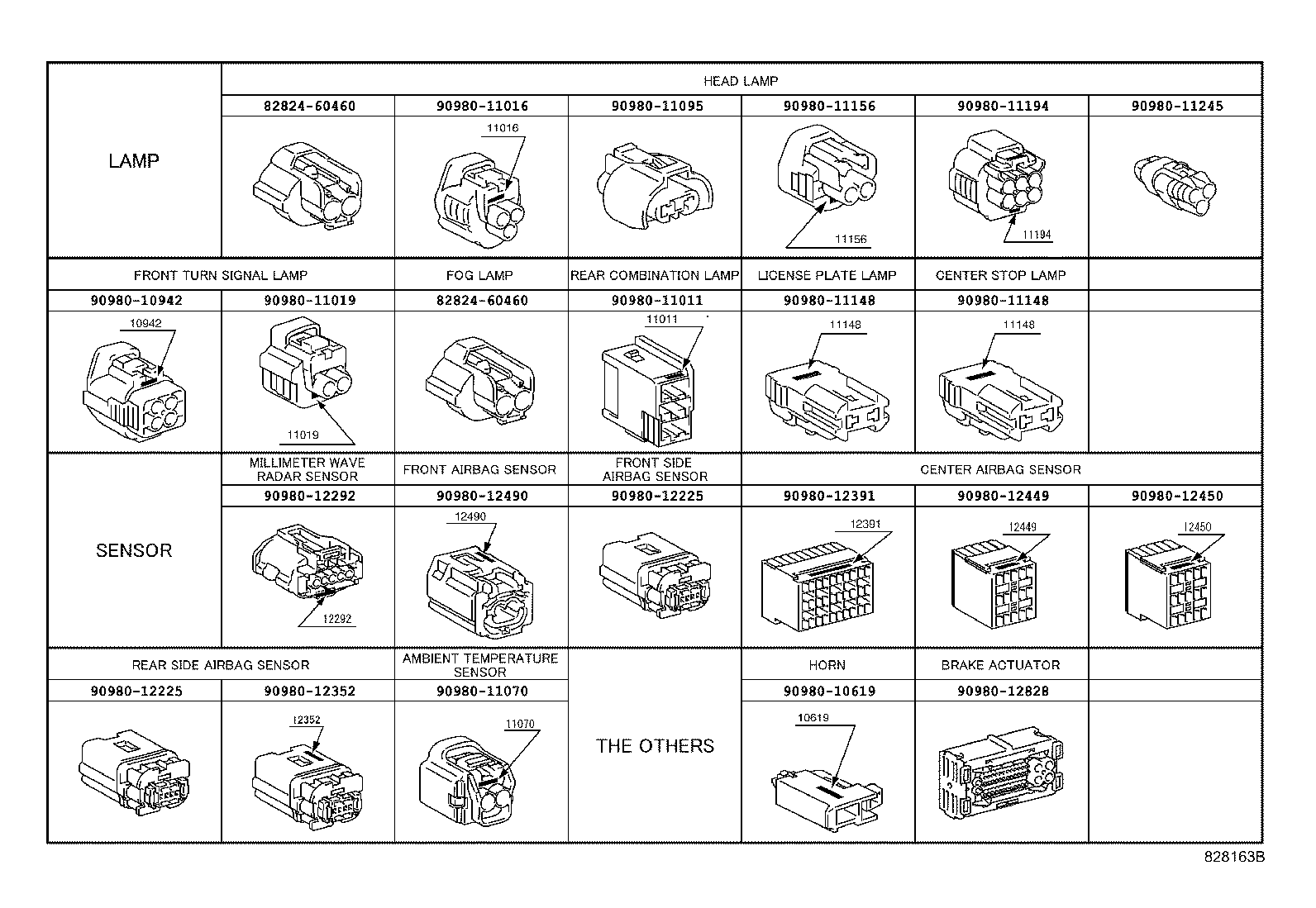

ILLUST NO.11 OF12(1201- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11095 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11245 | ||||
| 90980-12225 | ||||
| 90980-12292 | ||||
| 90980-12352 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12828 | ||||

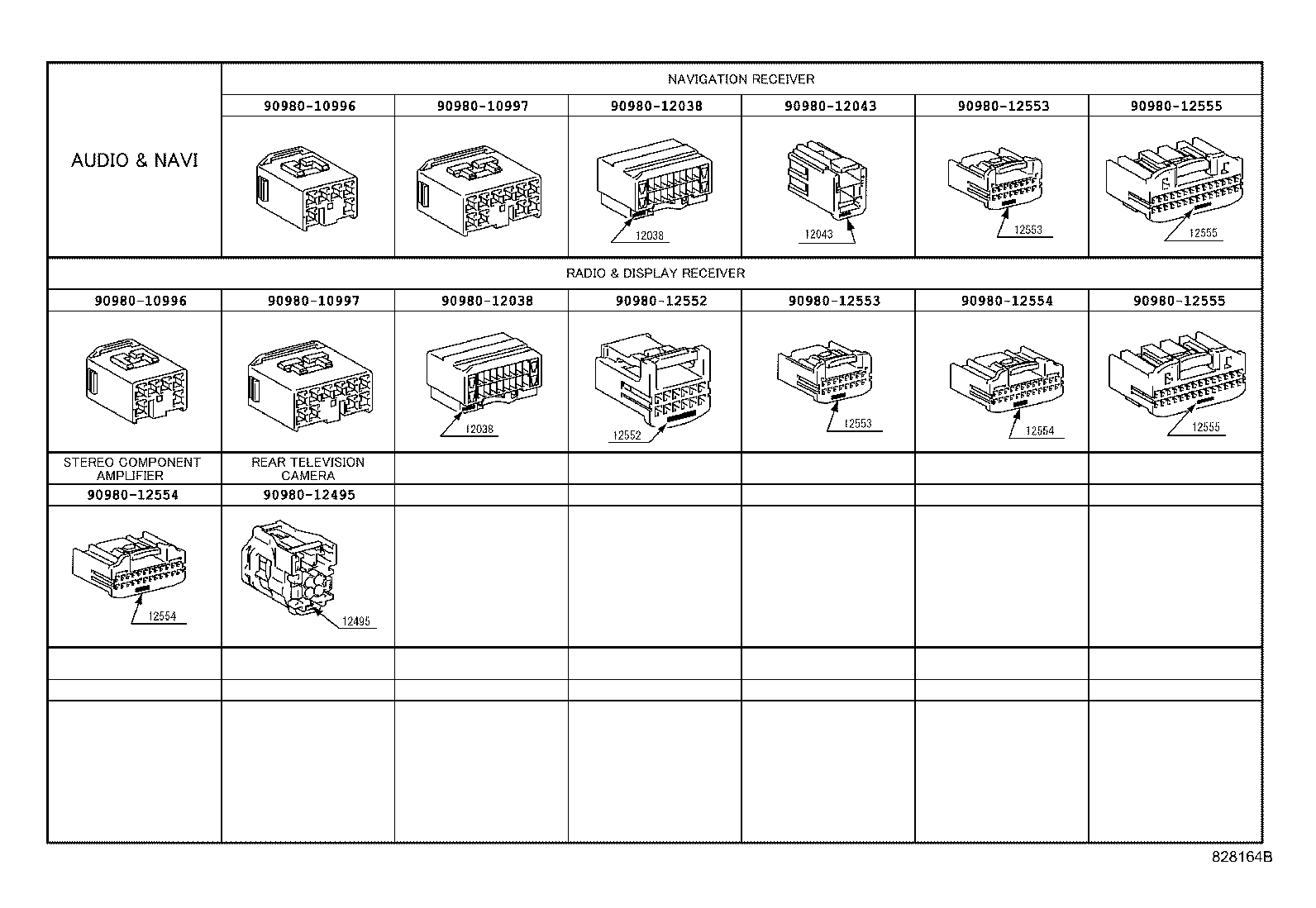

ILLUST NO.12 OF12(1201- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12038 | ||||
| 90980-12043 | ||||
| 90980-12495 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||

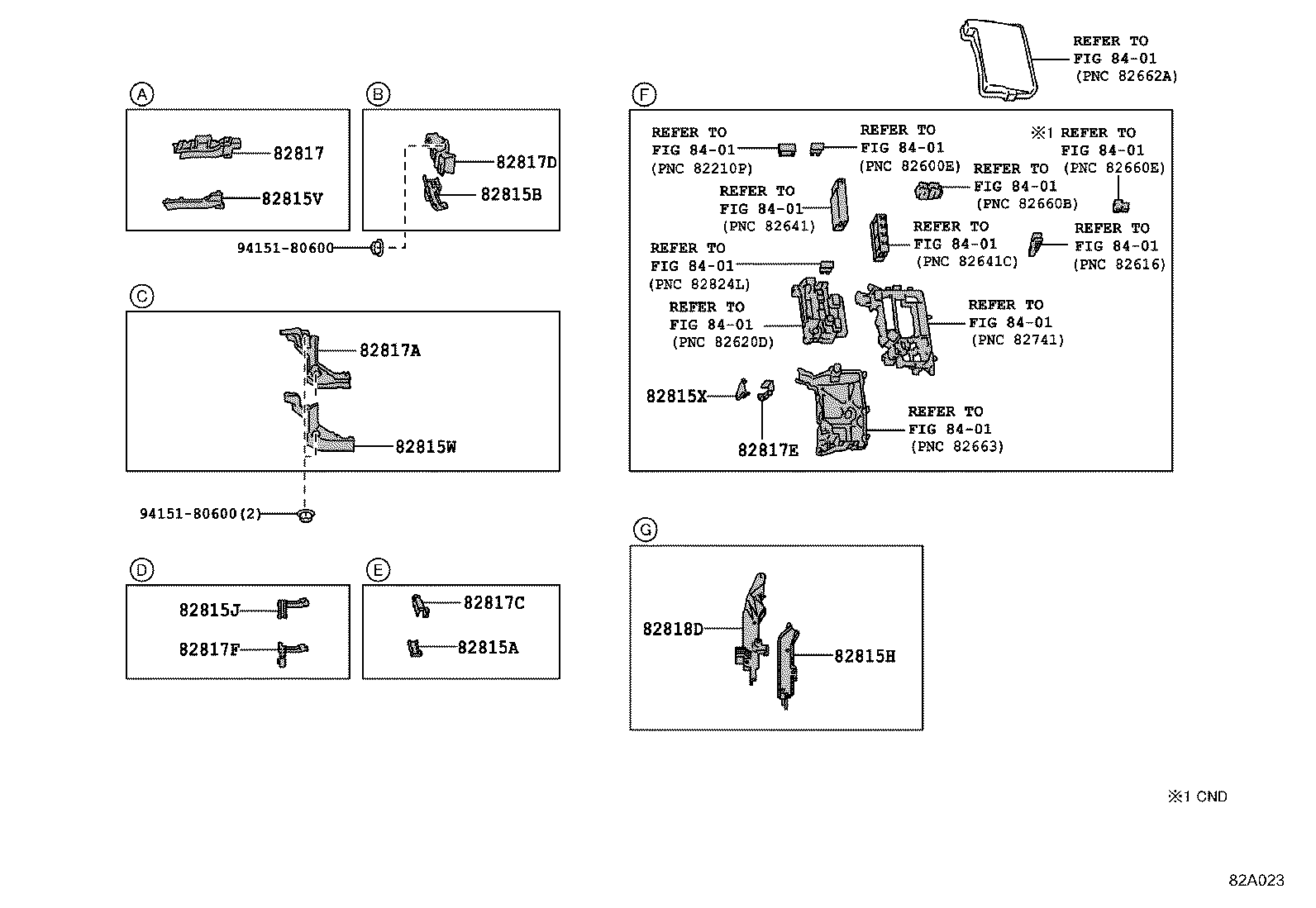

ILLUST NO. 2 OF12(1201- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47380 |
ZVW35 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47600 |
ZVW35 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47550 |
ZVW35 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47560 |
ZVW35 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47620 |
ZVW35 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47610 |
ZVW35 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47390 |
ZVW35 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47870 |
ZVW35 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47860 |
ZVW35 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47600 |
ZVW35 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47850 |
ZVW35 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47620 |
ZVW35 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47800 |
ZVW35 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47G50 |
ZVW35 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
