ZVW35L-BHXBBA (2012)
Toyota Prius(Plug-In Hbd)
Production
Jan 2012
-
Jun 2015
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 5(1201- )
Click highlighted areas on diagram

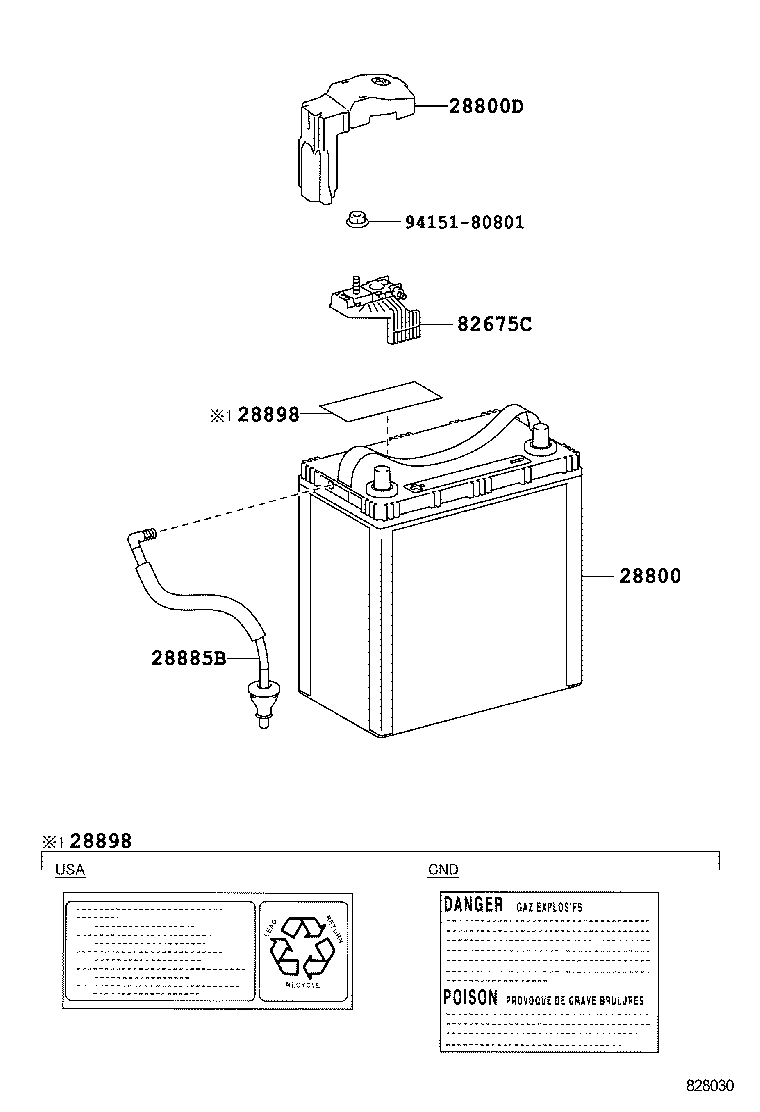

12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-21171 |
2ZRFXE..ZVW35 S46B24R |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-47110 |
2ZRFXE..ZVW35 |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-37010 |
2ZRFXE..ZVW35 |
1 | ||
| 28885-37060 |
2ZRFXE..ZVW35 |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-26010 |
2ZRFXE..ZVW35..USA |
1 | ||
| 28898 - PLATE, BATTERY | ||||
| 28898-26010 |
2ZRFXE..ZVW35..USA |
1 | ||
| 82675C - TERMINAL, JUNCTION | ||||
| 82675-47160 |
ZVW35 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||

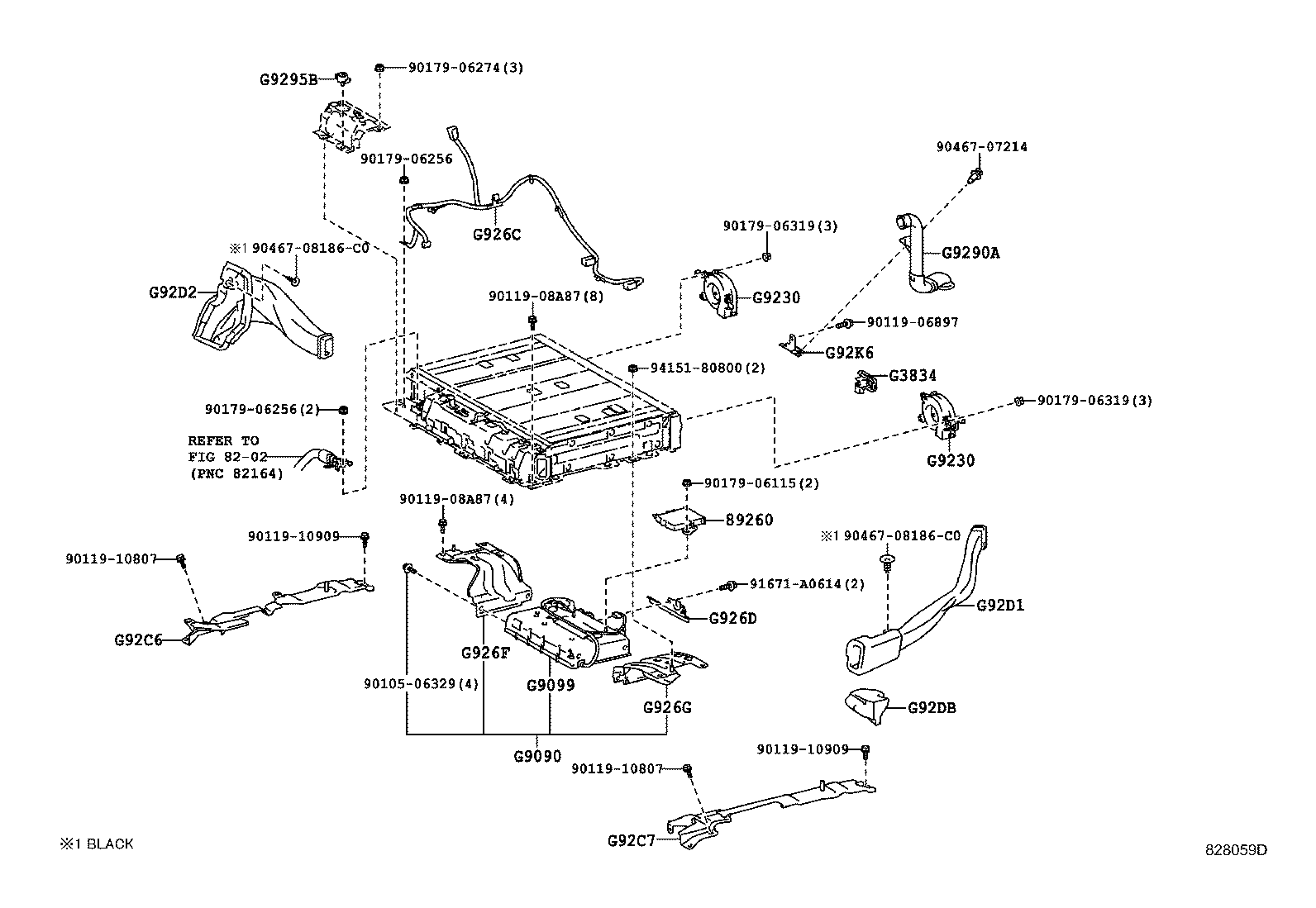

ILLUST NO. 3 OF 5(1201- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89260 - COMPUTER ASSY, PLUGIN CHARGE CONTROL | ||||
| 89260-47011 |
ZVW35 |
1 | ||
| 89260-47050 |
ZVW35 |
1 | ||
| 89260-47010 |
ZVW35 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-47040 |
ZVW35 |
1 | ||
| G9090 - CHARGER ASSY, ELECTRIC VEHICLE | ||||
| G9090-47040 |
ZVW35 |
1 | ||
| G9099 - CHARGER SUB-ASSY, ELECTRIC VEHICLE | ||||
| G9099-47010 |
ZVW35 |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-47010 |
ZVW35 |
2 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-47010 |
ZVW35 |
2 | ||
| G926C - WIRE, EV CHARGER | ||||
| G926C-47020 |
ZVW35 |
1 | ||
| G926D - BRACKET, EV CHARGE CONNECTOR | ||||
| G926D-47010 |
ZVW35 |
1 | ||
| G926F - BRACKET, EV CHARGER MOUNT, NO.1 | ||||
| G926F-47010 |
ZVW35 |
1 | ||
| G926G - BRACKET, EV CHARGER MOUNT, NO.2 | ||||
| G926G-47010 |
ZVW35 |
1 | ||
| G9290A - HOSE ASSY, HYBRID BATTERY | ||||
| G9290-47020 |
ZVW35 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
ZVW35 |
1 | ||
| G92C6 - BRACKET, HV BATTERY MOUNT, NO.1 | ||||
| G92C6-47020 |
ZVW35 |
1 | ||
| G92C6-47021 |
ZVW35 |
1 | ||
| G92C6-47022 |
ZVW35 |
1 | ||
| G92C7 - BRACKET, HV BATTERY MOUNT, NO.2 | ||||
| G92C7-47020 |
ZVW35 |
1 | ||
| G92C7-47021 |
ZVW35 |
1 | ||
| G92C7-47022 |
ZVW35 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92D1-47090 |
ZVW35 |
1 | ||
| G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2 | ||||
| G92D2-47010 |
ZVW35 |
1 | ||
| G92DB - SEAL, HYBRID BATTERY, NO.1 | ||||
| G92DB-47040 |
ZVW35 |
1 | ||
| G92K6 - BRACKET, HV BATTERY CARRIER, NO.4 | ||||
| G92K6-47030 |
ZVW35 |
1 | ||
| Common parts | ||||
| 90105-06329 | ||||
| 90119-06897 | ||||
| 90119-08A87 | ||||
| 90119-10807 | ||||
| 90119-10909 | ||||
| 90179-06115 | ||||
| 90179-06256 | ||||
| 90179-06274 | ||||
| 90179-06319 | ||||
| 90467-07214 | ||||
| 90467-08186C0 | ||||
| 91671-A0614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

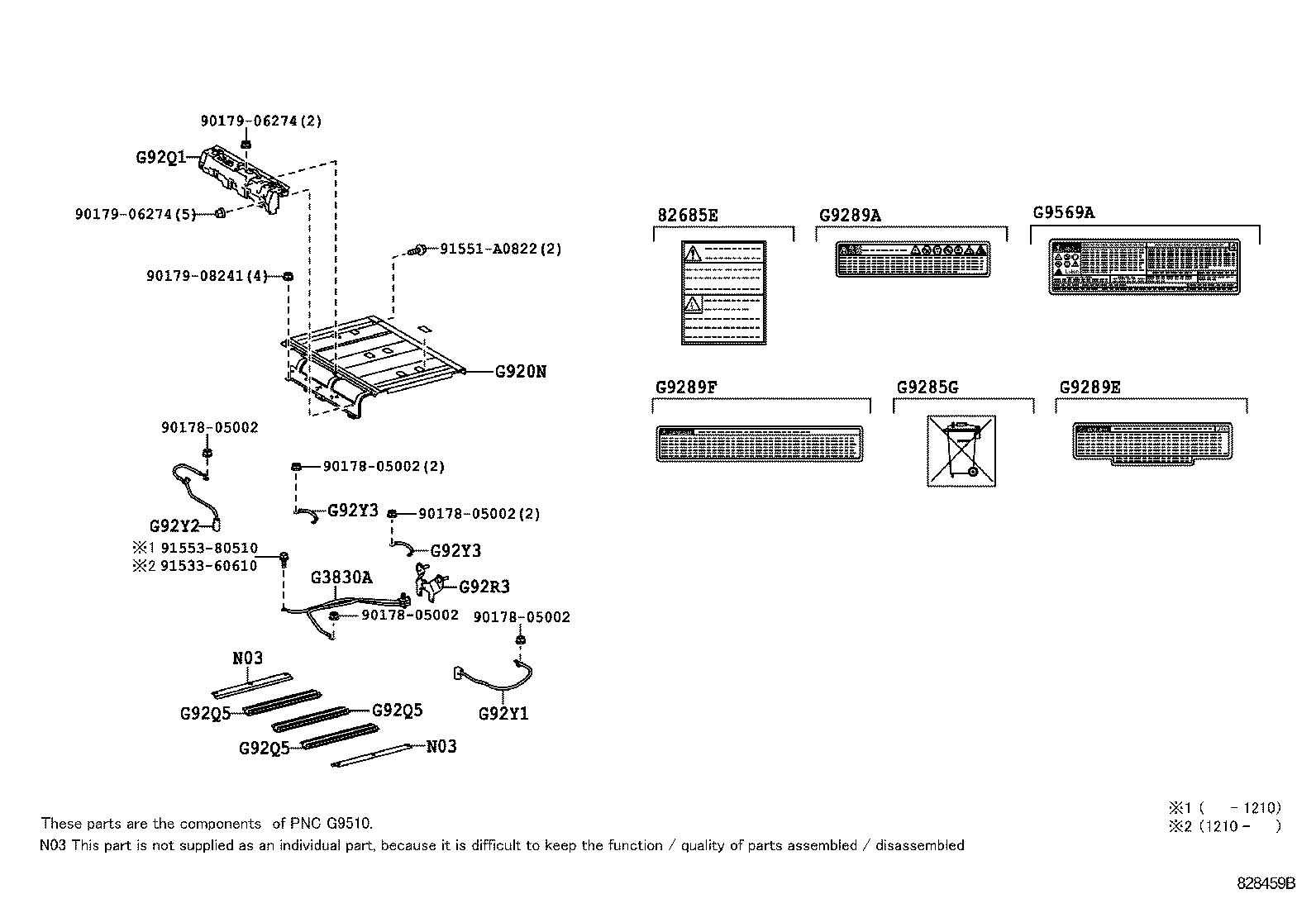

ILLUST NO. 4 OF 5(1201- )USA
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47100 |
ZVW35 |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-47010 |
ZVW35 |
1 | ||
| 89892-47011 |
ZVW35 |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G9295C - STRIKER, BATTERY COVER LOCK, NO.2 | ||||
| G9295-30020 |
ZVW35 |
1 | ||
| G929A - HOSE, HV BATTERY, NO.1 | ||||
| G929A-47040 |
ZVW35 |
1 | ||
| G929B - HOSE, HV BATTERY, NO.2 | ||||
| G929B-47010 |
ZVW35 |
1 | ||
| G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3 | ||||
| G92D3-47030 |
ZVW35 |
1 | ||
| G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4 | ||||
| G92D4-47040 |
ZVW35 |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47040 |
ZVW35 |
2 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47040 |
ZVW35 |
2 | ||
| G92D6 - DUCT, HYBRID BATTERY INTAKE, NO.6 | ||||
| G92D6-47010 |
ZVW35 |
2 | ||
| G92D6 - DUCT, HYBRID BATTERY INTAKE, NO.6 | ||||
| G92D6-47010 |
ZVW35 |
2 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-47030 |
ZVW35 |
2 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-47030 |
ZVW35 |
2 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-47020 |
ZVW35 |
2 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-47020 |
ZVW35 |
2 | ||
| G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3 | ||||
| G92F3-47010 |
ZVW35 |
2 | ||
| G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3 | ||||
| G92F3-47010 |
ZVW35 |
2 | ||
| G92N1A - PANEL, HV BATTERY LH COVER, NO.1 | ||||
| G92N1-47030 |
ZVW35 |
1 | ||
| G92N4A - PANEL, HV BATTERY RH COVER, NO.1 | ||||
| G92N4-47040 |
ZVW35 |
1 | ||
| G92Q2 - PANEL, HV BATTERY SHIELD, NO.2 | ||||
| G92Q2-47040 |
ZVW35 |
1 | ||
| G92R1 - SHIELD, HYBRID BATTERY, REAR NO.1 | ||||
| G92R1-47030 |
ZVW35 |
1 | ||
| G92S9 - TERMINAL, HV BATTERY, NO.6 | ||||
| G92S9-47011 |
ZVW35 |
1 | ||
| G92S9-47010 |
ZVW35 |
1 | ||
| G92S9 - TERMINAL, HV BATTERY, NO.6 | ||||
| G92S9-47011 |
ZVW35 |
1 | ||
| G92S9-47010 |
ZVW35 |
1 | ||
| G92S9 - TERMINAL, HV BATTERY, NO.6 | ||||
| G92S9-47011 |
ZVW35 |
1 | ||
| G92S9-47010 |
ZVW35 |
1 | ||
| G92S9 - TERMINAL, HV BATTERY, NO.6 | ||||
| G92S9-47011 |
ZVW35 |
1 | ||
| G92S9-47010 |
ZVW35 |
1 | ||
| G92V7 - COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A | ||||
| G92V7-47010 |
ZVW35 |
1 | ||
| G92V7 - COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A | ||||
| G92V7-47010 |
ZVW35 |
1 | ||
| G92V7 - COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A | ||||
| G92V7-47010 |
ZVW35 |
1 | ||
| G92V7 - COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A | ||||
| G92V7-47010 |
ZVW35 |
1 | ||
| G92X4 - WIRE, HV BATTERY PACK, NO.4 | ||||
| G92X4-47020 |
ZVW35 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-47040 |
ZVW35 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47010 |
ZVW35 |
1 | ||
| G92Z2-47011 |
ZVW35 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47010 |
ZVW35 |
1 | ||
| G92Z2-47011 |
ZVW35 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47010 |
ZVW35 |
1 | ||
| G92Z2-47011 |
ZVW35 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47010 |
ZVW35 |
1 | ||
| G92Z2-47011 |
ZVW35 |
1 | ||
| G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1 | ||||
| G9508-49175 |
ZVW35..USA NO.1,*309 |
1 | ||
| G9508-49015 |
ZVW35..USA NO.1,*309 |
1 | ||
| G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2 | ||||
| G9508-49055 |
ZVW35..USA NO.2,*309 |
1 | ||
| G9508-49215 |
ZVW35..USA NO.2,*309 |
1 | ||
| G950A - STACK SUB-ASSY, HV SUPPLY, NO.3 | ||||
| G9508-49095 |
ZVW35..USA NO.3,*309 |
1 | ||
| G9508-49255 |
ZVW35..USA NO.3,*309 |
1 | ||
| G950B - STACK SUB-ASSY, HV SUPPLY, NO.4 | ||||
| G9508-49295 |
ZVW35..USA NO.4,*309 |
1 | ||
| G9508-49135 |
ZVW35..USA NO.4,*309 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-47091 |
ZVW35 |
1 | ||
| G9510-47090 |
ZVW35 |
1 | ||
| Common parts | ||||
| 82711-3F230 | ||||
| 82817-47K30 | ||||
| 90119-06897 | ||||
| 90159-40282 | ||||
| 90178-05002 | ||||
| 90467-05090B1 | ||||
| 91533-60610 | ||||
| 91553-80510 | ||||

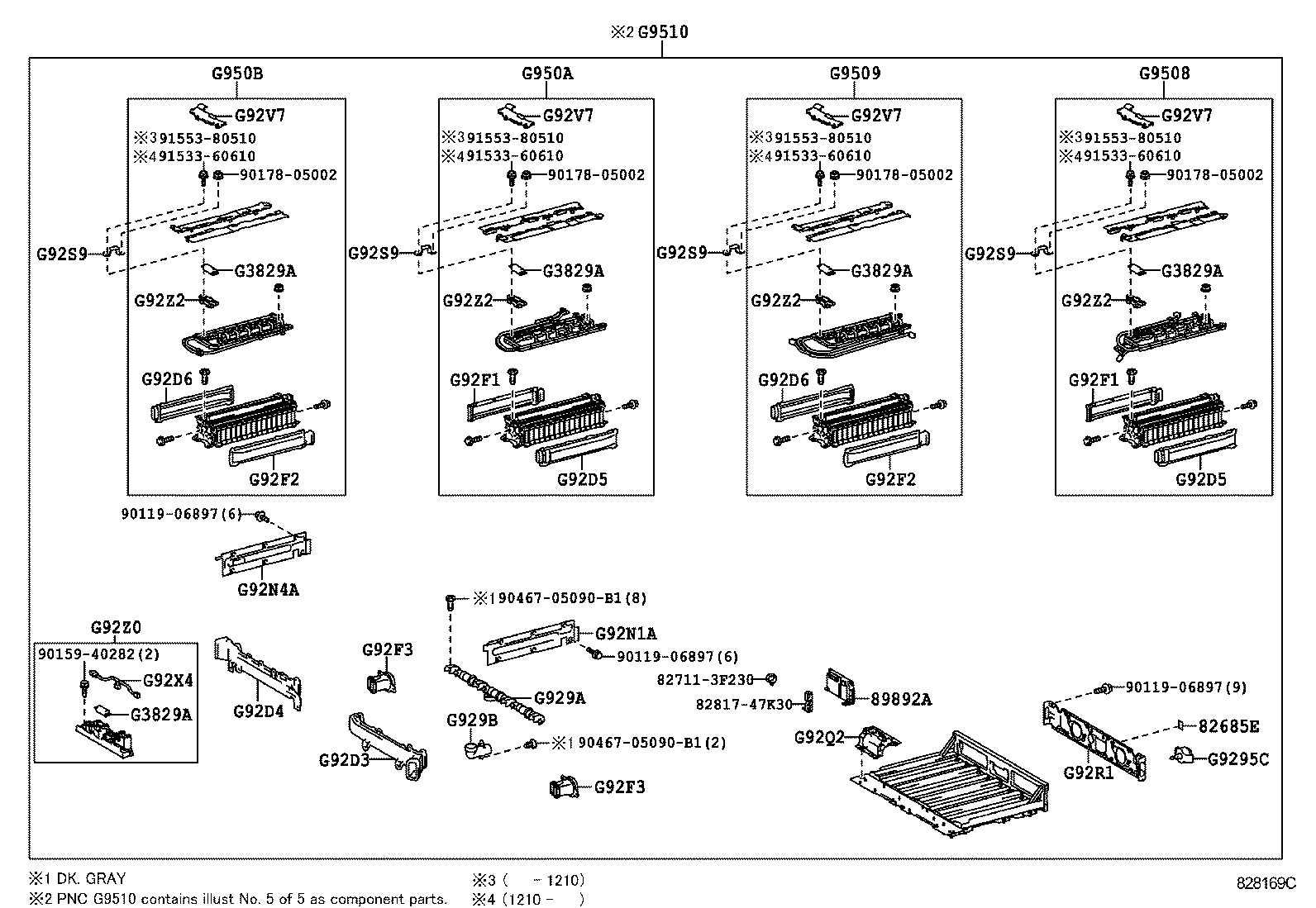

ILLUST NO. 4 OF 5(1201- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47100 |
ZVW35 |
1 | ||
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47100 |
ZVW35 |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-47010 |
ZVW35 |
1 | ||
| 89892-47011 |
ZVW35 |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZVW35 30A |
1 | ||
| G3829-47040 |
ZVW35 150A |
1 | ||
| G3829-47042 |
ZVW35 150A |
1 | ||
| G3829-47041 |
ZVW35 150A |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-47061 |
ZVW35 |
1 | ||
| G3830-47060 |
ZVW35 |
1 | ||
| G920N - COVER SUB-ASSY, HV BATTERY, UPPER NO.2 | ||||
| G920N-47060 |
ZVW35 |
1 | ||
| G9285G - LABEL, HV BATTERY INFORMATION, NO.1 | ||||
| G9285-47060 |
ZVW35 |
4 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9569-47070 |
ZVW35 |
4 | ||
| G9289E - LABEL, BATTERY CAUTION, NO.2 | ||||
| G9569-47080 |
ZVW35 |
4 | ||
| G9289F - LABEL, BATTERY CAUTION, NO.3 | ||||
| G9569-47090 |
ZVW35 |
4 | ||
| G9295C - STRIKER, BATTERY COVER LOCK, NO.2 | ||||
| G9295-30020 |
ZVW35 |
1 | ||
| G929A - HOSE, HV BATTERY, NO.1 | ||||
| G929A-47040 |
ZVW35 |
1 | ||
| G929B - HOSE, HV BATTERY, NO.2 | ||||
| G929B-47010 |
ZVW35 |
1 | ||
| G92D3 - DUCT, HYBRID BATTERY INTAKE, NO.3 | ||||
| G92D3-47030 |
ZVW35 |
1 | ||
| G92D4 - DUCT, HYBRID BATTERY INTAKE, NO.4 | ||||
| G92D4-47040 |
ZVW35 |
1 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47040 |
ZVW35 |
2 | ||
| G92D5 - DUCT, HYBRID BATTERY INTAKE, NO.5 | ||||
| G92D5-47040 |
ZVW35 |
2 | ||
| G92D6 - DUCT, HYBRID BATTERY INTAKE, NO.6 | ||||
| G92D6-47010 |
ZVW35 |
2 | ||
| G92D6 - DUCT, HYBRID BATTERY INTAKE, NO.6 | ||||
| G92D6-47010 |
ZVW35 |
2 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-47030 |
ZVW35 |
2 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-47030 |
ZVW35 |
2 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-47020 |
ZVW35 |
2 | ||
| G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2 | ||||
| G92F2-47020 |
ZVW35 |
2 | ||
| G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3 | ||||
| G92F3-47010 |
ZVW35 |
2 | ||
| G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3 | ||||
| G92F3-47010 |
ZVW35 |
2 | ||
| G92N1A - PANEL, HV BATTERY LH COVER, NO.1 | ||||
| G92N1-47030 |
ZVW35 |
1 | ||
| G92N4A - PANEL, HV BATTERY RH COVER, NO.1 | ||||
| G92N4-47040 |
ZVW35 |
1 | ||
| G92Q1 - PANEL, HV BATTERY SHIELD, NO.1 | ||||
| G92Q1-47040 |
ZVW35 |
1 | ||
| G92Q2 - PANEL, HV BATTERY SHIELD, NO.2 | ||||
| G92Q2-47040 |
ZVW35 |
1 | ||
| G92Q5 - REINFORCEMENT, HV BATTERY SHIELD, NO.2 | ||||
| G92Q5-47010 |
ZVW35 |
3 | ||
| G92Q5 - REINFORCEMENT, HV BATTERY SHIELD, NO.2 | ||||
| G92Q5-47010 |
ZVW35 |
3 | ||
| G92Q5 - REINFORCEMENT, HV BATTERY SHIELD, NO.2 | ||||
| G92Q5-47010 |
ZVW35 |
3 | ||
| G92R1 - SHIELD, HYBRID BATTERY, REAR NO.1 | ||||
| G92R1-47030 |
ZVW35 |
1 | ||
| G92R3 - BRACKET, HV BATTERY REAR SHIELD, NO.1 | ||||
| G92R3-47020 |
ZVW35 |
1 | ||
| G92S9 - TERMINAL, HV BATTERY, NO.6 | ||||
| G92S9-47011 |
ZVW35 |
1 | ||
| G92S9-47010 |
ZVW35 |
1 | ||
| G92V7 - COVER, HV BATTERY BUS-BAR BLOCK, NO.3 A | ||||
| G92V7-47010 |
ZVW35 |
1 | ||
| G92X4 - WIRE, HV BATTERY PACK, NO.4 | ||||
| G92X4-47020 |
ZVW35 |
1 | ||
| G92Y1 - CABLE, HV BATTERY PACK, NO.1 | ||||
| G92Y1-47030 |
ZVW35 |
1 | ||
| G92Y2 - CABLE, HV BATTERY PACK, NO.2 | ||||
| G92Y2-47020 |
ZVW35 |
1 | ||
| G92Y3 - CABLE, HV BATTERY PACK, NO.3 | ||||
| G92Y3-47020 |
ZVW35 |
2 | ||
| G92Y3 - CABLE, HV BATTERY PACK, NO.3 | ||||
| G92Y3-47020 |
ZVW35 |
2 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-47040 |
ZVW35 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47010 |
ZVW35 |
1 | ||
| G92Z2-47011 |
ZVW35 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-47091 |
ZVW35 |
1 | ||
| G9510-47090 |
ZVW35 |
1 | ||
| G9569A - LABEL, LITHIUM ION BATTERY CAUTION | ||||
| G9569-47110 |
ZVW35..USA |
1 | ||
| Common parts | ||||
| 82711-3F230 | ||||
| 82817-47K30 | ||||
| 90119-06897 | ||||
| 90159-40282 | ||||
| 90178-05002 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 90467-05090B1 | ||||
| 91533-60610 | ||||
| 91551-A0822 | ||||
| 91553-80510 | ||||

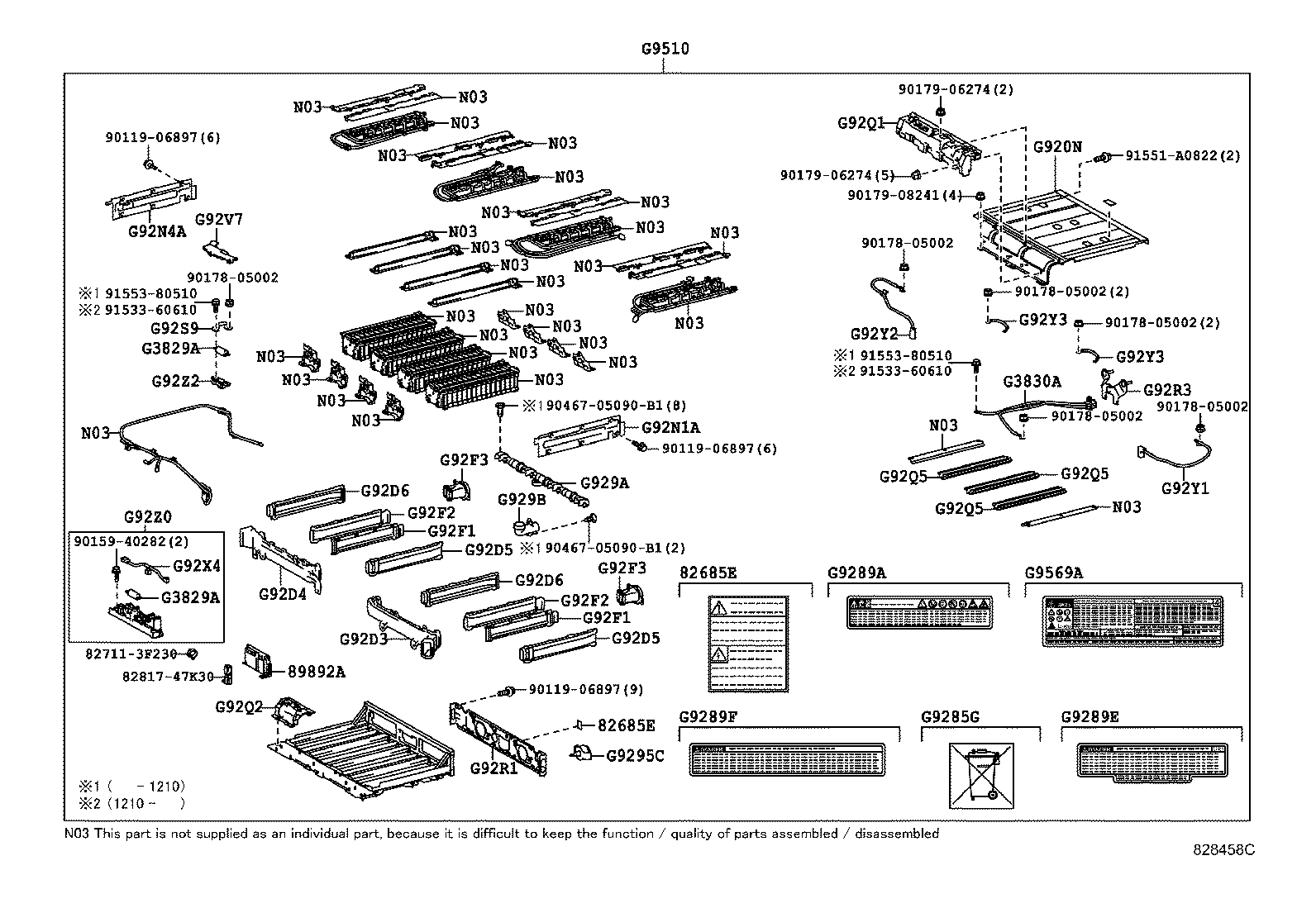

ILLUST NO. 5 OF 5(1201- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82685E - PLATE, SERVICE PLUG CAUTION | ||||
| 82685-47100 |
ZVW35 |
1 | ||
| G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY | ||||
| G3830-47061 |
ZVW35 |
1 | ||
| G3830-47060 |
ZVW35 |
1 | ||
| G920N - COVER SUB-ASSY, HV BATTERY, UPPER NO.2 | ||||
| G920N-47060 |
ZVW35 |
1 | ||
| G9285G - LABEL, HV BATTERY INFORMATION, NO.1 | ||||
| G9285-47060 |
ZVW35 |
4 | ||
| G9289A - LABEL, BATTERY CAUTION | ||||
| G9569-47070 |
ZVW35 |
4 | ||
| G9289E - LABEL, BATTERY CAUTION, NO.2 | ||||
| G9569-47080 |
ZVW35 |
4 | ||
| G9289F - LABEL, BATTERY CAUTION, NO.3 | ||||
| G9569-47090 |
ZVW35 |
4 | ||
| G92Q1 - PANEL, HV BATTERY SHIELD, NO.1 | ||||
| G92Q1-47040 |
ZVW35 |
1 | ||
| G92Q5 - REINFORCEMENT, HV BATTERY SHIELD, NO.2 | ||||
| G92Q5-47010 |
ZVW35 |
3 | ||
| G92Q5 - REINFORCEMENT, HV BATTERY SHIELD, NO.2 | ||||
| G92Q5-47010 |
ZVW35 |
3 | ||
| G92Q5 - REINFORCEMENT, HV BATTERY SHIELD, NO.2 | ||||
| G92Q5-47010 |
ZVW35 |
3 | ||
| G92R3 - BRACKET, HV BATTERY REAR SHIELD, NO.1 | ||||
| G92R3-47020 |
ZVW35 |
1 | ||
| G92Y1 - CABLE, HV BATTERY PACK, NO.1 | ||||
| G92Y1-47030 |
ZVW35 |
1 | ||
| G92Y2 - CABLE, HV BATTERY PACK, NO.2 | ||||
| G92Y2-47020 |
ZVW35 |
1 | ||
| G92Y3 - CABLE, HV BATTERY PACK, NO.3 | ||||
| G92Y3-47020 |
ZVW35 |
2 | ||
| G92Y3 - CABLE, HV BATTERY PACK, NO.3 | ||||
| G92Y3-47020 |
ZVW35 |
2 | ||
| G9569A - LABEL, LITHIUM ION BATTERY CAUTION | ||||
| G9569-47110 |
ZVW35..USA |
1 | ||
| Common parts | ||||
| 90178-05002 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91533-60610 | ||||
| 91551-A0822 | ||||
| 91553-80510 | ||||

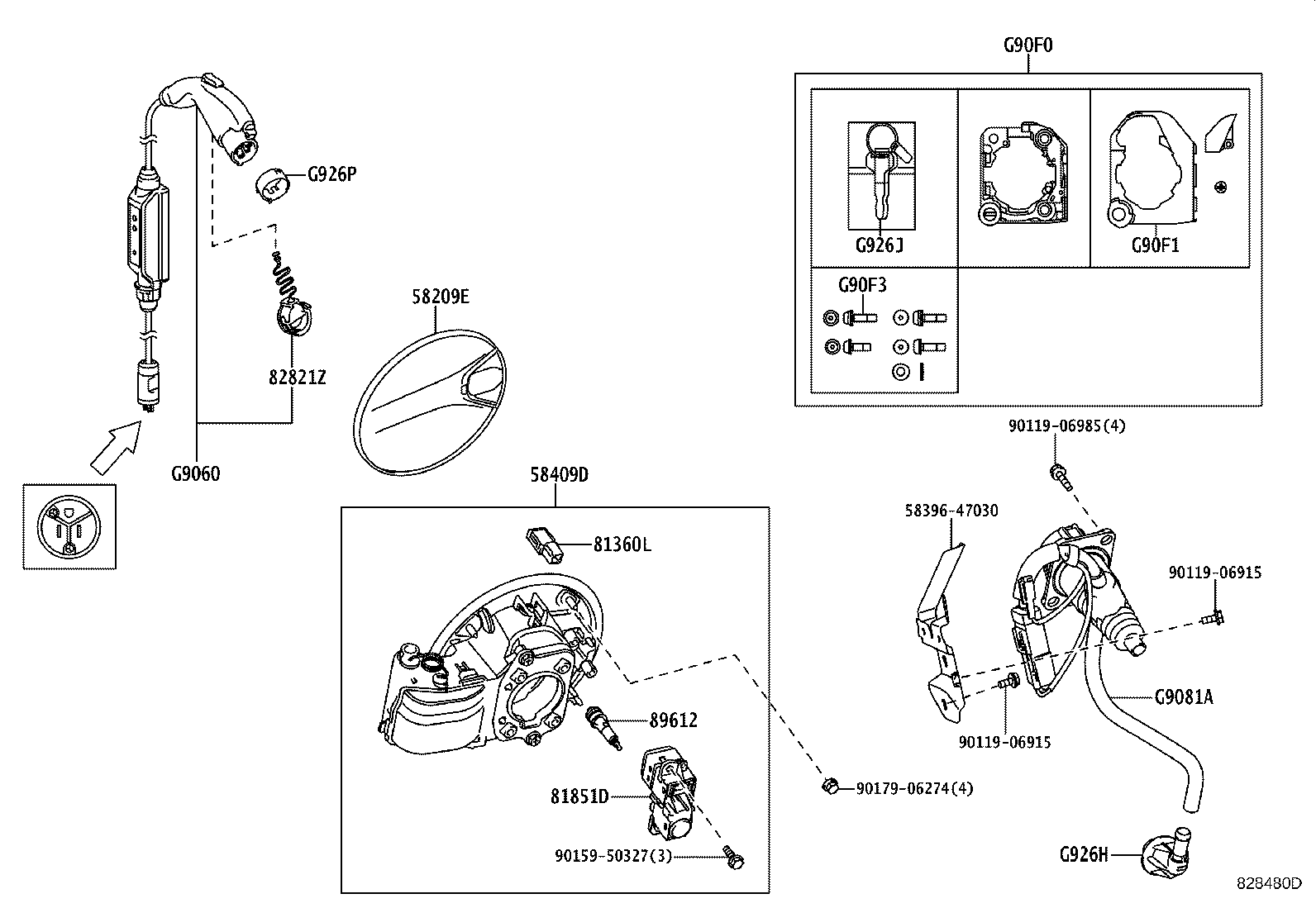

ILLUST NO. 2 OF 5(1201- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58209E - LID SUB-ASSY, BATTERY SERVICE OPENING | ||||
| 58209-47010P0 |
ZVW35 SILVER ME.,1F7 |
1 | ||
| 58209-47010S1 |
ZVW35 WHITE PEARL CS.,070 |
1 | ||
| 58209-47010S0 |
ZVW35 SUPER WHITE 2,040 |
1 | ||
| 58209-47010S3 |
ZVW35 TRUE BLUE M.M.,8W1 |
1 | ||
| 58209-47011P3 |
ZVW35 ABYSS GRAY ME.,8V1 |
1 | ||
| 58209-47010S2 |
ZVW35 FROSTY GREEN MC.,781 |
1 | ||
| 58209-47011S2 |
ZVW35 FROSTY GREEN MC.,781 |
1 | ||
| 58209-47011S0 |
ZVW35 SUPER WHITE 2,040 |
1 | ||
| 58209-47010P3 |
ZVW35 ABYSS GRAY ME.,8V1 |
1 | ||
| 58209-47011P0 |
ZVW35 SILVER ME.,1F7 |
1 | ||
| 58209-47011S1 |
ZVW35 WHITE PEARL CS.,070 |
1 | ||
| 58209-47011S3 |
ZVW35 TRUE BLUE M.M.,8W1 |
1 | ||
| 58409D - LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING | ||||
| 58409-47020 |
ZVW35 |
1 | ||
| 81360L - LAMP ASSY, SPOT | ||||
| 81360-47010 |
ZVW35 |
1 | ||
| 81851D - LAMP ASSY, INDICATOR | ||||
| 81850-47020 |
ZVW35 |
1 | ||
| 82821Z - COVER, CONNECTOR | ||||
| 82821-47250 |
ZVW35 |
1 | ||
| 89612 - BRACKET, PUSH SWITCH | ||||
| 89612-47020 |
ZVW35 |
1 | ||
| G9060 - CABLE ASSY, ELECTRIC VEHICLE CHARGER | ||||
| G9060-47190 |
ZVW35..USA |
1 | ||
| G9081A - CABLE, ELECTRIC VEHICLE CHARGER | ||||
| G9081-47030 |
ZVW35 |
1 | ||
| G90F0 - LOCK ASSY, CABLE ELECTRIC VEHICLE CHARGER | ||||
| G90F0-47020 |
ZVW35 ELECTRIC CABLE LOCK-WITH |
1 | ||
| G90F1 - COVER SET, CABLE ELECTRIC VEHICLE CHARGER LOCK | ||||
| G90F1-47010 |
ZVW35 ELECTRIC CABLE LOCK-WITH |
1 | ||
| G90F3 - FASTENER SET, CABLE ELECTRIC VEHICLE CHARGER LOCK | ||||
| G90F3-47010 |
ZVW35 ELECTRIC CABLE LOCK-WITH |
1 | ||
| G926H - GROMMET, EV CHARGER | ||||
| G926H-47010 |
ZVW35 |
1 | ||
| G926J - KEY, CABLE EV CHARGER LOCK | ||||
| G926J-47020 |
ZVW35 |
1 | ||
| G926P - RETAINER, EV CHARGE CONNECTOR | ||||
| G926P-47010 |
ZVW35 |
1 | ||
| Common parts | ||||
| 58396-47030 | ||||
| 90119-06915 | ||||
| 90119-06985 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
